The Y-Drive Assembly
7-42 DSX™ System Service Manual
7.5.8 Replacing the Idler Pulley
The Idler Pulley is made from two flanged bearings (Part No. 322000801) as shown in
Figure 7-50. To remove the bearing, unscrew the M3 x 6 cap head screw and flat washer.
When replacing the bearings, use Loctite 222 and secure the screw.

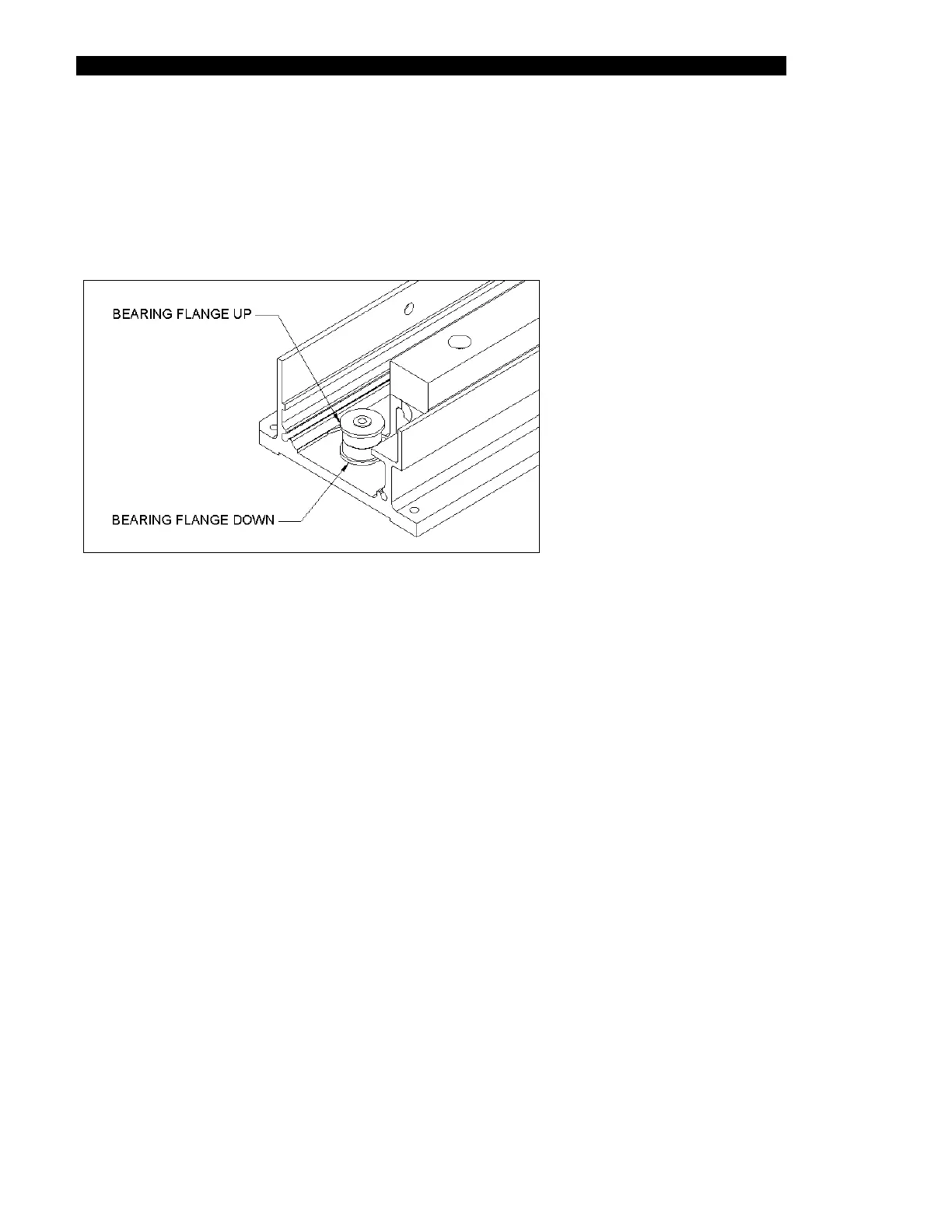

Figure 7-50 Replacing the Idler Pulley
