Removing External Components
DSX™ System Service Manual 11-13
11.3.3 The Front Bezel
The Front Bezel can be removed from the chassis by unscrewing 4 M3 x 8mm socket head
cap screws. (Figure 11-5).

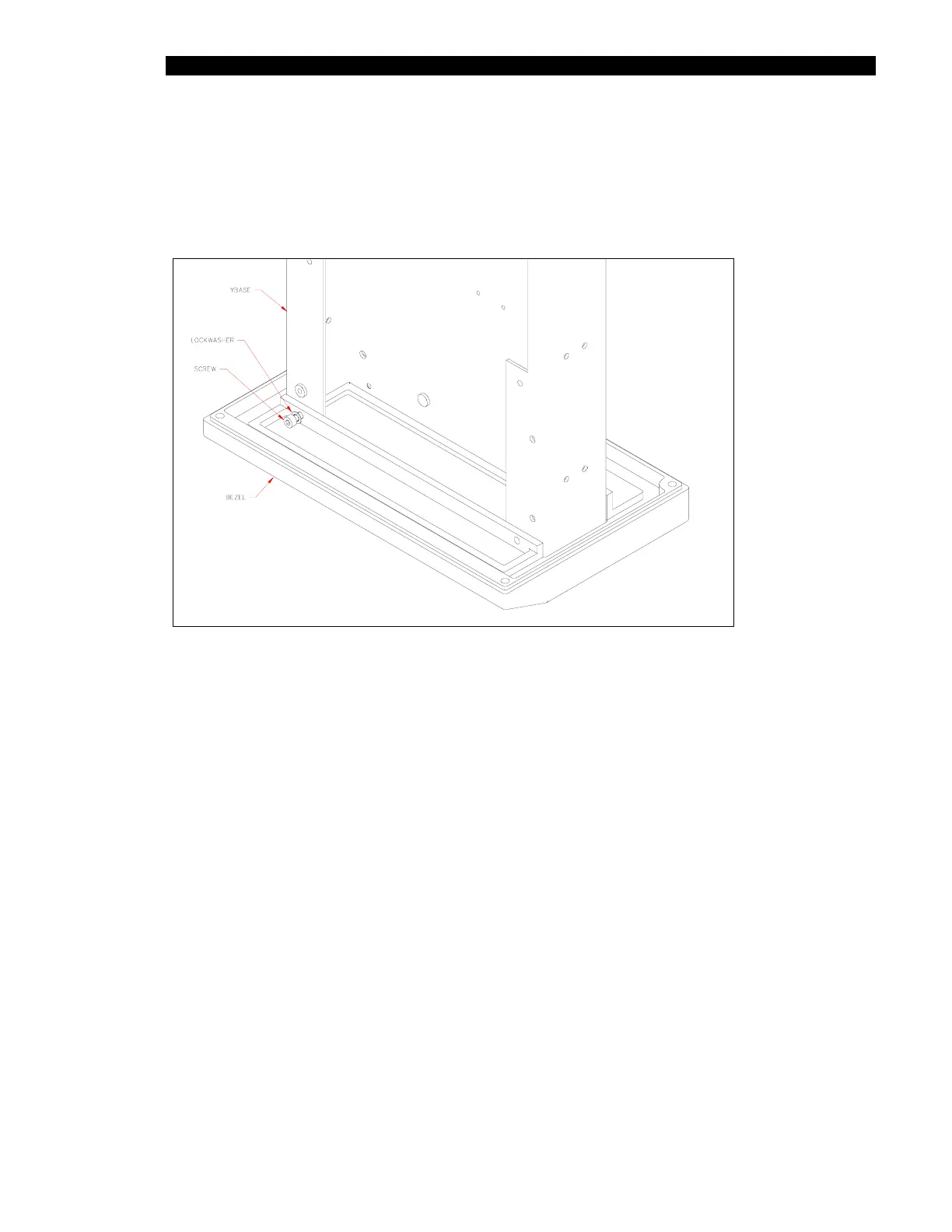

Figure 11-5 Removing the Front Bezel
To reattach the bezel to the chassis, use 4 M3 x 8mm socket head cap screws and M3
washers. Insure that the flat washer is against the bezel, not the lock washer.
