9.4.8 Replacement of Lower Heater Assembly

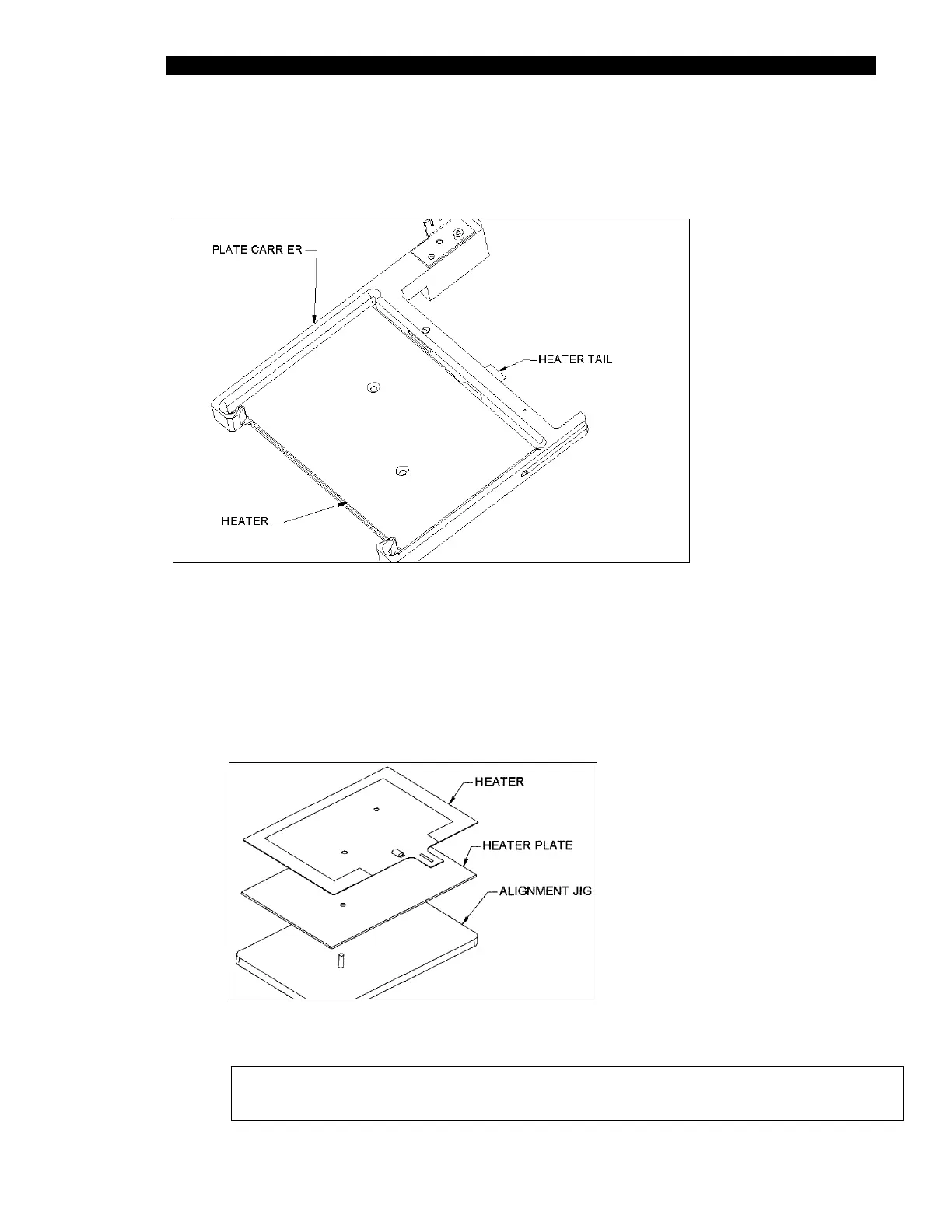

The lower heater assembly is mounted to the plate carrier as shown in Figure 9-21.
Figure 9-21 Lower Heater Assembly
To Replace the Lower Heater Assembly:
1 Attach adhesive backed heater foil (Part No. 24000740) to the heater plate (Part
No. 22000910 using the alignment jig (IMFIX0001). The heater foil should be
attached to the surface opposite the countersunk mounting holes as shown in
Figure 9-22.
Figure 9-22 Attaching Heater Foil to Heater Plate
Note: Remove all adhesive from the plate carrier. If you are reusing the heater
plate, make sure that all old adhesive is removed from the plate.
