Repairing/Replacing Internal Components
9-22 DSX™ System Service Manual

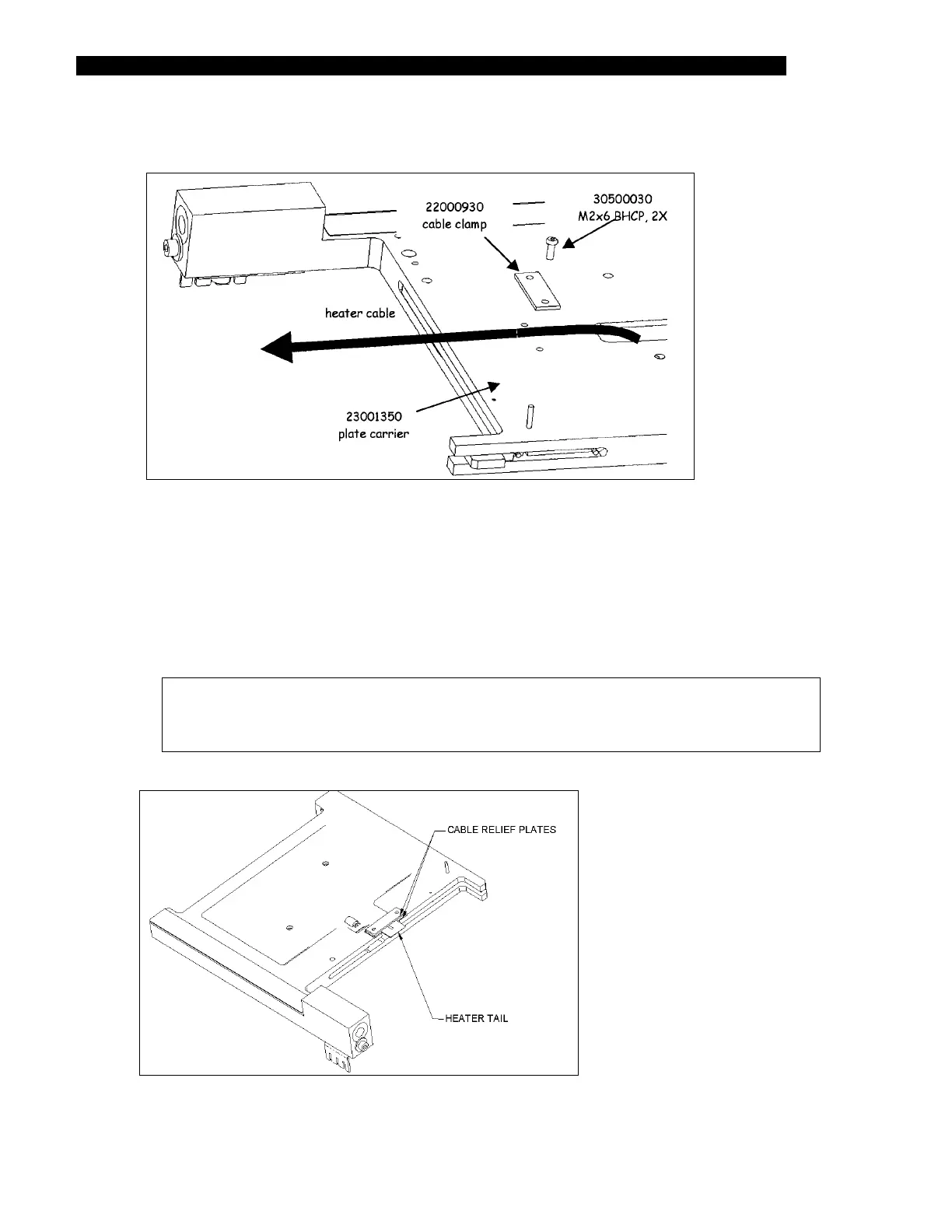

2 Slide the heater cable through the slot in the plate carrier (Figure 9-23).
Figure 9-23 Routing the Heater Cable
3 Attach the heater to the plate carrier using the adhesive backed section of the
heater pad (Figure 9-24).
4 Secure the heater cable to the plate carrier by sandwiching two heater wire
clamps (22000930), one below the wire and one above the wire, using two M2x6
button head screws and Loctite 222 (Figure 9-23).
Note: The cable should be flat, with minimal slack between the heater and
the heater clamps. If reusing the original clamps, ensure the sharp edges
are facing away from the heater cable.
Figure 9-24 Plate Carrier/Heater
