Repairing/Replacing Internal Components
11-44 DSX™ System Service Manual
11.4.24 Separating the Lower Block Components
To Separate the Lower Block Components:
1 Unscrew the 6-M2 x 8mm button head screws holding the assembly together,
separate the various lens components (Figure 11-40).
Note: Use care in handling or cleaning the plastic lens strip. It is very
susceptible to scratches.
2 Replace/Clean components as required.

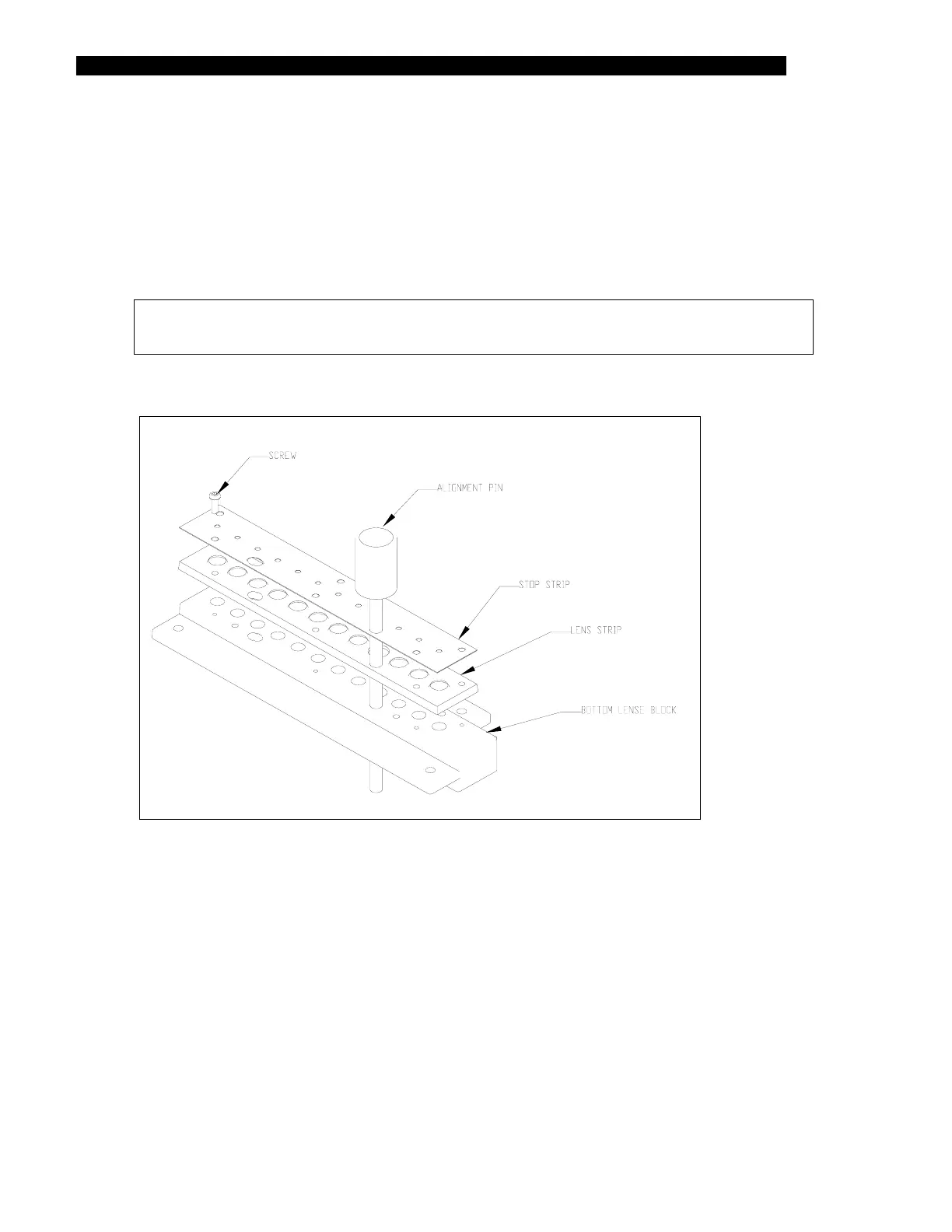

Figure 11-40 Optical Block Components
