7.6.3 Replacing the Encoder
The encoder is mounted on the idler pulley as shown in Figure 7-53. To remove the encoder,
loosen the wheel using an Allen wrench. When the encoder is sufficiently loosened, it is
easily removed.

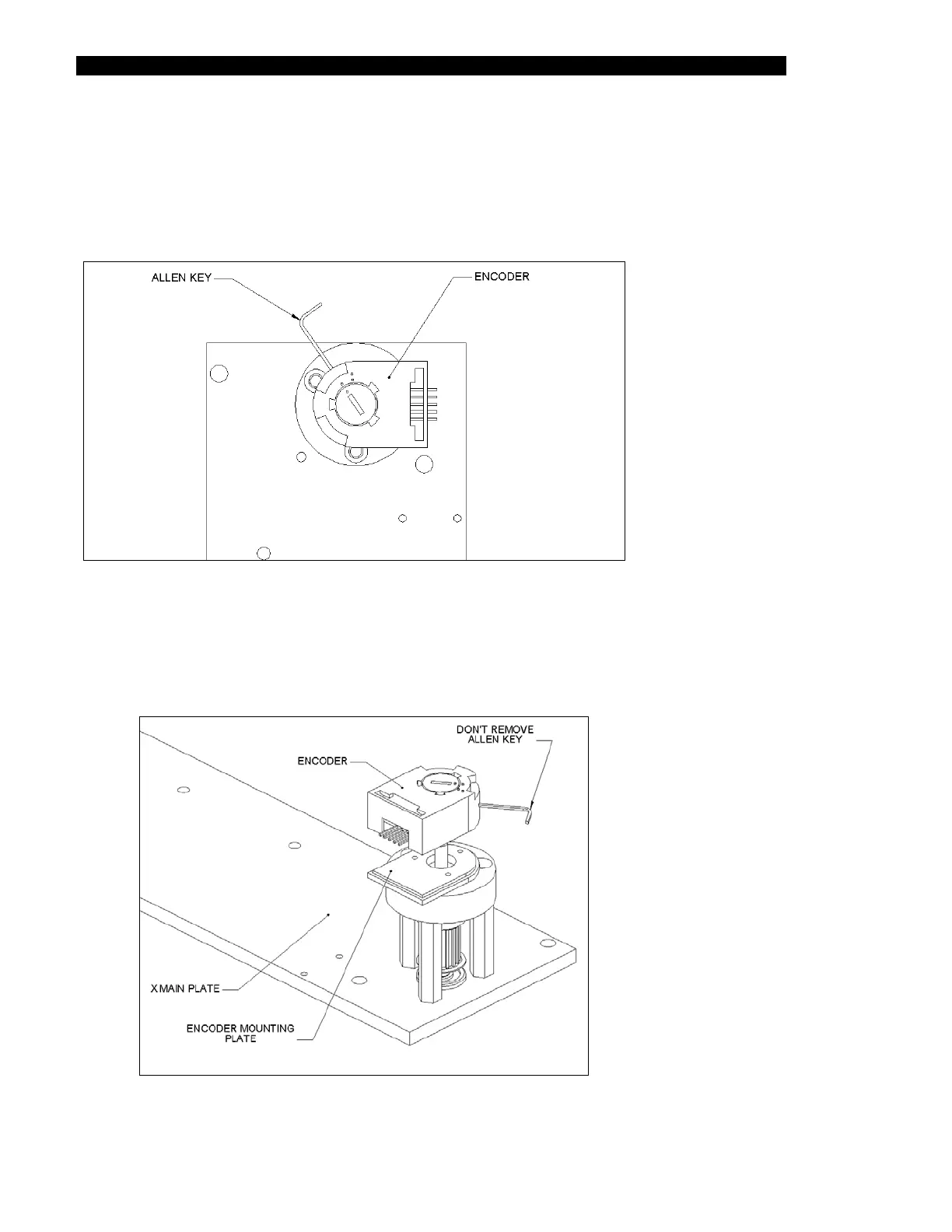

Figure 7-53 X-Drive Encoder
To Reinstall the Encoder
1 Place the encoder on top of the encoder mounting plate as shown in Figure 7-54.
It will snap into place.
Figure 7-54 Mounting the X-Encoder
