Repairing/Replacing Internal Components
13-18 DSX™ System Service Manual
13.4.2 Replacing the Pinch Valve
1 Remove the Valve Mounting Assembly, which is mounted to the front cover of the
Washer Module (Figure 13-9). To remove the assembly, remove the four M3
Nyloc Nuts and M3 washers.
Valve Mounting
Panel Assembly
Main Assembly

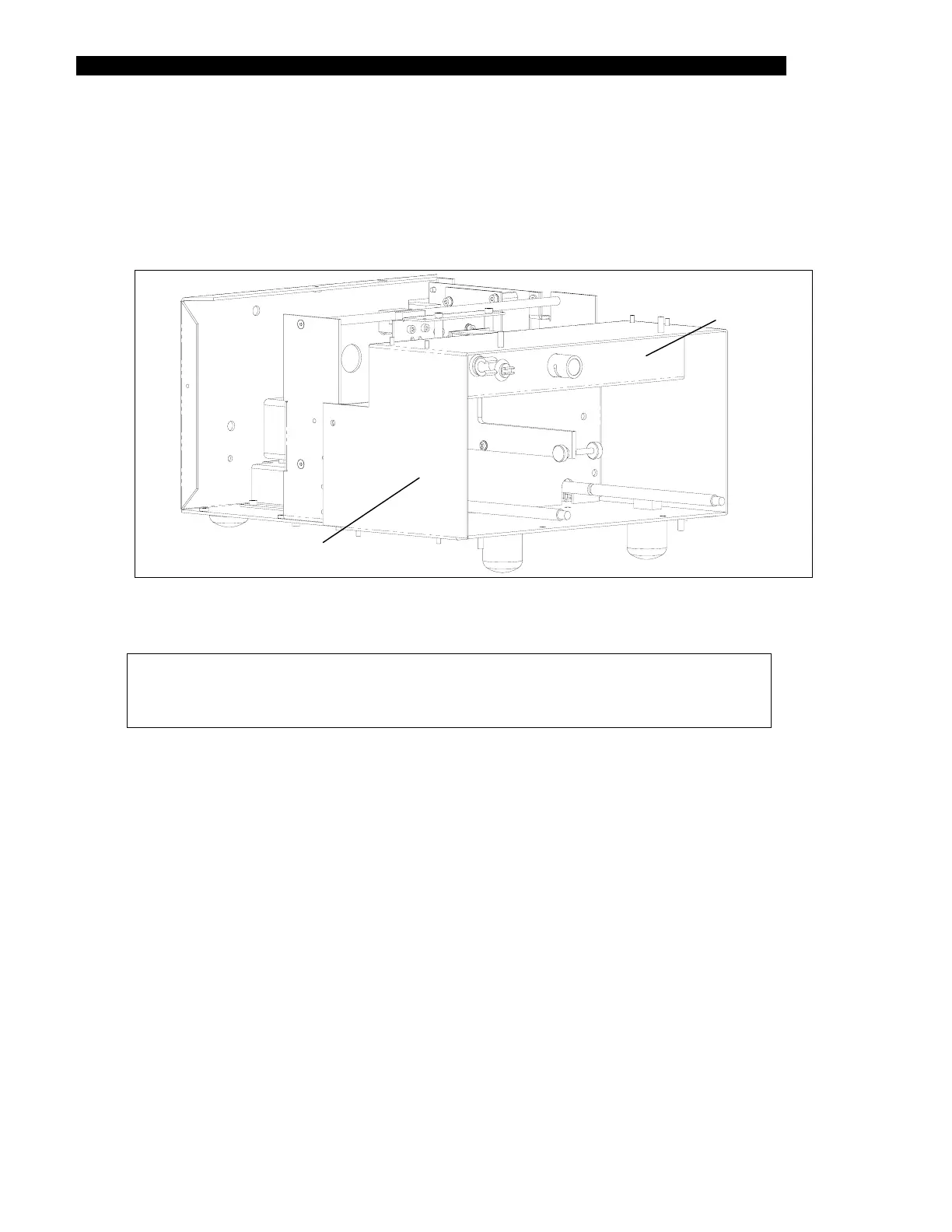

Figure 13-9 Valve Mounting Panel Assembly
Note: When reinstalling the assembly, take care that the wires are not
pinched between the panels and secure the pinch valve wires to the tyrap
base on the side plate.
To Next Page
