Replacing the Pipette Assembly
7-4 DSX™ System Service Manual
7.3 Replacing the Pipette Assembly
To Remove the Pipette Assembly (Field Replacement):
1 Remove the Pipette Cover (Part No. 204010400) by removing the five M3 x 6
BHCS screws and five M3 shakeproof washers (Figure 7-1).
(For clarity, the Z-Arm
and Y-Arm covers are
shown removed)

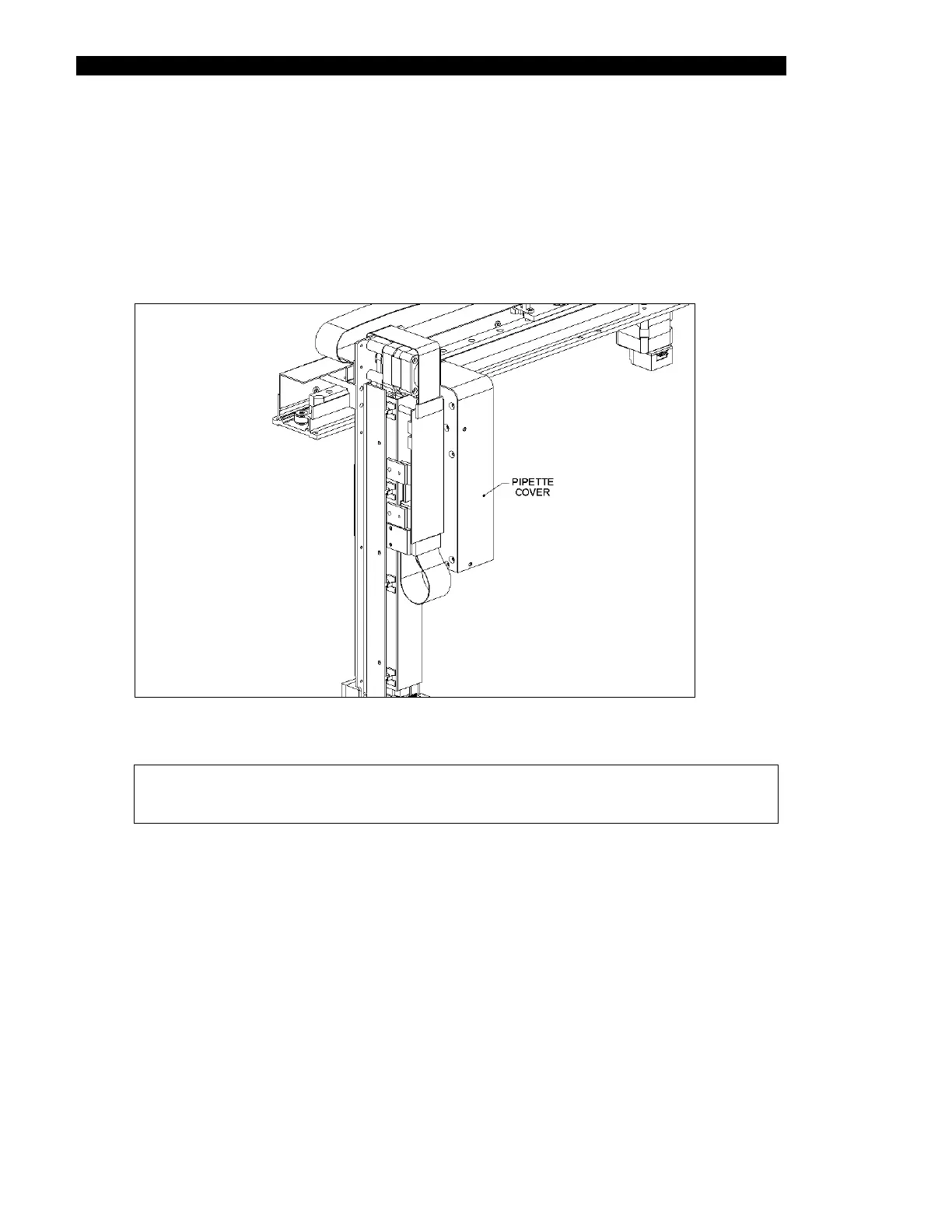

Figure 7-1 Removing the Pipette Cover
Note: When replacing the cover, make certain that the cover is flush with
respect to the mount.
