Replacing Components - Wash X/Z Subassembly
13-26 DSX™ System Service Manual
13.5.3 Replacing the Wash X-Drive Timing Belt
The X-Drive Timing Belt is used to drive the X-Drive assembly. It is installed between the
X-Drive Motor and the Idler bearings (Figure 13-19).

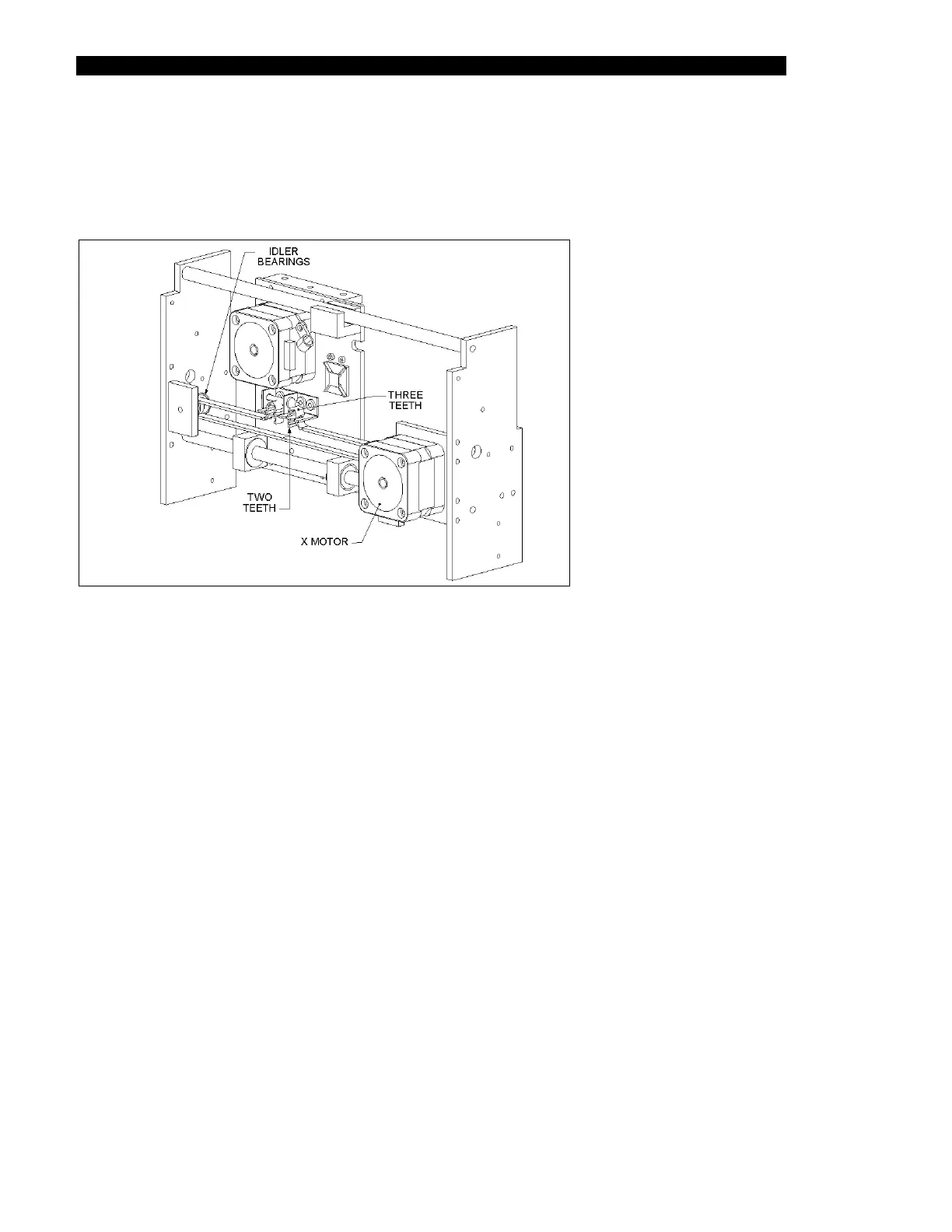

Figure 13-19 X-Drive Belt Installation
To Remove the Belt:
1 Unscrew the adjustment screw.
To Install a New belt:
1 Place the belt into the belt brackets, with two teeth protruding from the ends and
three teeth in each loop.
2 Place the belt around the Motor and Idler.
3 Tighten the adjustment screw on the belt bracket.
4 Tighten the screws that connect the belt bracket to the Z-Plate.
