Replacing Components - Wash X/Z Subassembly
DSX™ System Service Manual 13-25
3 Remove the four M3 x 8mm Flathead screws that mount the motor to the bracket
(Figure 13-17).

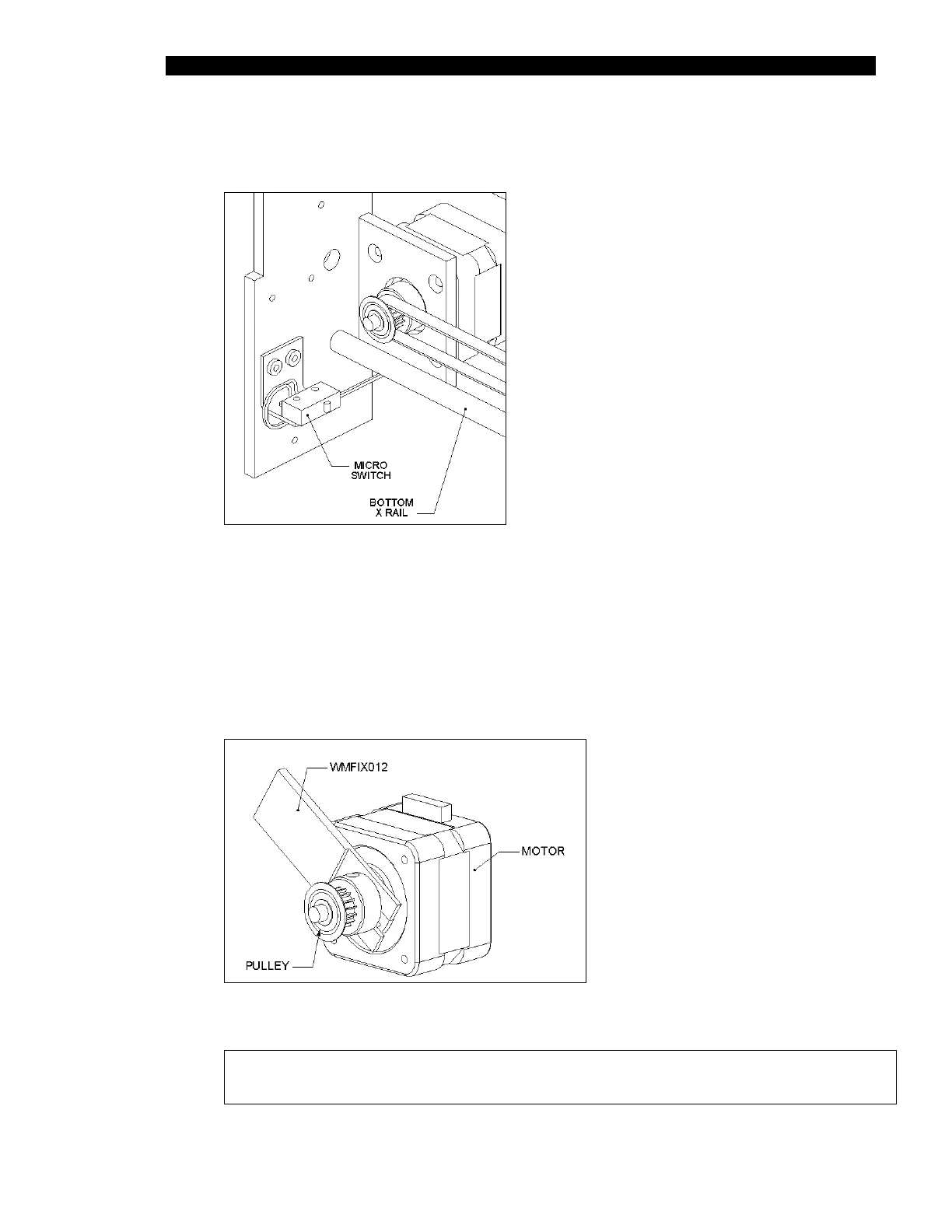

Figure 13-17 X Motor Mounting Detail
4 Remove the Pulley from the motor by loosening the M4 x 6mm setscrew.
The motor is replaced in the reverse order. To correctly position the pulley, use the Washer X
Motor Pulley Height Setting Jig (Part No. WMFIX012) as shown in Figure 13-18. If the jig is
not available, place the pulley 1.65 mm from the motor. After you have set the pulley, tighten
the setscrew using Loctite 222.
Figure 13-18 Positioning the Pulley on the X-Drive Motor
Note: After you have remounted the motor, it may be necessary to reset the
tension on the timing belt.
