Repairing/Replacing Internal Components
9-14 DSX™ System Service Manual
9.4.4 Removing the Position Sensor
The position sensor (Part No. 15000430) is mounted on the base as shown in Figure 9-13 and
is removed by unscrewing the two M3 x 6mm Socket Cap screws and lock washers.

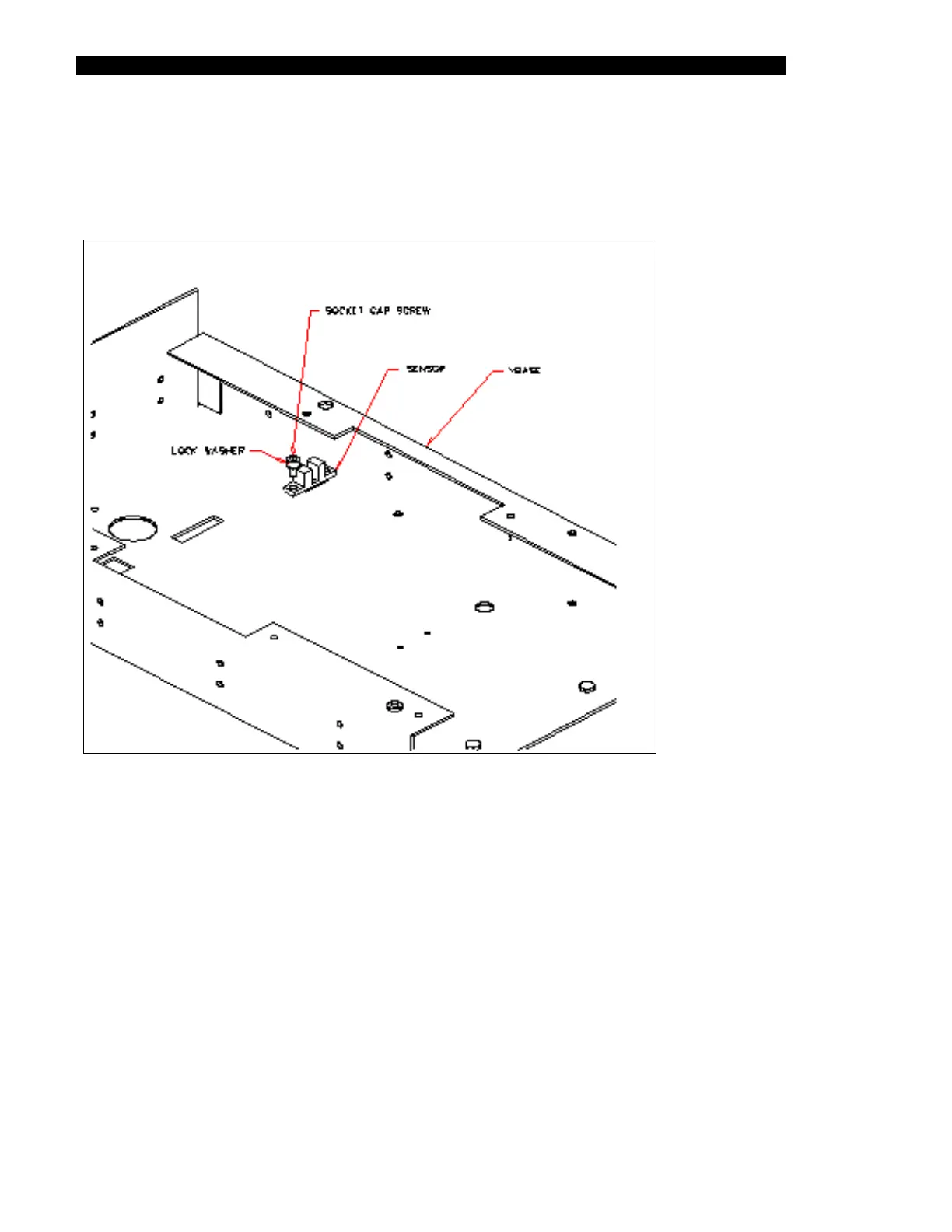

Figure 9-13 Position Sensor
