Dynex DSX - Replacing the y Sensor Assemblies; Replacing the Bearings

Replacing Components - Y-Drive Assembly
DSX™ System Service Manual 13-35
13.6.3 Replacing the Y Sensor Assemblies
The Y sensor assemblies (Part No. 15000790) are attached to the base using four M3 x 8 Cap
Head Screw and four M3 Nylok Nuts from the underneath as shown in Figure 13-28.

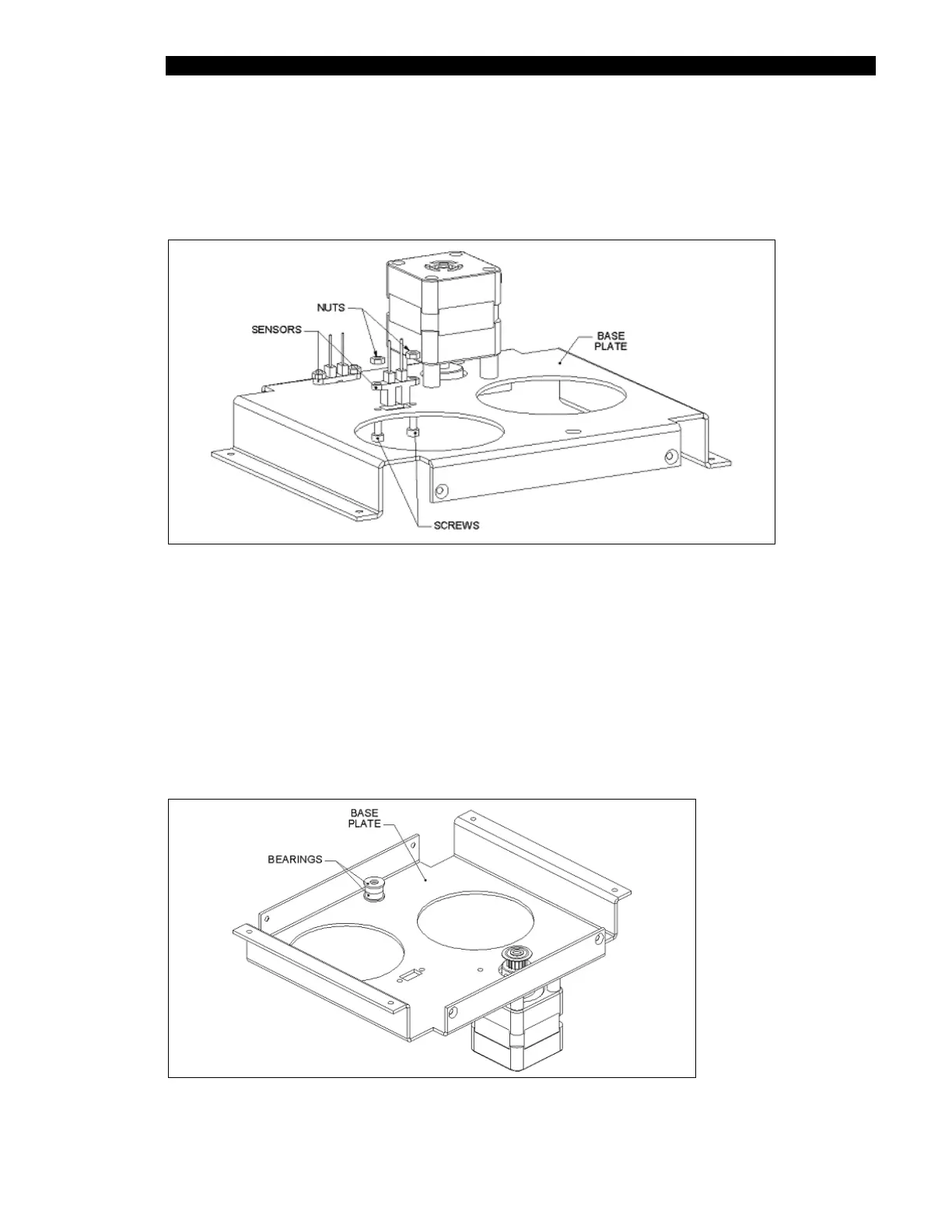

Figure 13-28 Mounting the Sensor Assemblies
13.6.4 Replacing the Bearings
The bearings are installed on the idler support pin on the baseplate as shown in Figure 13-29.
The bearings are affixed to the shaft using a M3 Flat Washer and a M3 x 6 Button Head
Screw. The bearing can be removed by removing the screw and washer.
When replacing the bearings, place two bearings (Part No. 322000801) with the flanges
opposed.
Figure 13-29 Y Bearings.
