Dynex DSX - The Bottom Cover

Removing External Components
9-4 DSX™ System Service Manual
9.3.2 The Bottom Cover
The bottom cover (Part No. 22000780) can be removed by removing the 3 M3 x 6mm button
head screws and then lifting the bottom cover off (Figure 9-2).

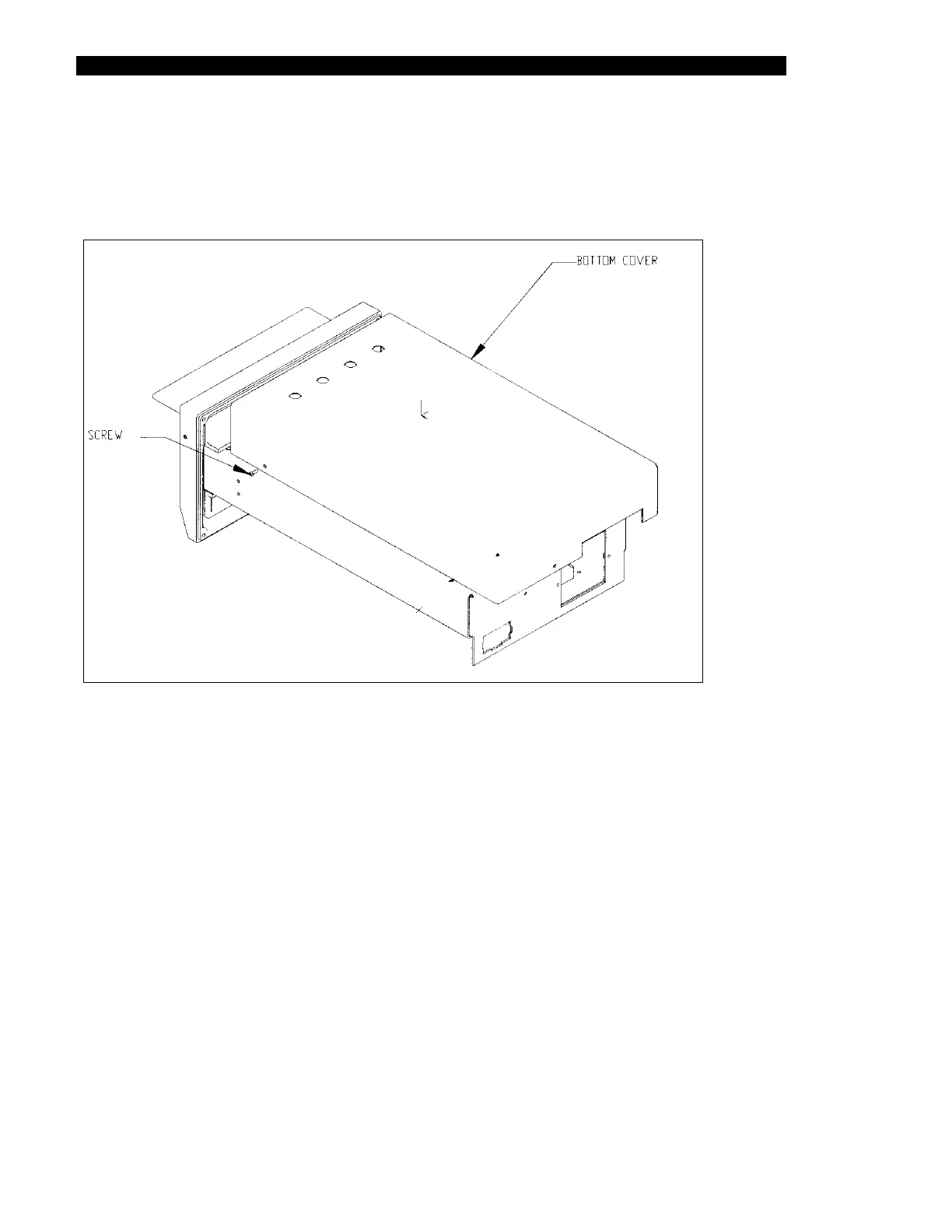

Figure 9-2 Removing the Bottom Cover
