Major Components of the System
1-12 DSX™ System Service Manual
1.4.9 System Cover
The System Cover (Figure 1-12) encloses the workspace and pipette module. The cover must
be closed during operation to prevent the pipette module from accidentally contacting an
operator or bystander. An electrical interlock prevents operation of the pipette module when
the system cover is open. To close the cover, push down on the handle until the cover is fully
closed and locked. The system cover rests on the front extrusion when it is fully closed.
Front
Extrusion
System
Cover

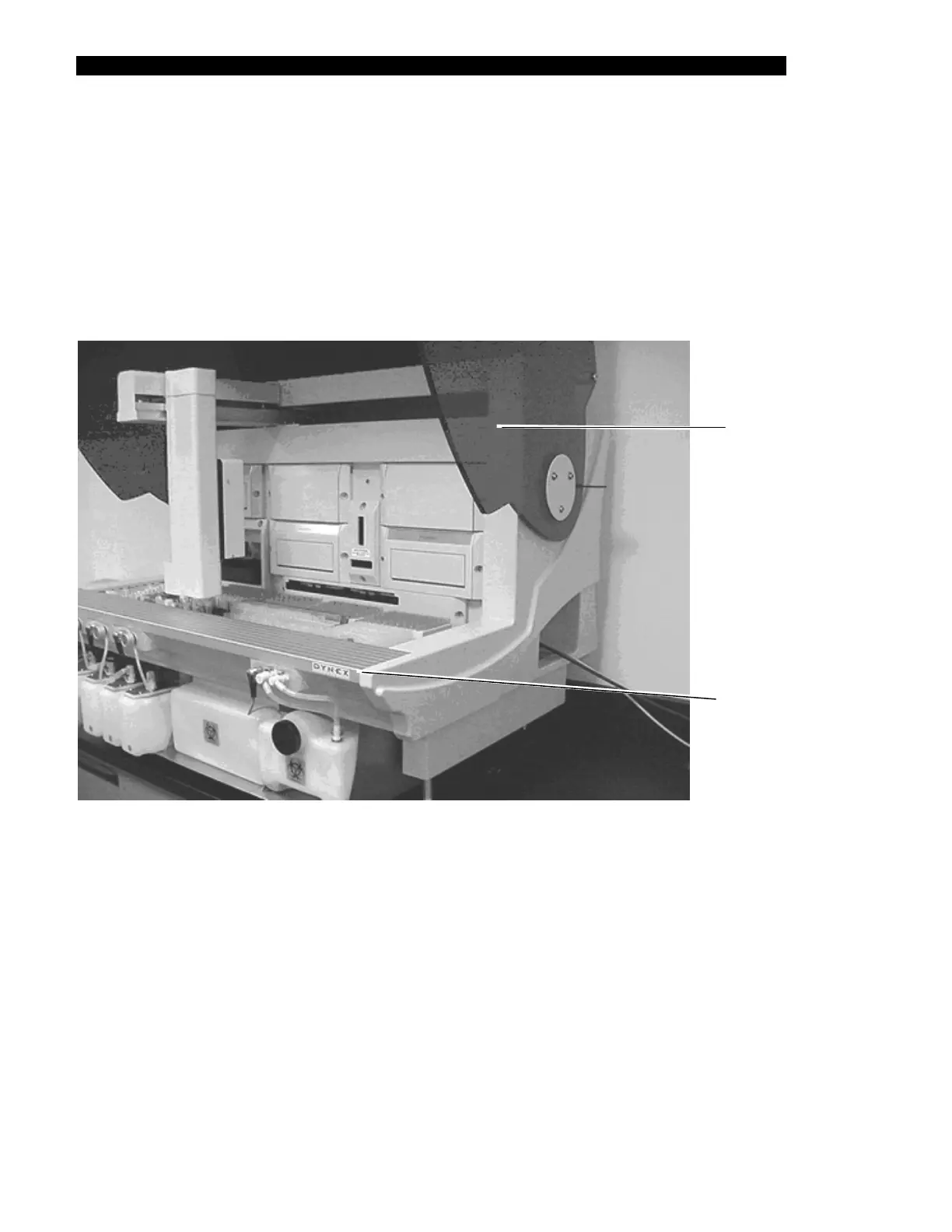

Figure 1-12 System Cover
