Manual Control Operations
DSX™ System Service Manual 5-11
5.2.9 Advanced
The Advanced test selection is used to send primary commands to a module to check more
specialized operations on a customized basis. When Advanced is selected, the Send
command(s) operation is presented (Figure 5-12).

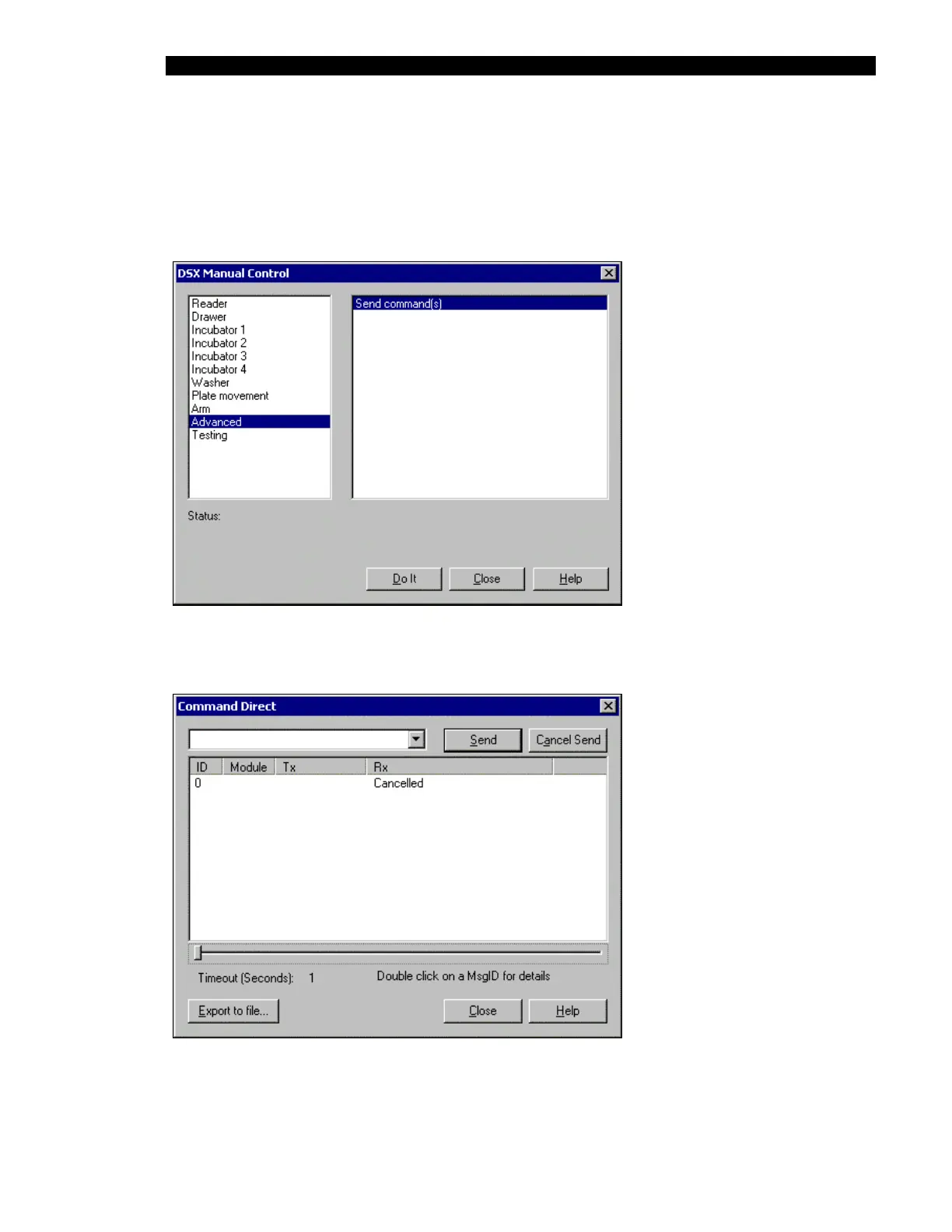

Figure 5-12 DSX Manual Control Dialog Box (Advanced Selection)
When you press the Do It button, the Command Direct dialog box (Figure 5-13) is presented.
Figure 5-13 Command Direct Dialog Box
The Command Direct option is reserved for in-house service personnel.
