Repairing/Replacing Internal Components
11-28 DSX™ System Service Manual
11.4.9 Removal/Replacement of the Fiber Optic Bundle
1 Remove the two M3 x 22mm socket head cap screws, M3 lock washers and
gently pull the optic bundle from the optics cube.
2 Remove the four M3 x 20 socket head cap screws and M3 lock washers that
secure it to the lower block.

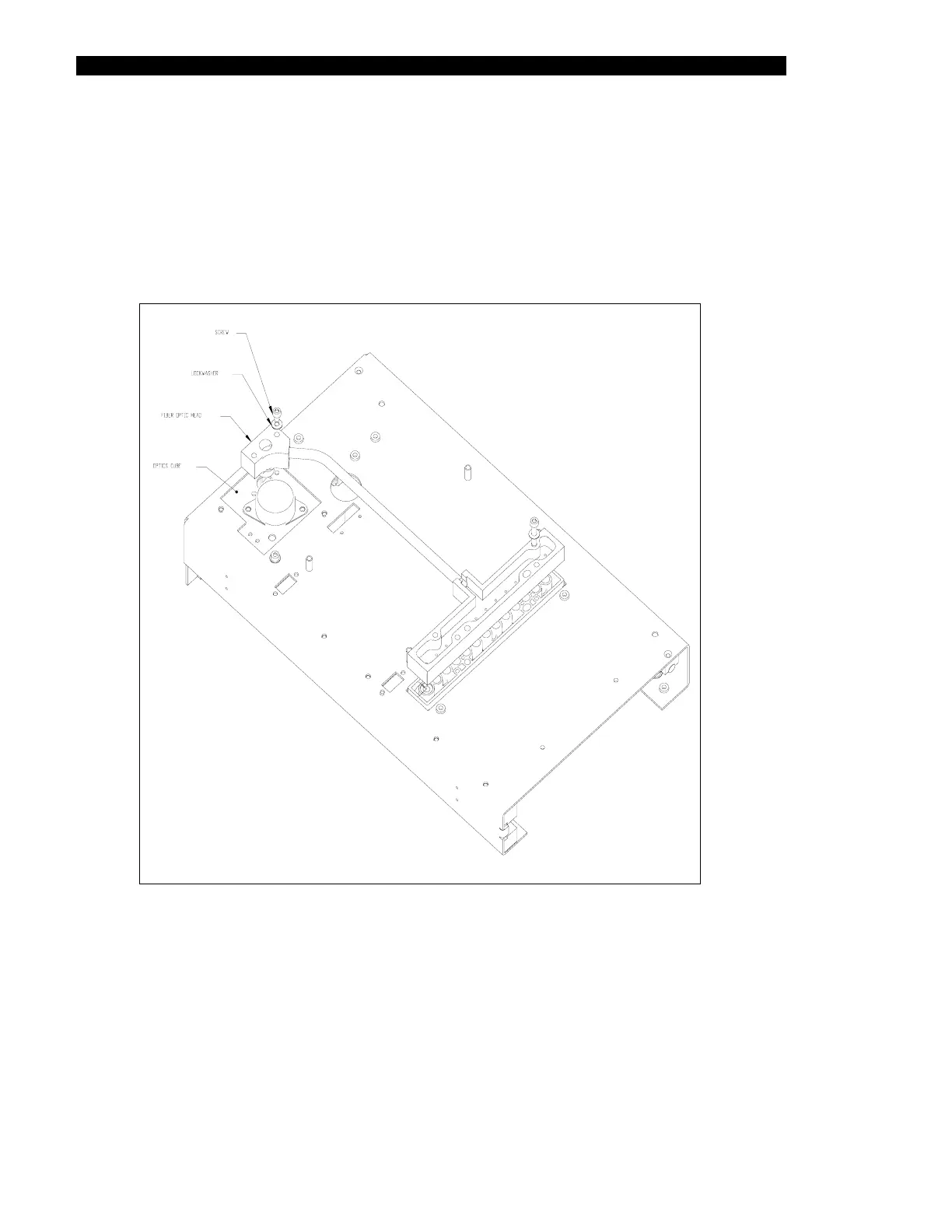

Figure 11-23 Fiber Optic Bundle
