Repairing/Replacing Internal Components
9-12 DSX™ System Service Manual
Preparing the Plate Assembly:
1 Attach adhesive backed heater foil (Part No. 24000740) to the heater plate (Part
No. 22000910 using the alignment jig (IMFIX0001). The heater foil should be
attached to the surface opposite the countersunk mounting holes as shown in
Figure 9-10.

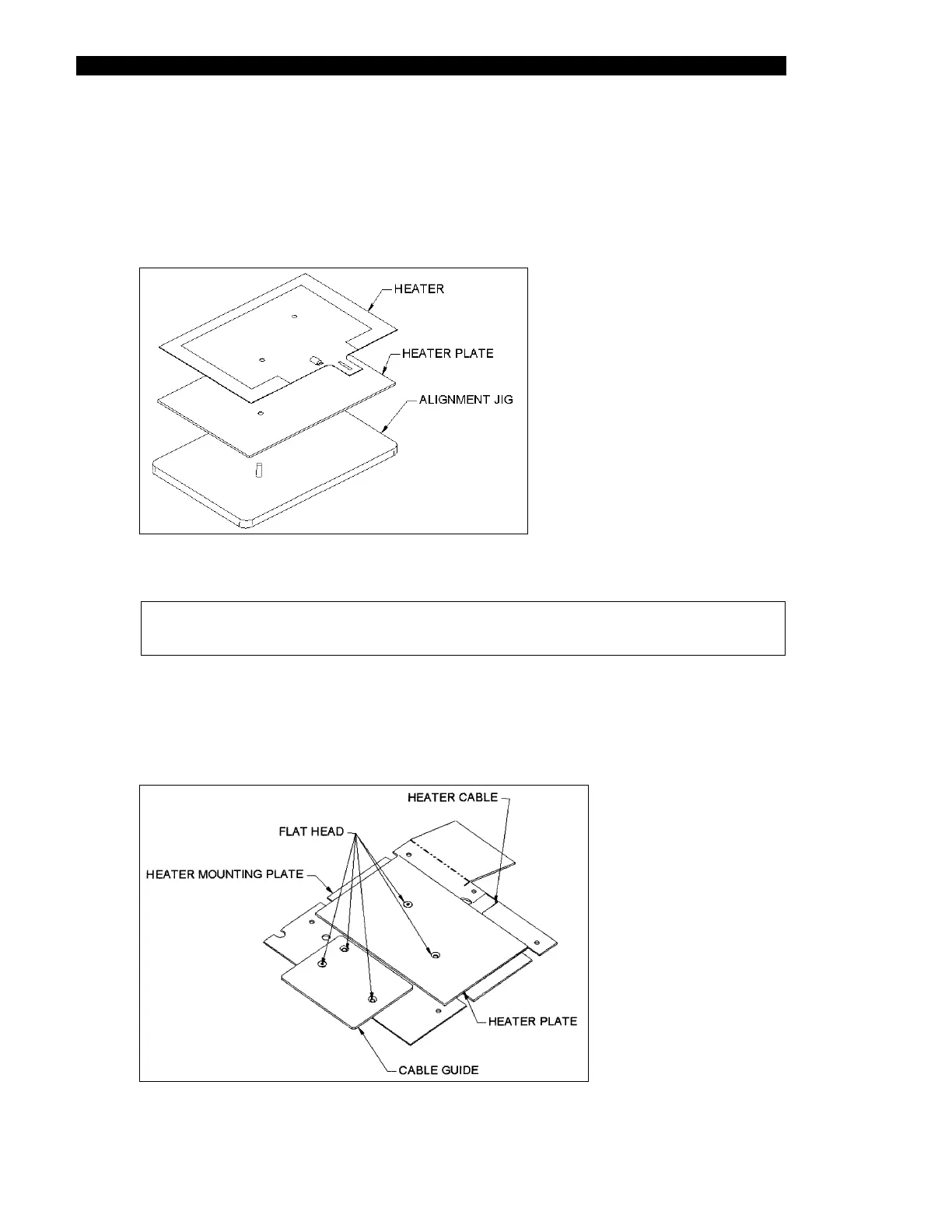

Figure 9-10 Attaching Heater Foil to Heater Plate
Note: If you are reusing the heat plate and/or the heater mounting plate,
make sure that all old adhesive is removed from the plate.
2 Attach the heater plate assembly to the heater mounting plate (Part No.
22000920) as shown in Figure 9-11.
3 Place the assembly in position and tighten the screws (Figure 9-9).
Figure 9-11 Mounting Heat Plate Assembly to Heater Mounting Plate
