Cabling
DSX™ System Service Manual 17-19

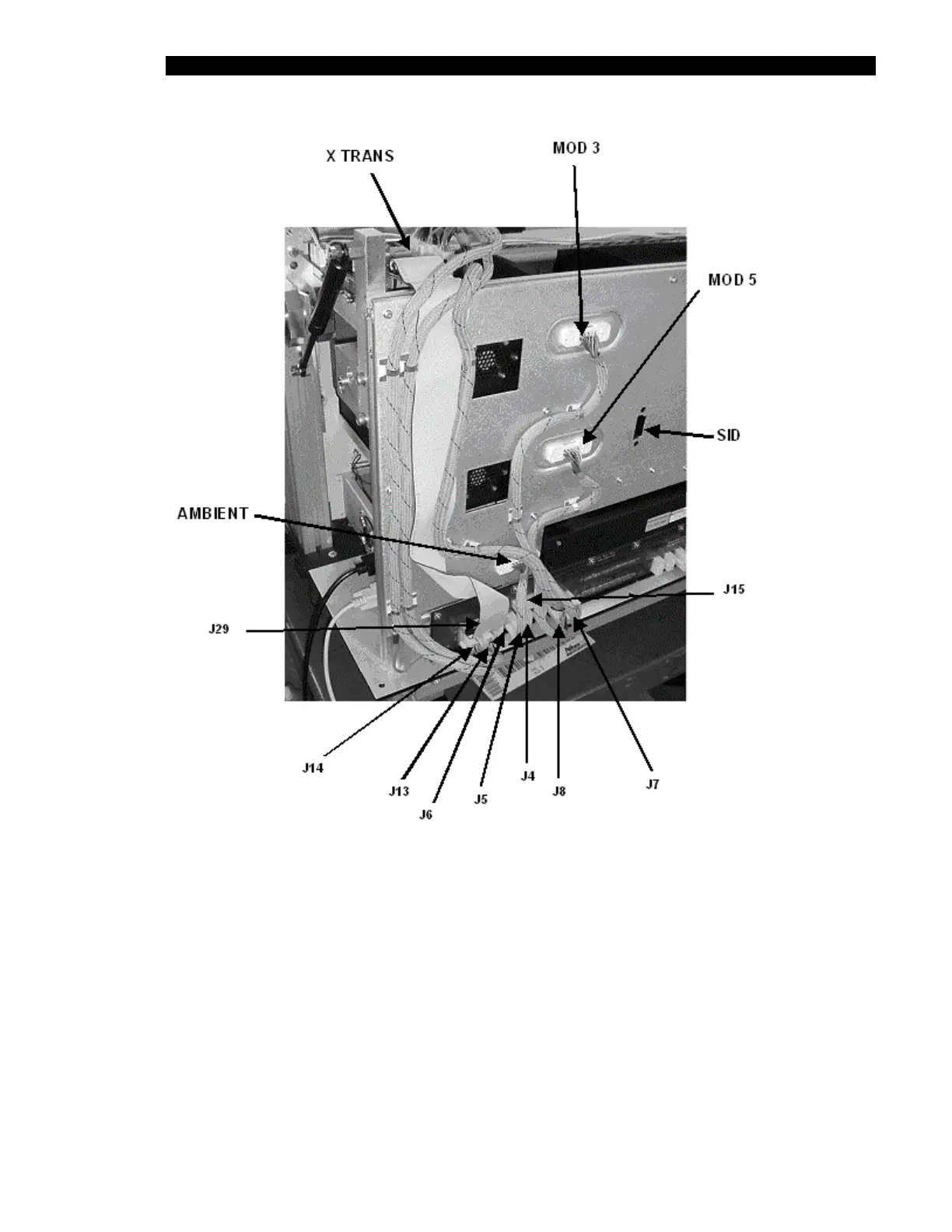

Figure 17-17 Back Panel Cabling - Panel 2
Cable (Part No. 15001090) is connected from J3 on X-transition to J14 on back plane
board
•
•
•
•
•
Cable (Part No. 15001090) is connected from J2 on X-transition to J13 on back plane
board
Cable (Part No. 15001100) is connected from J15 on X-transition to J15 on back plane
board
Ribbon cable (Part No. 15001110) is connected from J7 of X-transition board to J29
on back plane board
Cable (Part No. 150001040) is connected from ambient hole to J3 of back plane board
