The X-Drive and Y-Drive
6-6 DSX™ System Service Manual

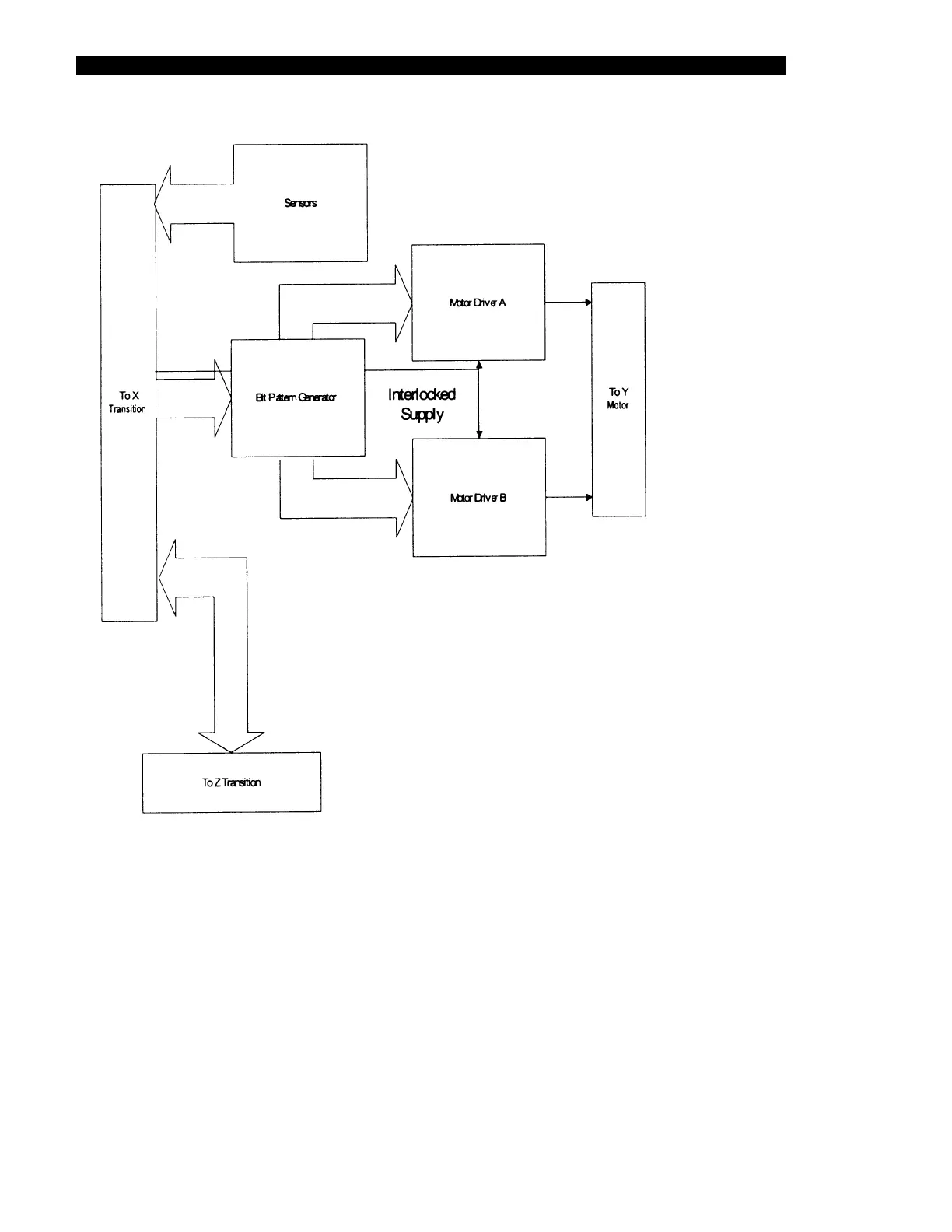

Figure 6-4 Y Motor Drive Transition
Components of the XY module are located in different parts of the system, as follows:
1 The main XY module circuit is in the Electronics pod assembly (EPOD).
2 The X-Drive board is near the X motor at the right-hand end of the X track.
3 The X encoder and X home sensor are both at the left-hand end of the X track.
4 The Y-Drive board, the Y motor, the Y home sensor and the Y encoder are all
grouped together and are located at the end of the Y arm above the X track.
