The Z-Drive and the Pipette Module
6-12 DSX™ System Service Manual

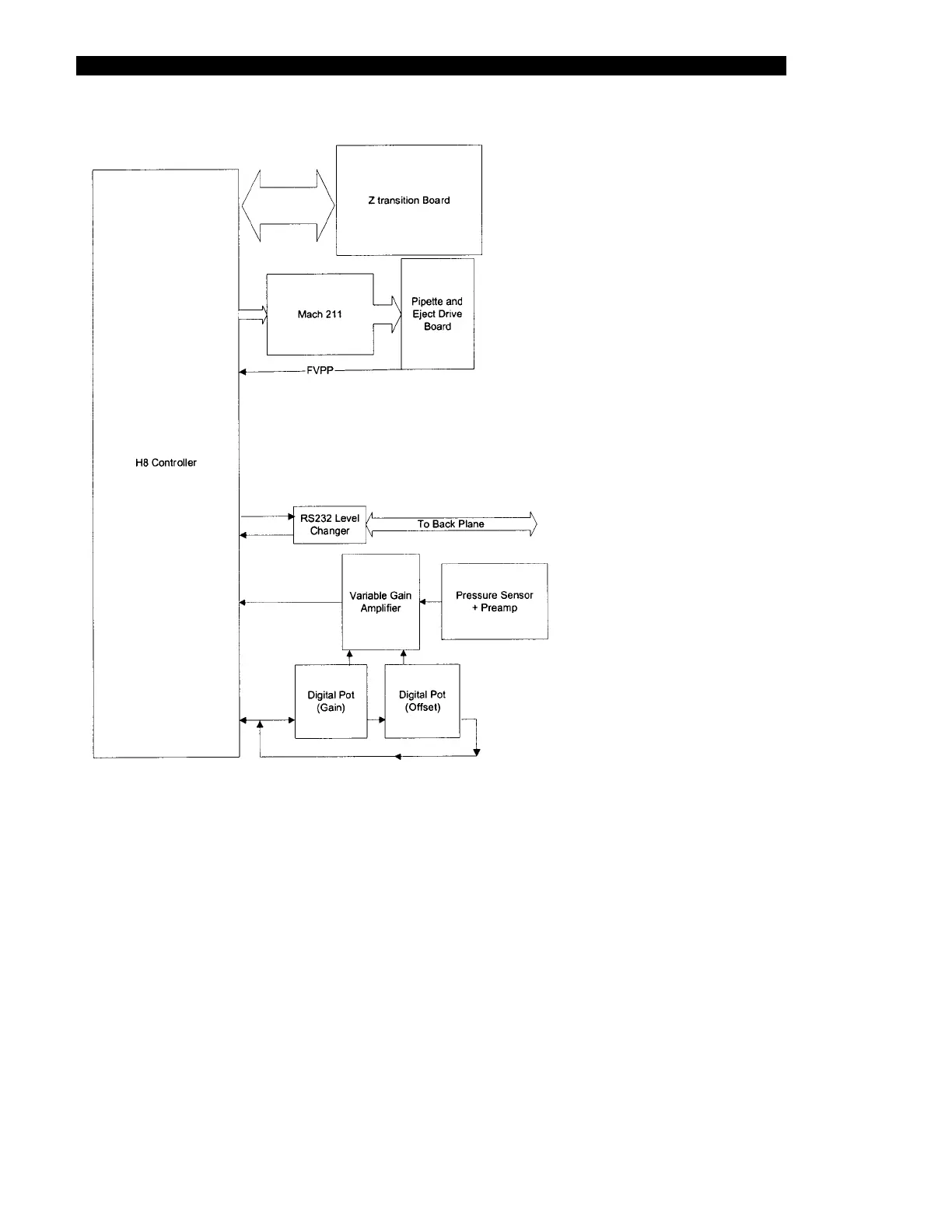

Figure 6-8 XY Control Diagram
Components of the Z Pipette module are located in different parts of the DSX, as follows:
The Z Pipette main board is in the Z module, which is moved up and down the Z arm. •
•
•
The Z-Drive board and Z home sensor are near the Z motor at the top end of the Z
track.
The Z encoder is at the bottom of the Z track.
