4-1-2. Other Menu Access Buttons

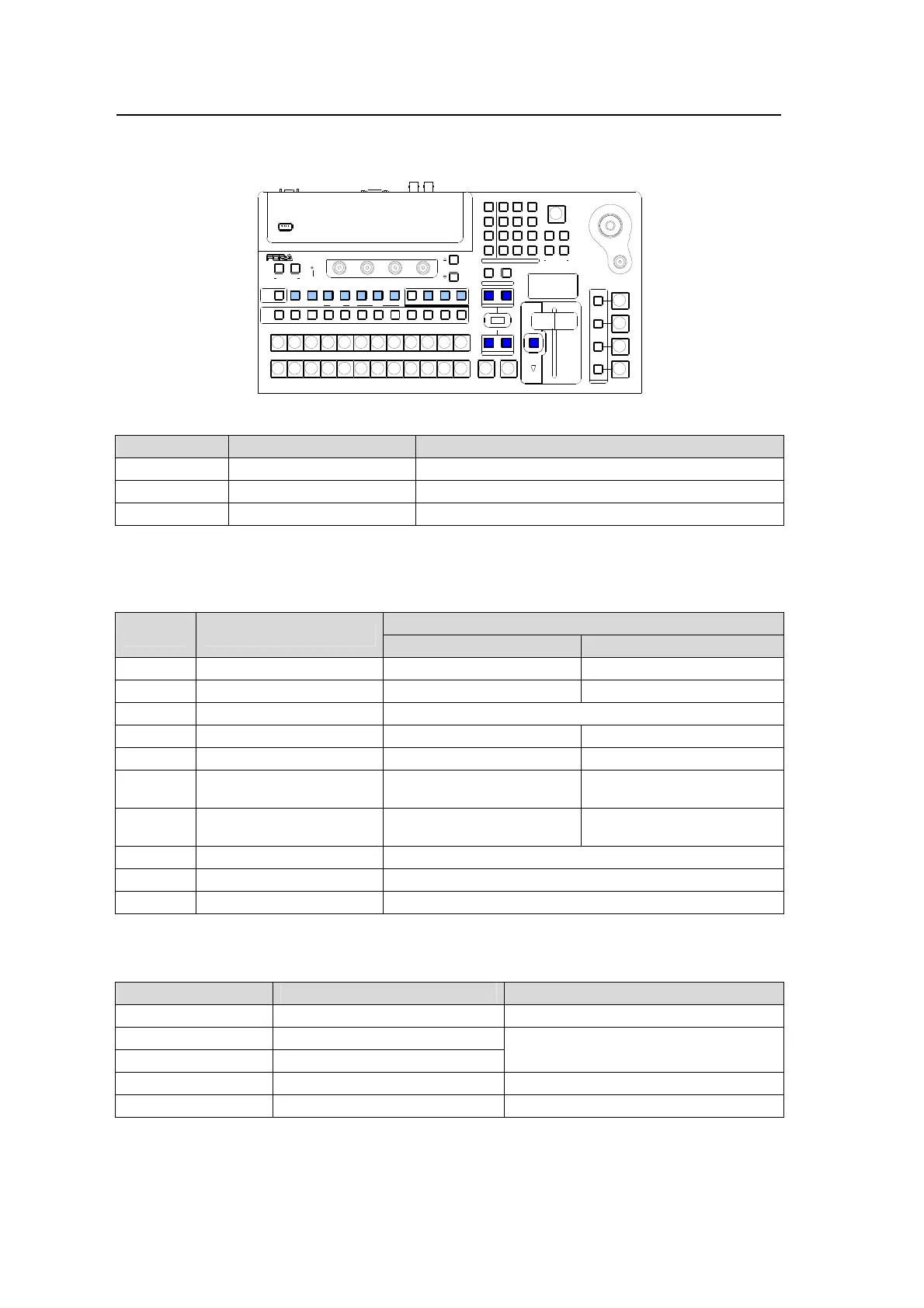

By pressing once or twice specific buttons in the bus select section or transition control
section, the related menus can be displayed. (See the figure and the table below.)
 PGM/PST bus
Button Action Accessed Menu
MATT1-2 (*1) Pressing twice quickly [MATT1 COLOR] [MATT2 COLOR]
STL1-4 (*1) Pressing twice quickly [STILL]
SHIFT (*1) Pressing twice quickly [SETUP-INPUT-ASSIGN](4/4)
(*1) Note that MATT1, MATT2 and STILL1-4 buttons represent the bus buttons of PGM/PST and
KEY/AUX to which the MATT1, MATT2 and STILL1- STILL4 signals are respectively assigned.
(See section 5. "Input Signal.")
 BUS SELECT block
Button Action
Accessed Menu (*1)
When controlling M/E1: When controlling M/E2:
KEYER Pressing twice quickly [M/E1 KEY1- SETUP] [M/E2 KEY1-SETUP]
DSK Pressing twice quickly [M/E1 KEY2-SETUP] [M/E2 KEY2-SETUP]
MV Pressing twice quickly [SETUP-OUTPUT-MV1] (1/6)
P IN P 1 Pressing twice quickly [M/E1 KEY3-SETUP] [M/E2 KEY3-SETUP]
P IN P 2 Pressing twice quickly [M/E1 KEY4-SETUP] [M/E2 KEY4-SETUP]
PREV Pressing twice quickly
[SETUP-OUTPUT-
CLN/PREV](3/4)
[SETUP-OUTPUT-
CLN/PREV](4/4)
CLEAN Pressing twice quickly
[SETUP-OUTPUT-
CLN/PREV](1/4)
[SETUP-OUTPUT-
CLN/PREV](2/4)
AUX1 Pressing twice quickly [SETUP-OUTPUT-AUX XPT] (1/4)
AUX2 Pressing twice quickly [SETUP-OUTPUT-AUX XPT] (1/4)
AUX3 Pressing twice quickly [SETUP-OUTPUT-AUX XPT] (1/4)
(*1) The M/E1 or M/E2 control selection is made at the CONTROL item in the [SETUP-INPUT-
ASSIGN] menu.
 Transition Block
Button Action Accessed Menu
KEYER Pressing once [RATE-M/E]
BKGD Pressing once
[TRANS BKGD/BLK]
MIX Pressing once
FADER LIMIT Pressing once [TRANS LIMIT]
WIPE Pressing twice quickly [WIPE PATT]
User buttons can be assigned to specific menu pages and be used as menu shortcuts.
Refer to section 9. "USER Buttons" for details.
USB MEMORY
AUTO CUT
DSK
KEYER
P IN P
1
2
P IN P
(PUSH to DEF)
43
65
SIZE
NOR/REVREV
BKGD
WIPEMIX
F4
F3F2
F1
PAGE
USER BUTT ON
12
AUXP IN P
KEYER DSK
12123
PGM CLEANPRE V MV
234567891011121
PGM
PST
121110987654
POSITION
123
KEYER
MENU/DIRECT PAT T/EVENT/KEY PAD
KEY/AUX
FADER LIMIT
ALARM
ON AIR
USER BUTT ON
TRANS PREV
DIRECTION
NEXT TR ANSITION
PATTERN/RATE
TRANSITION T YPE
HVS-300H S
DIGITAL VIDEO SWITCHER
7/SET UP
4/WIPE
1
8/STILL
5/P in P
2/KEYER
9/FILE
6/MATT
3/DSK
BLACK
TRANS
MENU
DIRECT PATT
±/EVENT
CLR/TRANS RATE 0 /RECALL
. (DOT)
ENT/ STO RE
