FOR-A HVS-390HS - GPI in Connector

22

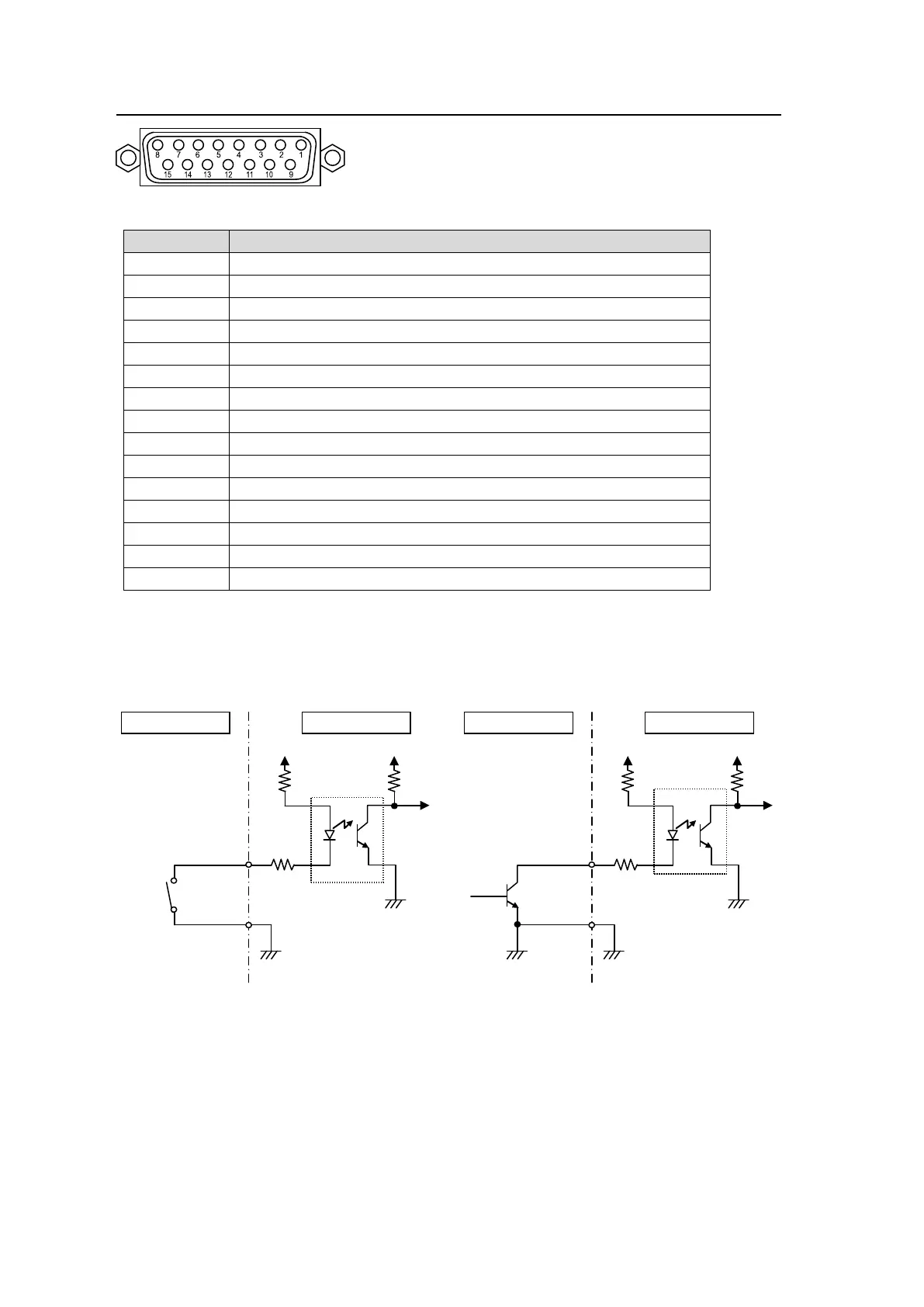

2-4-3. GPI IN Connector
 Pin Assignment Table
Pin No. Description
1
M/E1 BKGD AUTO TRANS (default setting)
2 M/E1 KEY1 AUTO TRANS (default setting)
3 M/E1 KEY2 AUTO TRANS (default setting)
4 M/E1 KEY3 AUTO TRANS (default setting)
5
M/E1 KEY4 AUTO TRANS (default setting)
6 M/E2 BKGD AUTO TRANS (default setting)
7
M/E2 KEY1 AUTO TRANS (default setting)
8 M/E2 KEY2 AUTO TRANS (default setting)
9 M/E2 KEY3 AUTO TRANS (default setting)
10 M/E2 KEY4 AUTO TRANS (default setting)
11
Not used
12 Not used
13
Signal ground
14 Signal ground
15 Signal ground
The pin assignment shown above is the factory default assignment. Pin assignments can be
changed via operational menus. See section 24-1-1 "GPI IN."
 GPI IN Circuit
15-pin D-sub (female)
with inch screws
HVS-390HS
VCC
VCC
External Device
Open collector
HVS-390HS
VCC
VCC
External Device
Switch or Relay
