15-4-2. On-air Tally
The tally indicates which video is currently On-air (output from the program) and which is set
to be the next output. The multiviewer can display two types of tally indicators: Frame and
Marker. You can use either or both at the same time.
(1) Display [SETUP - OUTPUT - MV1] menu PAGE 5.
(2) Select a tally indication. Frame (FRAME) and square (MARKER) markers can be
displayed at the same time.
OUTPUT : FRAME :MARKER : :KEY TLY: 5/6
MV1 TLY : =ON : =ON : : =OFF :
Setting Example

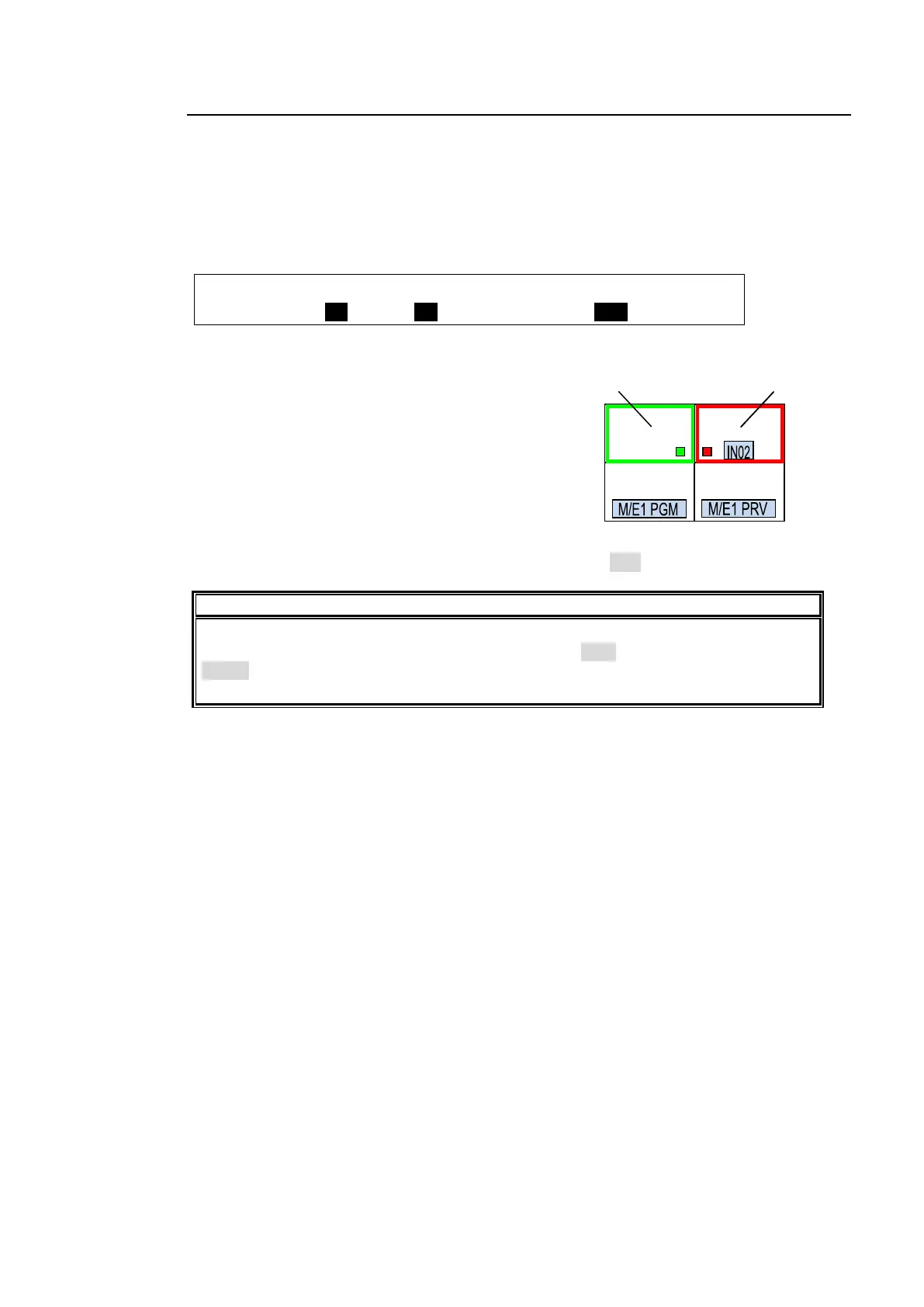

Here, we assume that IN02 is displayed
in the PGM screen and .IN01 is selected
on the PST bus.
The tally frame and marker are displayed
on the screen. (See the menu above.)
KEY TALLY
Note that the "Key-On tally" information is included in the tally data as factory default.
If you need only "Background -On" tallies, set KEY TLY to OFF.
The on-air tally indication (RED and GREEN) is linked to the tally color (TLY COL)
setting. For example, the PGM tally color is set to RED and the PST tally color to
NONE, green tally (next indication) is not di
splayed on the screen. (See section
24-2-1. "Tally Color Settings."
Red:
On-air indication
Green:
Next indication
To Next Page
