FOR-A HVS-390HS User Manual

33

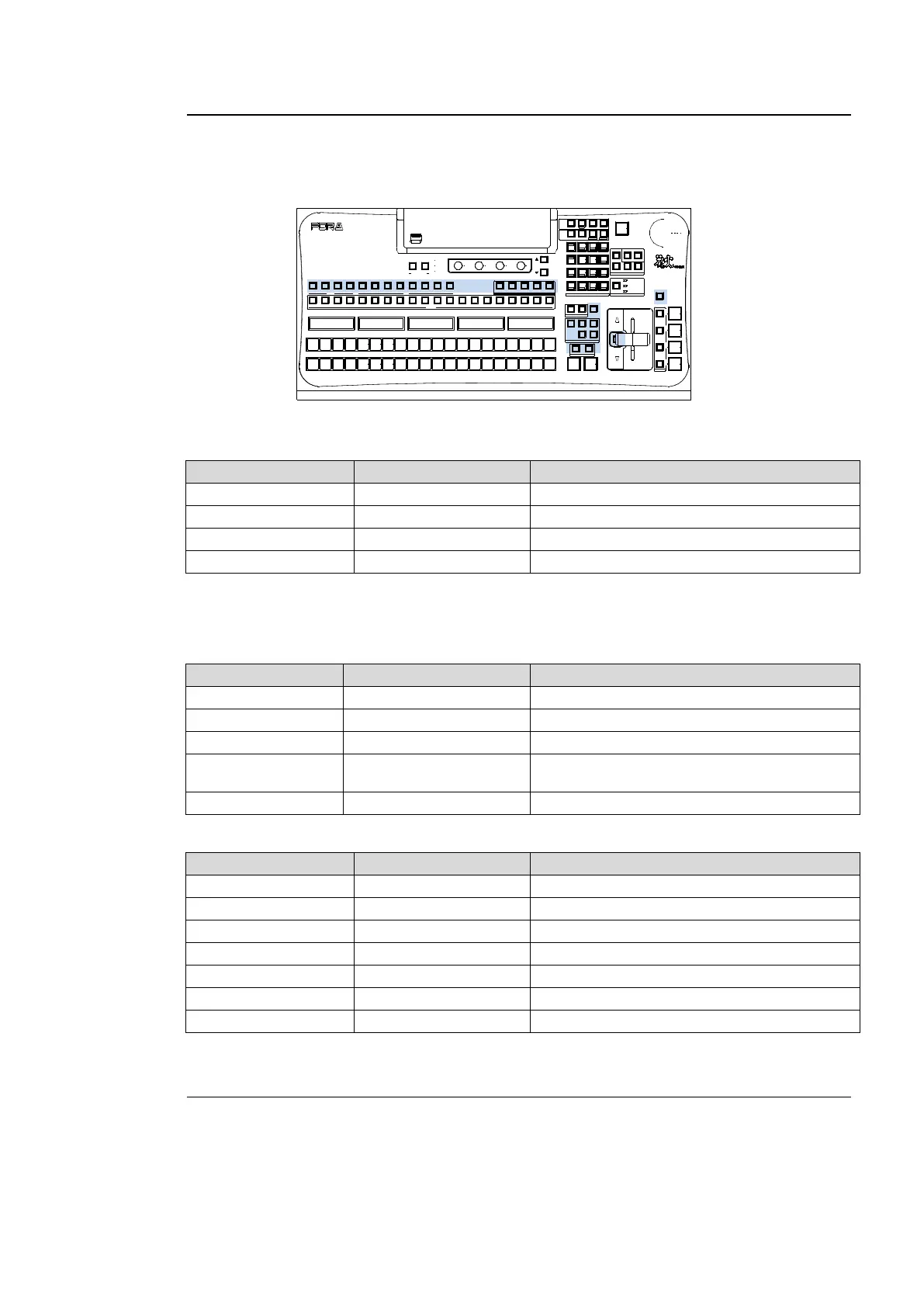

4-1-2. Other Menu Access Buttons
By pressing once or twice specific buttons in the bus select section or transition control
section, the related menus can be displayed. (See the figure and tables below.)
PGM/PST (M/E) bus block
Button Action Accessed Menu
MATT1 to 2 (*1) Pressing twice quickly [MATT] menu
STL1 to 4 (*1)
Pressing twice quickly
[STILL] menu
STK1 to 4 (*1) Pressing twice quickly [STILL] menu
SHIFT
Pressing twice quickly
[SETUP - INPUT - ASSIGN](6/6) menu
(*1) Note that MATT1-2 and STL1-4 and STK1-4 buttons represent the bus buttons assigned to
MATT1, MATT2 and STILL1 to STILL4, STILLKEY1 to STILLKEY4 signals respectively at the
M/E and KEY/AUX bus blocks. (Refer to section 5. "Video Sources.")
BUS SELECT and KEY/AUX blocks
Button
Action
Accessed Menu
KEY1 to 4 Pressing twice quickly [KEY(1, 2, 3, 4) SETUP] menu
MV1-2
Pressing twice quickly
[SETUP - OUTPUT - MV(1, 2)] menu
PREV Pressing twice quickly [SETUP - OUTPUT - CLN/PREV] PREV menu
CLEAN Pressing twice quickly
[SETUP - OUTPUT - CLN/PREV] CLEAN
menu
AUX1-8 Pressing twice quickly [SETUP - OUTPUT - OUT XPT] (1/4) menu
Transition Block
Button Action Accessed Menu
BKGD Pressing twice quickly [TRANS](1/4) menu
KEY1 to 4 Pressing twice quickly [TRANS](2/4) menu
MIX Pressing twice quickly [TRANS](1/4) menu
WIPE Pressing twice quickly [WIPE PATTERN] menu
FADER LIMIT
Pressing once
[TRANS LIMIT] menu
TRANSITION RATE Pressing once [TRANS](1/4) menu
PATTERN Pressing once [WIPE PATTERN] menu
4-1-3. USER Button (Menu Shortcut)
User buttons can be assigned to specific menu pages and used as menu shortcuts.
Refer to section 22. "USER Button" for details.
‚c‚u‚d
USB MEMORY
AL ARM
POWER1
POWER2
USER BUTTON
1 2
F1
F2 F3
F4
PAGE
PGM PREV CL EAN MV1
201918171615141312111098
KEY/AUX
AUX
87654321432
KEYER
1
1 2 3 4 5 6 7
PGM
1 2 3 4 5 6 7
PST
201918171615141312111098
AUTO CUT
MI X WIPE
TRANSIT I ON T YPE
NEXT TRANSIT ION
ON AI R
KEY 4
KEY 3
KEY 2
DVE
DVE
KEY 1
DVE
FADER LIMIT
KEY4KEY3
KEY2KEY1BKGD
DIRECTION
REV NOR/REV PATTERN
TRANSITION
RAT E
WIPE CHANNEL
BKG D
KEY1
KEY2
SELECT / KEYPAD
5
2
RECALL
PASTE
4
1
6
3
DEC
BL ACK
TRANS
SEQUENCEEVENTWIPE MACRO
CONTROL
MEMORY
MENU USER BUTTON COPY/SWAP SEQ EDIT
987
ATT ACH
INC
MENU
COPY
STILL MA TT
SWAP N EW
FILE
INS
KEY4KEY3KEY2KEY1
DETTA CH
KEYER
(2 D DVE)
ROTP OSWIPE POS
MENU FINE DEF
J OYST IC K
ADDDELCUTPLAY
+/-
CLEAR
WIPE
STO P
0
COPY
STORE
ENTER
OVWR
HVS-390HS
DIGITAL VIDEO SWITCHER
MV2
