123
<Performing CG WIPE>
(1) Verify that the background transition type is set to WIPE and the modified WIPE pattern is
properly selected. Use the fader lever or the AUTO button to perform a CG WIPE
sequence.
(2) Adjust time or position using the related menu items, as needed.
14-2. CG WIPE Operation Example 2
Ex. 2: CG WIPE using VDCP1 and KEY1
In this example, CGs (video and key) are stored in a VDCP device. Connect the VDCP device to
the switcher and control the device from the switcher via VDCP. CG clip signals (video and key)
are input to the switcher and used for KEY1 INSERT and SOURCE. Display KEY1 on the screen
and play the CG. Then set CG WIPE to ON, and perform a background transition. Change
IN/OUT points, transition rate and delay values to adjust the CG WIPE sequence, if needed.
<Connection>

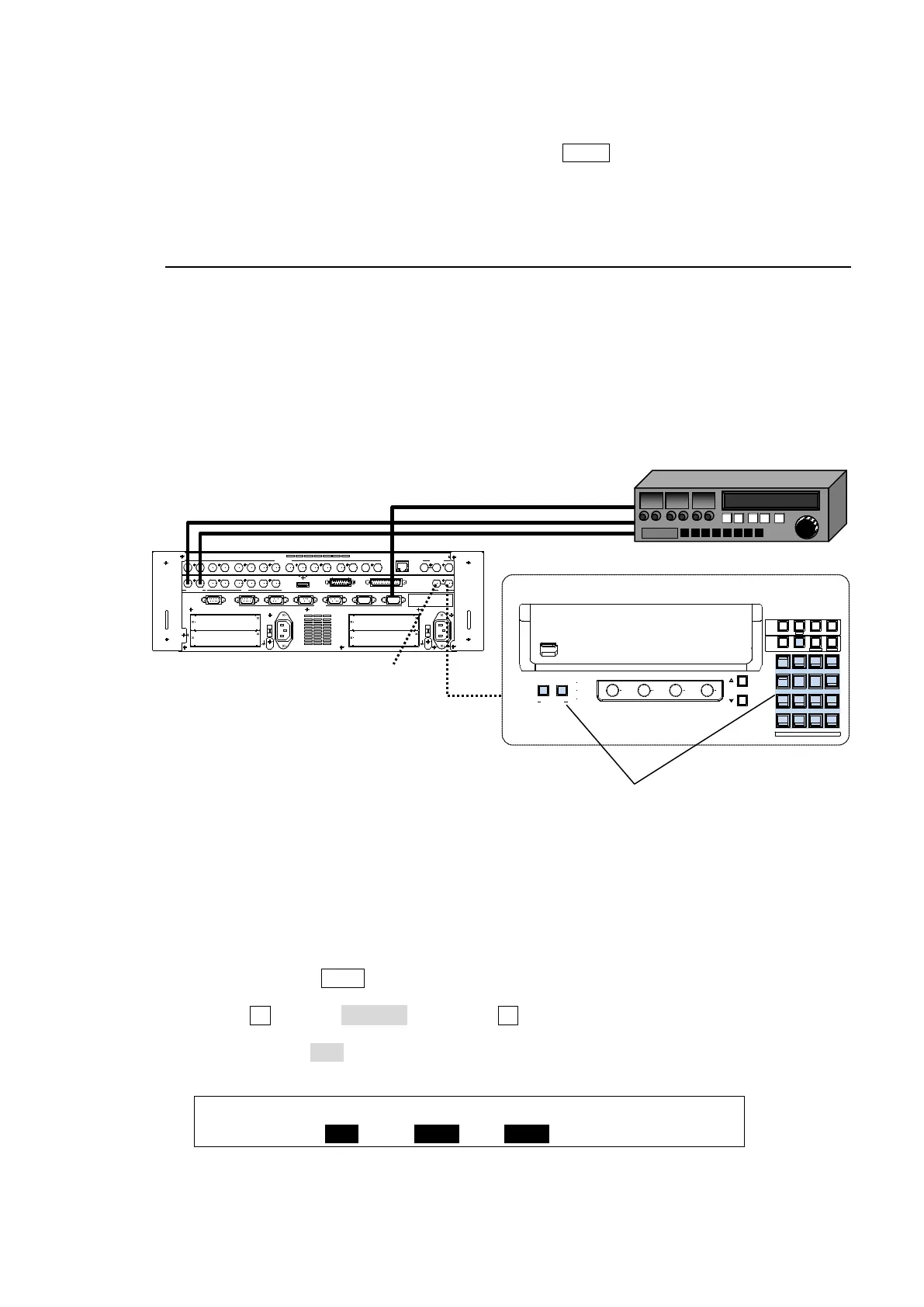

Connect the switcher to a VTR in which CG is stored as shown below.
See section 25-1. "Assigning a VTR or VDCP Channel to an RS-422 Port" to assign VDCP1 to
the RS-422 port to which the VTR is connected. Select the VDCP type, referring to section 24-3.
"Selecting the VDCP Type."
<Setting Up KEY>
(1) Quickly press KEY1 twice in the BUS SELECT section to display the [M/E1 KEY1
SETUP] menu.
(2) Turn F1 to select INS/SRC, then press F1 or the page down button to display the [M/E1
KEY1 - INS/SRC] menu.
(3) Set TYPE to BUS. Select the CG input (FILL) for INSERT and the CG input (KEY) for
SOURCE.
ME1 KEY1: TYPE :INSERT :SOURCE :INVERT : 1/3
INS/SRC : =BUS : =IN01 : =IN02 : =OFF :
HVS-390HS
RS-422
VDCP device
75
Ω
termination
SDI
SDI
ED IT OR
OPT I ON SL OT
AC100-240V 50/60Hz IN
2
RS-422
AUX HDMI GPI INSDI OUT PUT
1 2
A
B
1 2 1 2 1 2
1 2 3 4 5 6 7 8
SDI I NPUT
9 10 11 12 13 14 1615
GPI/TALLY OUT
OPT I ON SL OT
C
D
1
AC100-240V 50/60Hz IN
RATING LABEL
T O OU
GEN LOCK
REF IN REF OUT
L AN
1 2 3 4 5 6
USB M EMORY
ALARM
POWER1
POWER2
USER BUTTON
1 2
F1
F2 F3
F4
PA GE
SELEC T / KE YPAD
5
2
REC AL L
PASTE
4
1
6
3
DEC
SEQUENCEEVENTWIPE MA CRO
CON TR OL
MEMORY
ME NU USER B UT TON COPY/SWAP SEQ EDIT
987
AT TAC H
INC
ME NU
COP Y
ST ILL MA TT
SWAP NEW
FILE
I NS
KEY4KEY3KEY2KEY1
DETTACH
A DDDELCUTPLAY
+/-
CLEAR
WIPE
STO P
0
COP Y
STORE
ENTER
O VWR
HVS-391OU
Control VTR using the
VTR/VDCP menu.
Control VTR using user buttons.
