14. CG WIPE
CG WIPE allows you to create a sequence in which a CG video, which is displayed using a KEY,
moves in accordance with the motion of a WIPE pattern. Normally patterns used for CG WIPE are
modified according to sequences.

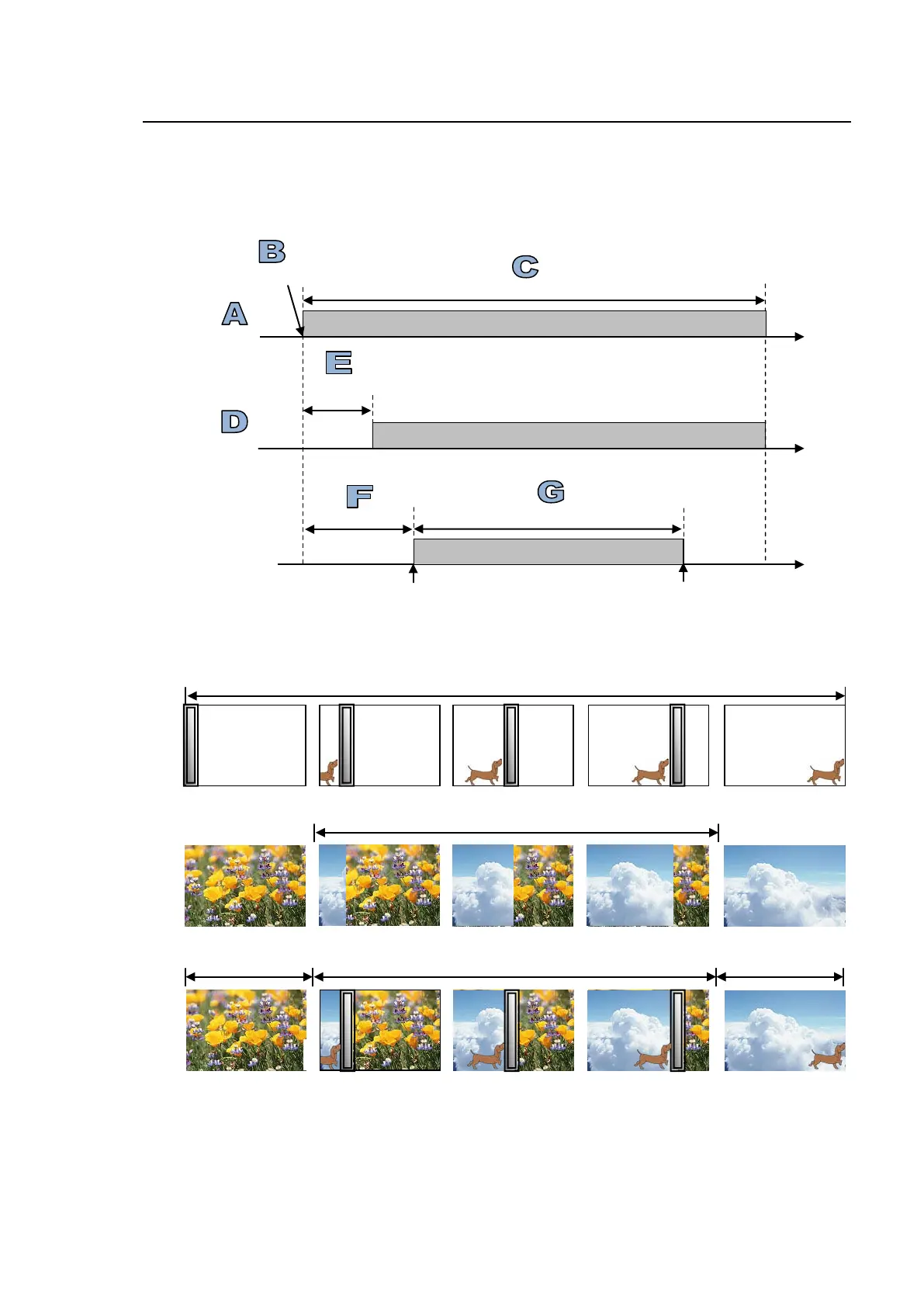

 Fig. 1: CG WIPE Sequence Diagram with CG, Key and Background
 Fig. 2: Example of CG WIPE Video
CG (KEY) playback time
CG start point (IN point)
CG playback time
Delay time
ON
OFF
Transition rate
Transition start point
Transition end point
BKGD
CG
KEY
CG end point (OUT point)
Delay time
BKGD transition
CG WIPE
Delay
