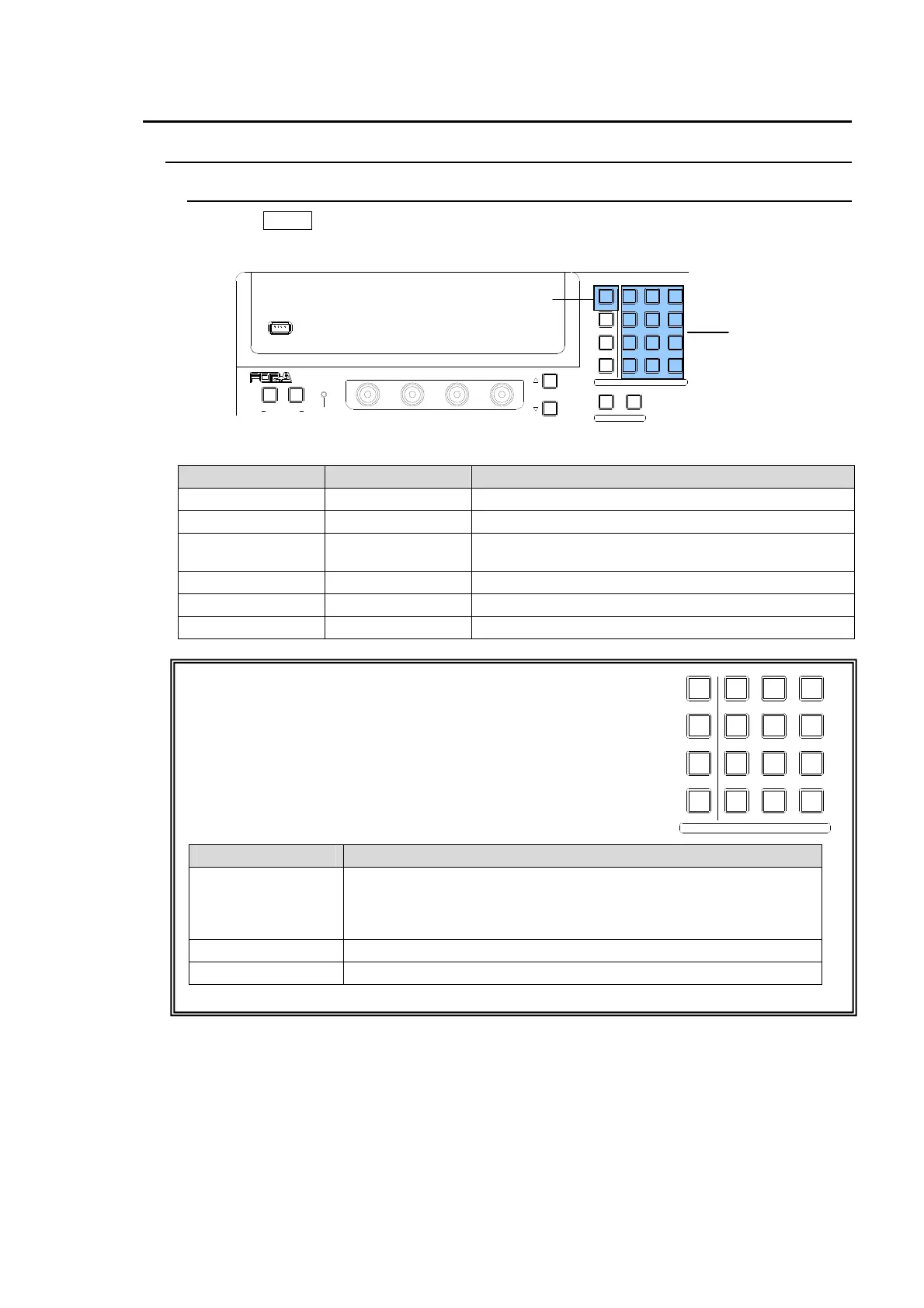

4. Menu Operations

4-1. How to Access Menus

4-1-1. Menu Access Buttons

Press the MENU button below, which changes the buttons in the Keypad block to the menu

buttons, and then press the buttons on the Keypad to access menus.

 KEYPAD Block

Button Accessed menu Menu Description

FILE FILE TOP Accesses menu for file operations using a USB

STILL STILL STORE Accesses menu for still store operation.

SET UP SETUP MENU

Accesses menu for setup of system, panel, video

input, video output, external interface.

MATT MATT COLOR Accesses menu for matte colors.

WIPE WIPE Accesses menu for WIPE pattern modification.

KEYER KEYER TOP Accesses menu for KEY1-4 setup and effects.

MENU/ DIRECT PATT/ EVENT/ KEY PAD Block

The MENU/ DIRECT PATT/ EVENT/ KEY PAD block to the

right of the menu display has four modes: Menu Access,

Direct Pattern Selection and Event Control. The current

operational mode is displayed at the upper right of the menu

display.

Mode Selection Buttons

Button Function

This button changes the Keypad to menu access buttons. Pressing

on a button in the Keypad displays the related menu.

The MENU button blinks if a parameter has changed and it requires

rebooting. In this case, reboot the switcher.

DIRECT PATTERN This button changes the Keypad to direct pattern selection buttons.

±/EVENT This button changes the Keypad to event memory control buttons.

MENU/DIRECT PATT/EVENT/KEY PAD

7/SET UP

4/WIPE

8/STILL

5/P in P

2/KEYER

9/FILE

6/MATT

3/DSK

DIRECT PATT

±/EVENT

CLR/TRANS RATE 0 /RECALL

. (DOT)

ENT/STORE

USB MEMORY

NOR/REVREV

F3F2

PAGE
