FOR-A HVS-390HS - TALLY out Connector (HVS-30 TALR)

25

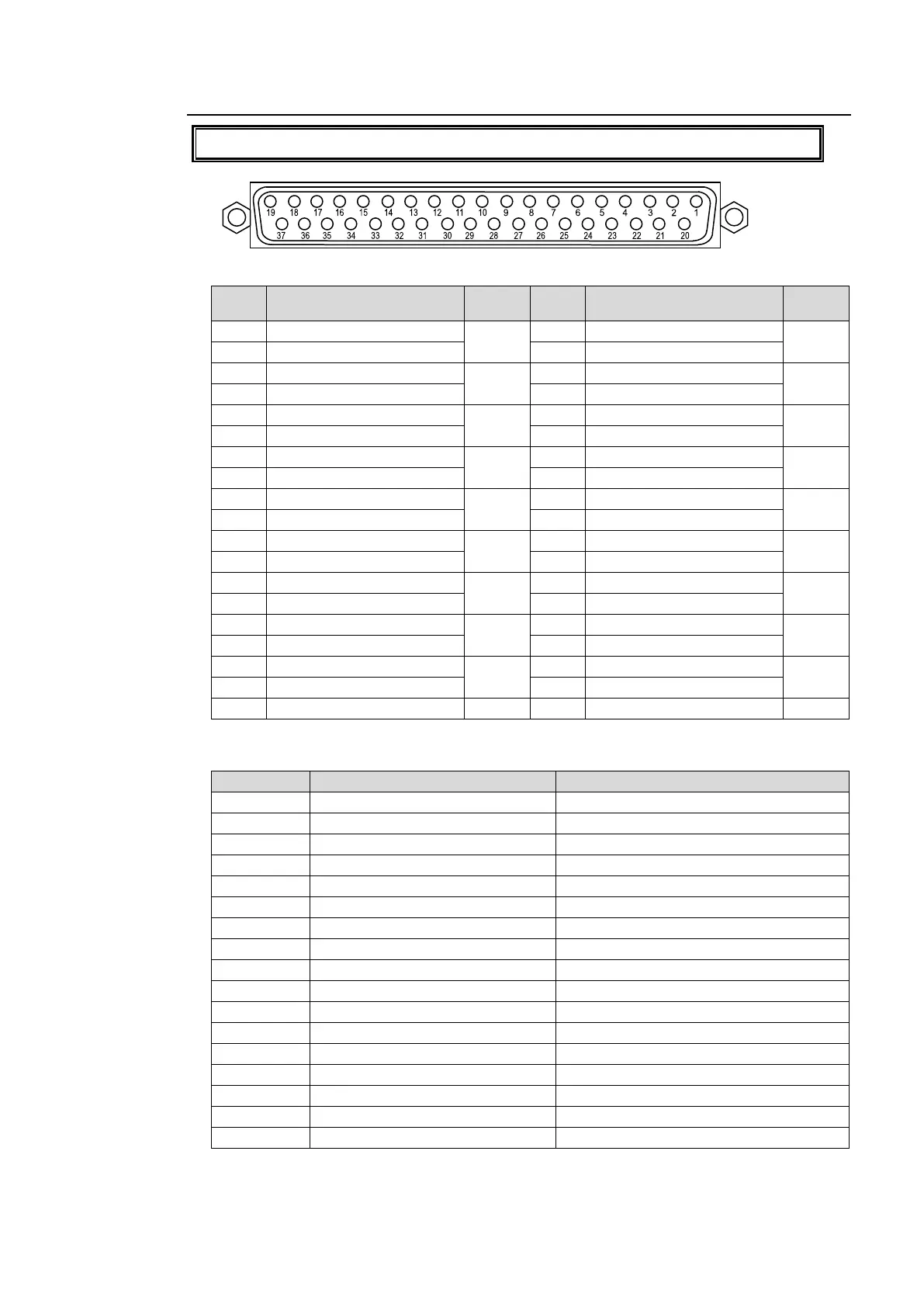

2-4-6. TALLY OUT Connector (HVS-30TALR)
The TALLY OUT connectors are available only when HVS-30TALR cards are installed.
 Pin Assignment Table (37-pin D-sub, female, with inch screws)
Pin No. Output signal
Channel
No.
Pin No. Output signal
Channel
No.
1 TALLY OUT1 Normally Open
1
20 TALLY OUT10 Normally Open
10
2 TALLY OUT1 COMMON 21 TALLY OUT10 COMMON
3 TALLY OUT2 Normally Open
2
22 TALLY OUT11 Normally Open
11
4 TALLY OUT2 COMMON 23 TALLY OUT11 COMMON
5 TALLY OUT3 Normally Open
3
24 TALLY OUT12 Normally Open
12
6 TALLY OUT3 COMMON 25 TALLY OUT12 COMMON
7 TALLY OUT4 Normally Open
4
26 TALLY OUT13 Normally Open
13
8 TALLY OUT4 COMMON 27 TALLY OUT13 COMMON
9 TALLY OUT5 Normally Open
5
28 TALLY OUT14 Normally Open
14
10 TALLY OUT5 COMMON 29 TALLY OUT14 COMMON
11 TALLY OUT6 Normally Open
6
30 TALLY OUT15 Normally Open
15
12 TALLY OUT6 COMMON 31 TALLY OUT15 COMMON
13 TALLY OUT7 Normally Open
7
32 TALLY OUT16 Normally Open
16
14 TALLY OUT7 COMMON 33 TALLY OUT16 COMMON
15 TALLY OUT8 Normally Open
8
34 TALLY OUT17 Normally Open
17
16 TALLY OUT8 COMMON 35 TALLY OUT17 COMMON
17 TALLY OUT9 Normally Open
9
36 TALLY OUT18 Normally Open
18
18 TALLY OUT9 COMMON 37 TALLY OUT18 COMMON
19 Reserved
* Normally Open: Open when a tally is present and closed with COMMON pin when no tally is present. * Do
not connect Pin 19.
Channel No. Tally Output for Card 1 Tally Output for Card 2
1 RED TALLY-IN01 (default) GREEN TALLY-IN01 (default)
2 RED TALLY-IN02 (default) GREEN TALLY-IN02 (default)
3 RED TALLY-IN03 (default) GREEN TALLY-IN03 (default)
4 RED TALLY-IN04 (default) GREEN TALLY-IN04 (default)
5 RED TALLY-IN05 (default) GREEN TALLY-IN05 (default)
6 RED TALLY-IN06 (default) GREEN TALLY-IN06 (default)
7 RED TALLY-IN07 (default) GREEN TALLY-IN07 (default)
8 RED TALLY-IN08 (default) GREEN TALLY-IN08 (default)
9 RED TALLY-IN09 (default) GREEN TALLY-IN09 (default)
10 RED TALLY-IN10 (default) GREEN TALLY-IN10 (default)
11 RED TALLY-IN11 (default) GREEN TALLY-IN11 (default)
12 RED TALLY-IN12 (default) GREEN TALLY-IN12 (default)
13 RED TALLY-IN13 (default) GREEN TALLY-IN13 (default)
14 RED TALLY-IN14 (default) GREEN TALLY-IN14 (default)
15 RED TALLY-IN15 (default) GREEN TALLY-IN15 (default)
16 RED TALLY-IN16 (default) GREEN TALLY-IN16 (default)
17-18 Do not use. (default) Do not use. (default)
* Whether Card 1 or Card 2 is chosen on a dipswitch on the HVS-30TALR card.
Tally outputs can be freely assigned. (See section 24-2-3. "Tally Output Settings (HVS-30TALR).")
