FOR-A HVS-390HS User Manual

241

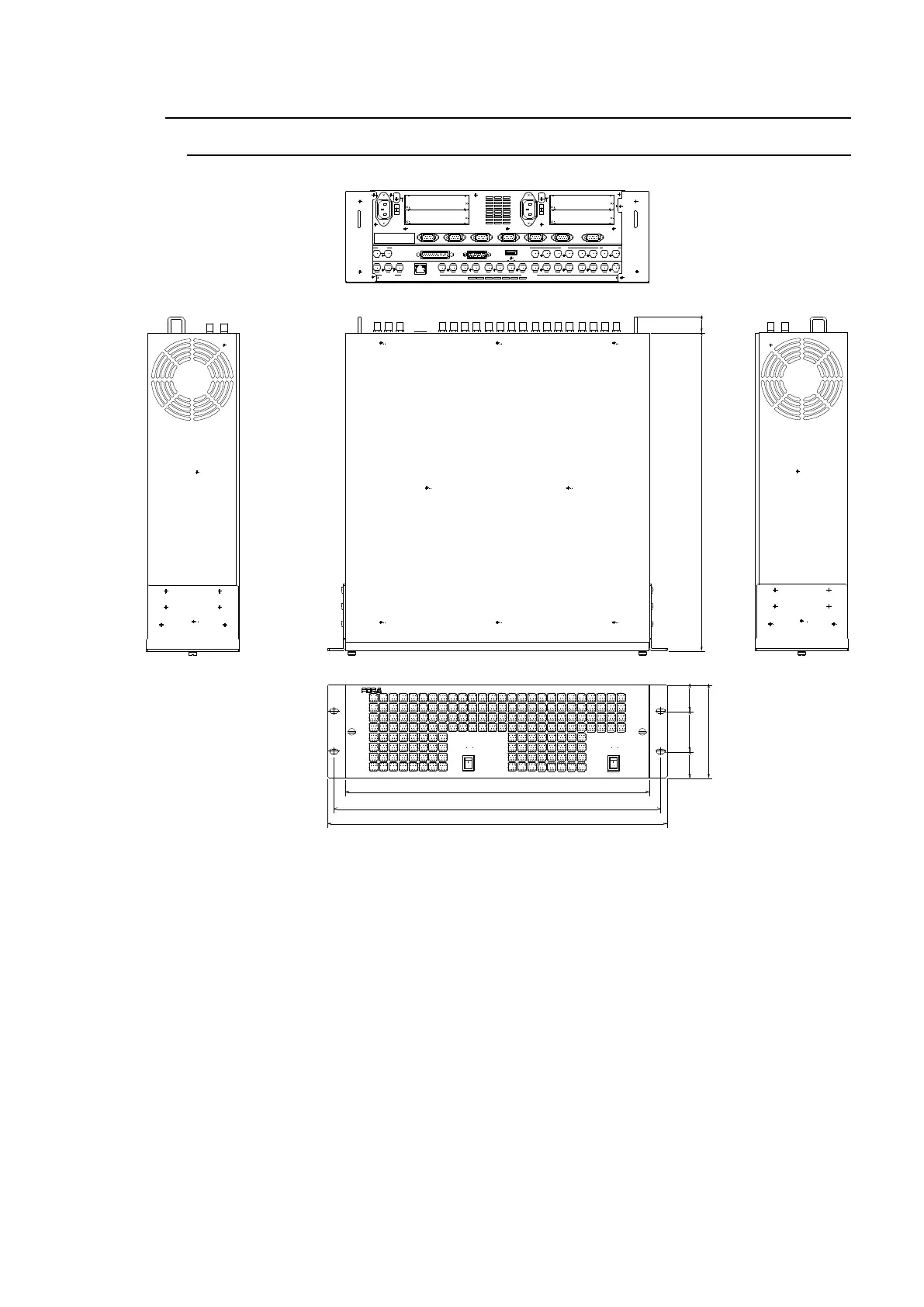

35-2. External Dimensions
35-2-1. HVS-390HS
(All dimensions in mm)
430
462
480
37.5
57
37.5
132
450
23
EDITOR
OPTION SLOT
AC100-240V 50/60Hz IN
2
RS-422
AUX HDMI GP I INSDI OUTPUT
1 2
A
B
1 2
1 2 3 4
5 6 7 8
SDI INPUT
9 10 11 12 13 14 1615
GPI/TALLY OUT
OPTION SLOT
C
D
1
AC100-240V 50/60Hz I N
RATING LABEL
TO OU
GENLOCK
REF IN REF OU T
LAN
HANABI
HVS-390 HS
DIGITAL VIDEO SWITCHER
POWER 2
ON
OFF
POWER 2AL ARMPOWER 1A LARM
POWER 1
ON
OFF
1 2 3 4 5 6
3 4 5 6
