79

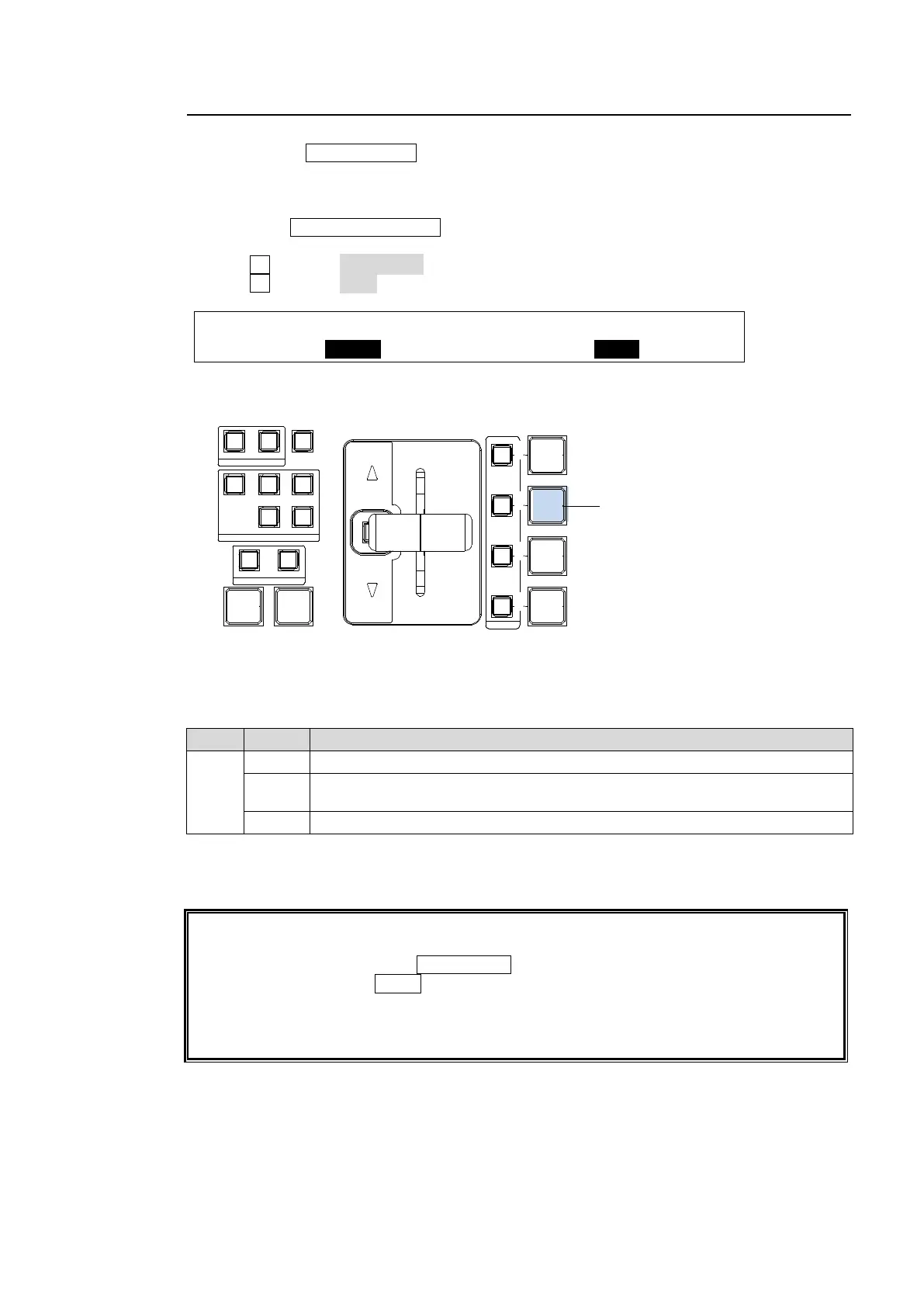

8-9-2. Setting the KEY AUTO Button Function
The KEY AUTO buttons are set to AUTO (MIX) as factory default.
To change the KEY2 ON AIR button function on M/E2 so that CUT transitions can be
performed by briefly pressing the button and KEY2 AUTO (MIX) transitions can be performed
by pressing and holding down the button, proceed as follows:
(1) Press the TRANSITION RATE button above the KEY ON AIR buttons to display the
[TRANS] menu. Go to PAGE 3.
(2) Turn F1 to select M/E1 KEY2 under SELECT.
(3) Turn F4 to select C/AT.
TRANS :SELECT : USER TRANS :ADV CTL: 3/4
USER/ADV: =M1KY2: =CUT : =C/AT :
KEY AUTO Button Function Settings
Item Setting Description
ADV
CTL
AUTO
Always performs MIX transitions regardless of how long the button is pressed.
C/AT
Performs Cut transitions when button is briefly pressed.
Performs MIX transitions when button is pressed and held down.
OFF
Disables the button function.
The transition time for MIX transitions can be set under RATE in the [TRANS] (2/4) menu.
See section 8-10-2. "Transition Rate" for details.
Users can perform key transitions in the NEXT TRANSITION block in the same way as
those for backgrounds. T
herefore, if KEY1 is set up to MIX or WIPE in the NEXT
TRANSITION block, pressing KEY1 AUTO
performs the MIX or WIPE transition in the
same way as that for the AUTO button in the NEXT TRANSITION.
The DVE lamps for KEY1 and KEY2 light red to indicate that the key uses a DVE pattern.
This is useful for verifying
the currently used DVE channels, since only two DVE channels
can be used simultaneously.
Buttons turn on while On-Air.
(Light color varies depending on
output bus)
Buttons turn off while Off-Air.
REV NOR/REV
PATTERN
BKGD
DIRECTION
KEY1 KEY2
KEY3 KEY4
NEXT TRANSITION
FASER LIMIT
MIX
WIPE
TRANSITION TYPE
AUTO CUT
ON AIR
DVE
DVE
KEY 4
KEY 3
KEY 2
DVE
KEY 1
DVE
