33. Connecting Control and Remote Panels
The HVS-390HS system can accommodate a maximum of three control panels (HVS-391OU /
30OU) and two remote panels (HVS-30RU). Two or three of the same or different models can be
connected. The HVS-390HS stores setting data (excluding several settings such as Arcnet ID) of
these OU and RUs, which contain:
Signal assignments of bus buttons
Function assignments of user buttons
USER TRANS and ADV CTRL settings

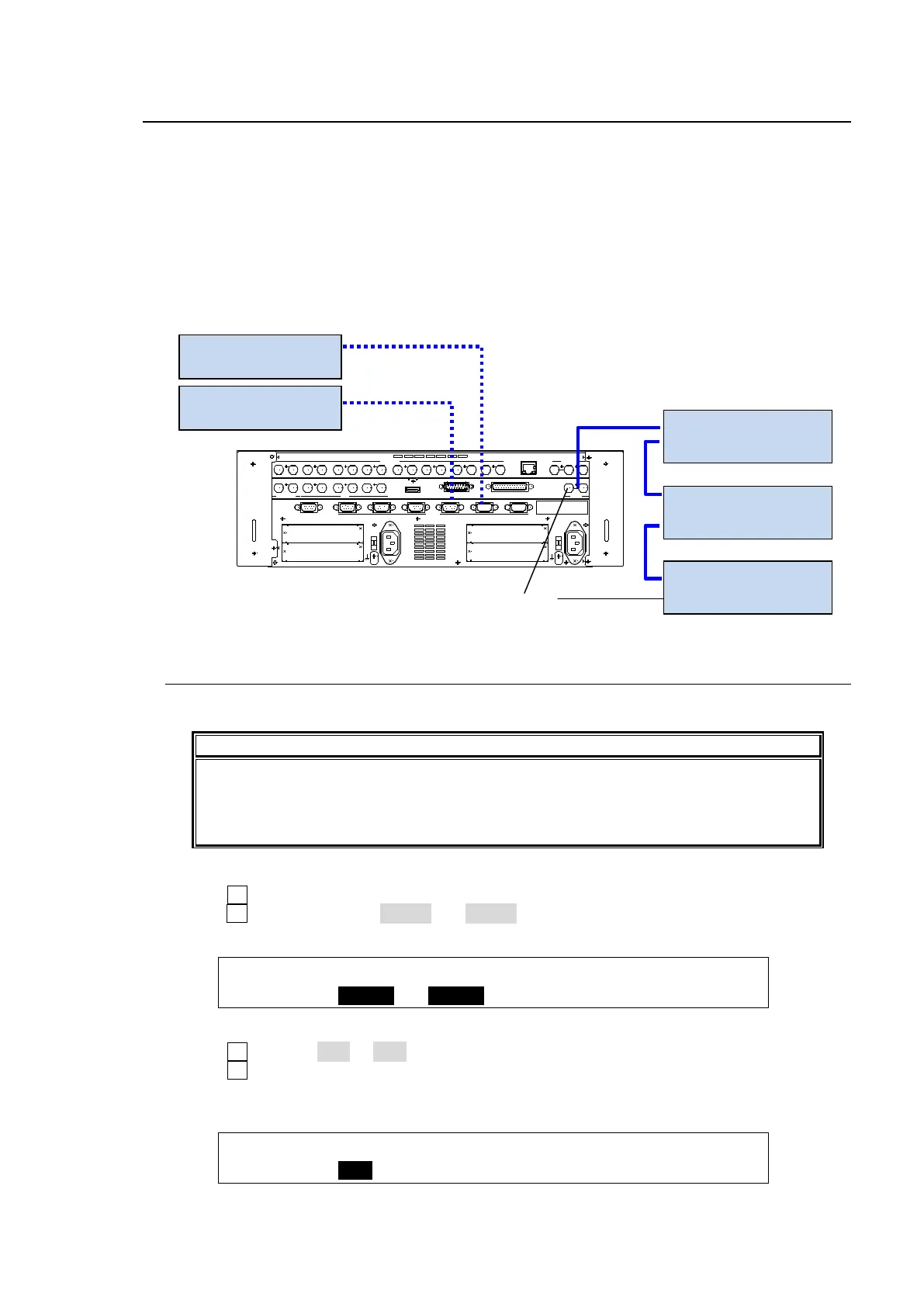

System Connection Example
33-1. Connecting Remote Panels (HVS-30RU)
Up to two HVS-30RU units can be connected to the HVS-390HS via RS-422.
RS-422 Port 1 on the HVS-390HS is set as a factory default to allow RU1
connected. Therefore, once an HVS-30RU is connected to Port 1, it is recognized as
RU1 in the HVS-390HS system. To connect HVS-30RU units to Port 2 through Port 6,
the following settings on the HVS-391OU or HVS-30OU are necessary.
(1) Open the [SETUP - SYSTEM - RS-422] menu on the HVS-391OU or HVS-30OU.
(2) Turn F1 to select the connection port.
(3) Turn F2 to select between 30RU1 and 30RU2. (RU1 and RU2 must be unique. Two RU units
cannot have the same setting.)
SYSTEM : SELECT: FUNC : BAUD :PARITY : 1/1
RS-422 : =PORT1: =30RU1: =153K : =NONE :
(4) Open PAGE 6 of the [SETUP - INPUT - ASSIGN] menu.
(5) Turn F1 to select RU1 or RU2.
(6) Turn F4 to select a Mix Effect bus for control.
Options are M/E1, M/E2 and P/P, which is enabled in 2.5M/E mode (see section 33-3).
RU1 and RU2 can select the same or different Mix Effect Bus.
INPUT :SELECT : SHIFT : LINK :CONTROL: 6/6
ASSIGN : =RU1 : =OFF : =OFF : =M/E1 :
EDITOR
OPTION SLOT
AC100- 240V 50/60Hz IN
2
RS-422
AUX HDMI GPI INSDI OUTPUT
1 2
A
B
1 2 1 2 1 2
1 2 3 4 5 6 7 8
SDI INPUT
9 10 11 12 13 14 1615
GPI/TALLY OUT
OPTION SLOT
C
D
1
AC100- 240V 50/60Hz IN
RATING LABEL
T O OU
GENLOCK
REF IN REF OUT
L AN
1 2 3 4 5 6
M/E1 control
M/E2 control
（Supplied with RU）
HVS-391OU
HVS-30OU
HVS-30OU
To Next Page
