FOR-A HVS-390HS User Manual

107
11-4. FADE
FADE allows users to add an effect to make backgrounds transparent.
(1) Go to the [M/E1 KEY1 - POS/SIZE] menu PAGE 2.
(2) Turn F3 to set the FADE level for the KEY1 image. Increasing the value makes the
backgound transparent.
ME1 KEY1: ASPECT :FADE LV: : 2/5
ASPECT :X=1000 Y=1000 : =0.0 : :

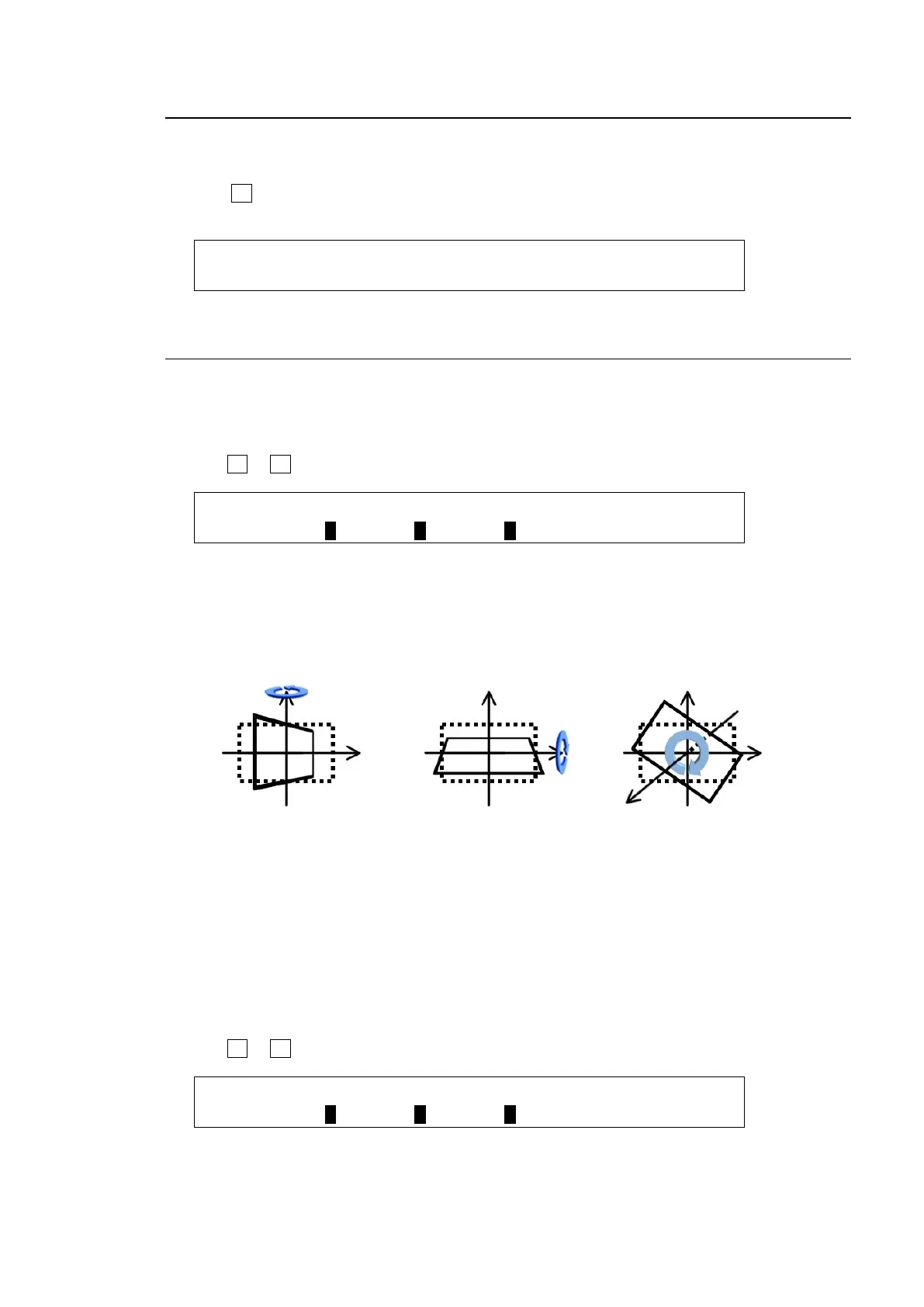

11-5. Rotation
In addition to the position and size changes, users can add a rotation effect to the key images.
 Specifying the Rotation Angle (Number of Rotation)
(1) Go to PAGE 3 of the [M/E1 KEY1 - POS/SIZE] menu.
(2) Turn F1 to F3 to rotate the key image around the X, Y and Z axes.
ME1 KEY1: LOCAL ROTATION : : 3/5
ROTATION:X=0 Y=0 Z=0 : :
The LOCAL ROTATION values can rotate the key image around the base point up to
approximately eight times in the positive or negative direction.
X-Rotation: Rotates around the Y-axis.
Y-Rotation: Rotates around the X-axis.
Z-Rotation: Rotates around the origin.
In the factory default setting, the base point is set to the coordinates (0,0,0), which coincide with
the center point of the key image. The figure examples above show the rotations around the
base point (0, 0, 0). Changing the CENTER POSITION values in the menu can move the base
point
 Moving the Center (Axes) of Rotation
(1) Go to PAGE 4 of the [M/E1 KEY1 - POS/SIZE] menu.
(2) Turn F1 to F3 to move the center of rotation.
ME1 KEY1: CENTER POSITION : : 4/5
ROTATION:X=0 Y=0 Z=0 : :
X-Rotation
LOCAL ROTATION
(100,0,0)
Y-Rotation
LOCAL ROTATION
(0,100,0)
Z-Rotation
LOCAL ROTATION
(0,0,100)
