FOR-A HVS-390HS User Manual

29
NOTE
See section 15. "Multiviewer" for multi-display connection and setup.
See section 24-1. "GPI Control" and section 24-2-2
. "
Tally Output Settings (GPI/TALLY
OUT)" for setting up GPI input, GPI output and tally output.
See section 24-2-4. "Sending Tally Signals to Tally Units"
, if you configure the tally
units (Hanabi series option).
See section 29. "Editor Control (Option)" for editor control.
The HVS-
AUX8/16/32 units (Hanabi series option), which are used for selecting AUX
signals, can be deployed in the same Arcnet LAN as control panels. See section 30-1.
"ARCNET" for Arcnet connection. S
ee the operation manual of the Auxiliary Unit for
how to connect the AUX units to the switcher.

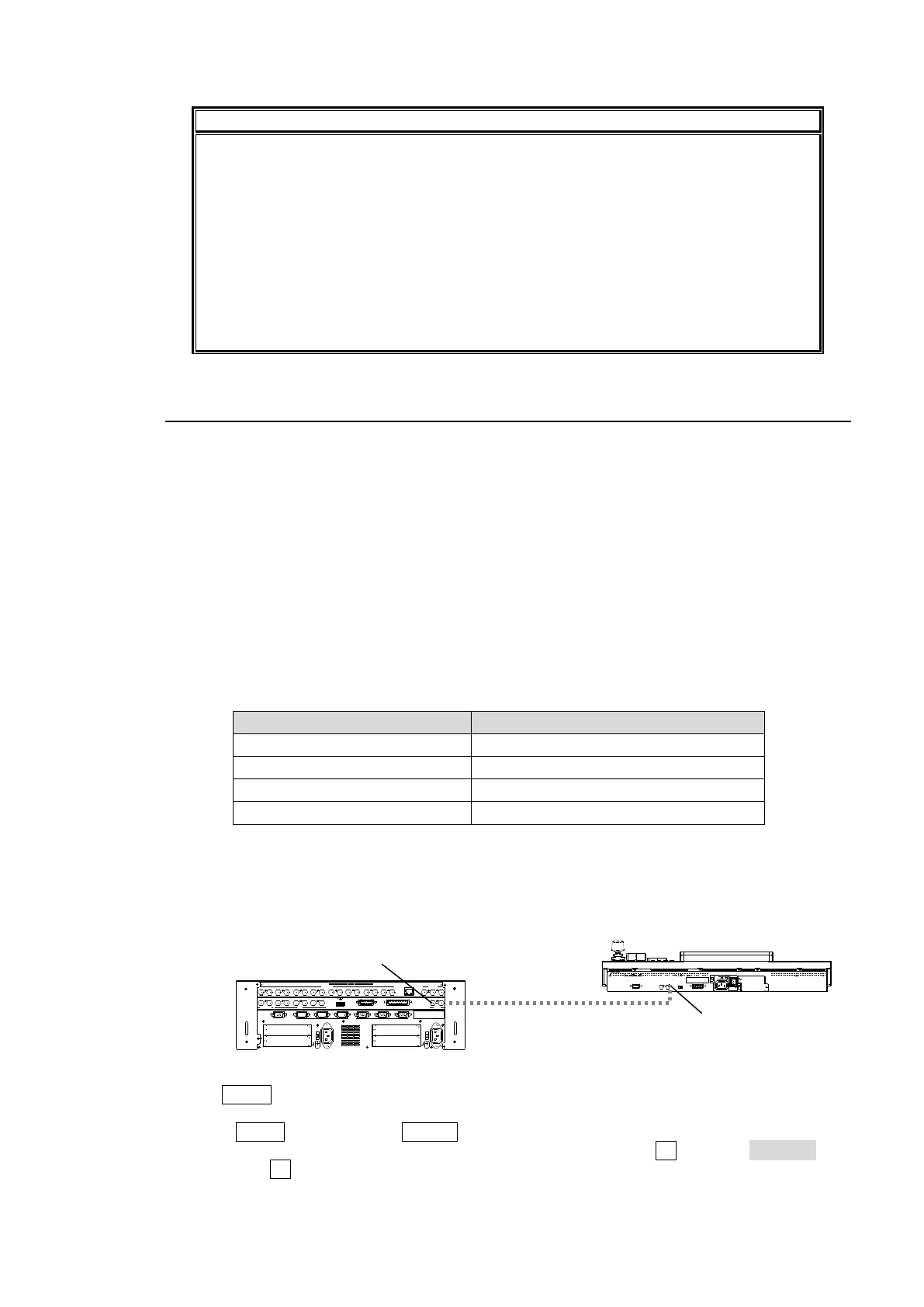

3-3. How to Connect between MU and OU Units
The multiple control panels (OU) and remote units (RU) can be connected to single HVS-390HS
(MU). The maximum system configuration is:
MU (HVS-390HS) 1
OU (HVS-391OU / 392OU / 392ROU) 3 (Multiple of same model is possible.)
RU (HVS-30RU) 2
MU and OU units communicate via Arcnet. If your MU and OU connection is a one-to-one
connection: an HVS-390HS and HVS-391OU, setup is very easy. Just connect the MU and OU.
Any additional network setting is not necessary.
However, if your HVS-390 series system has two or three OU units, the Arcnet ID of devices
should be changed before configuring the system, because the Arcnet does not work if two
devices with the same ID exist in the network. (The remote control units connect to the MU via
RS-422.)
Model Arcnet ID (default setting)
HVS-391OU 1
HVS-392OU 1
HVS-392ROU 1
HVS-390HS 250
To Change the Arcnet OU ID
(1) Connect the MU (HVS-390HS) and an OU (HVS-391OU) via Arcnet using a BNC cable as
shown below.
(2) The MENU button in the CONTROL block at the right of the menu display should light up at
power ON.
(3) Press MENU and then press SETUP.
(4) The SETUP menu top page appears in the menu display. Turn F1 to select SYSTEM and
then press F1.
‚R ‚S ‚T ‚U‚Q‚P
EDI TOR
OPTI ON SLOT
AC100-240V 50/6 0Hz IN
2
RS-422
AUX HDMI GPI INSDI OUTPUT
1 2
A
B
1 2 1 2 1 2
1 2 3 4
5 6 7 8
SDI INP UT
9 10 11 12 13 14 1615
GPI/TALLY OUT
OPTI ON SLOT
C
D
1
AC100-240V 50/6 0Hz IN
RATING LABEL
TO OU
GENLOC K
REF IN REF OUT
LAN
RATING LABEL
CONTR OL TO MU GPI/ TAL LY OUT
(SERVI CE)
AC100-240V 50/60Hz IN
POWER 1
POWER ON
OFF
POWER 2
75
Ω
termination
Arcnet
(75ΩBNC cable)
MU ID: 250
OU ID: 1
75
Ω
termination
