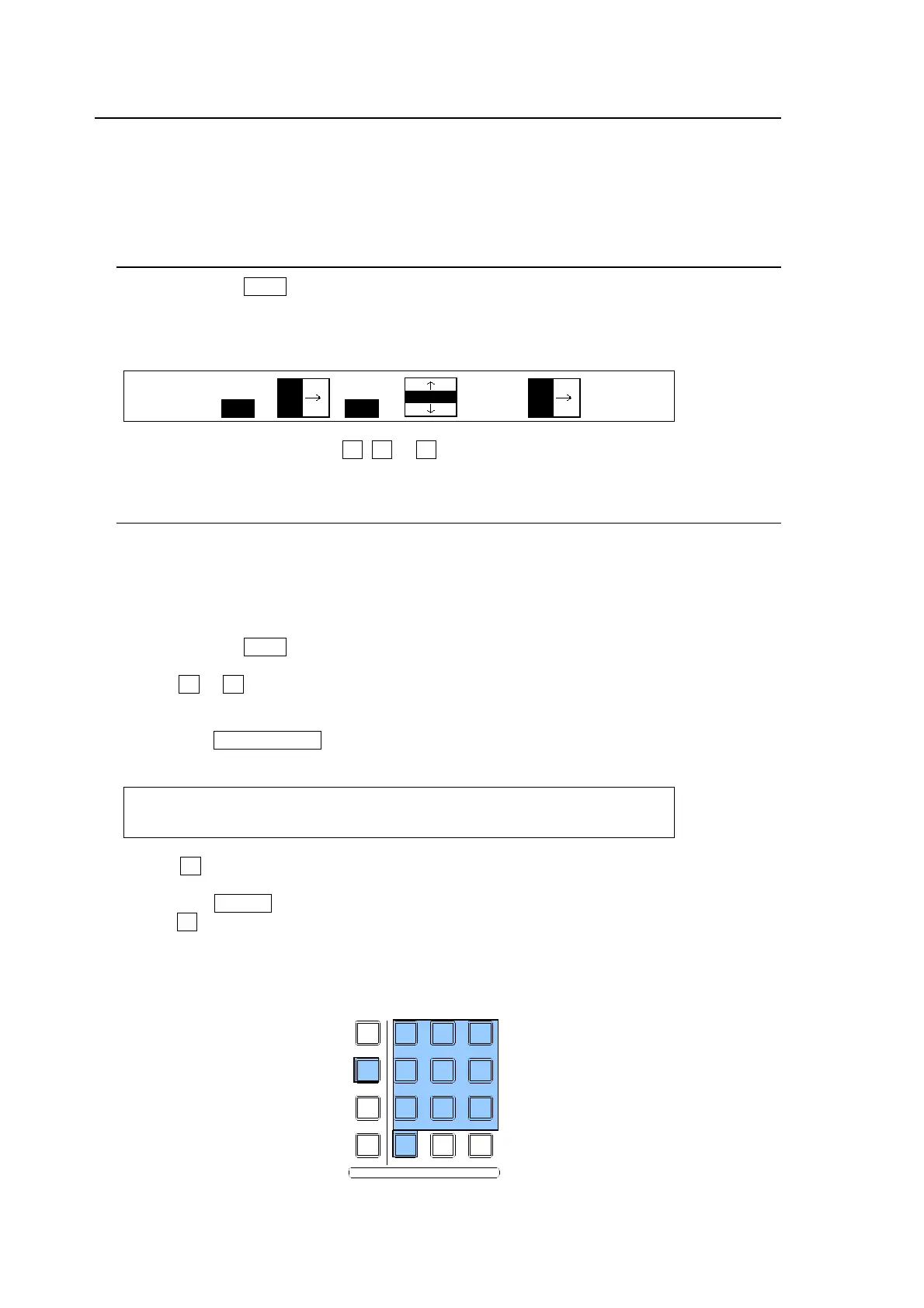

6-5. How to Select Patterns
Wipe patterns are available for background and KEY1 transitions. More than 150 preset
patterns are provided. This chapter explains how to select patterns for the transition, how to
check which pattern is currently selected and how to select patterns quickly using the Direct
Pattern function.
6-5-1. Checking and Selecting Patterns
(1) Quickly press WIPE in the TRANSITION section twice to display the [WIPE - PATTERN]
menu.
The currently selected pattern numbers and icons are displayed. The letter "M" appears in
front of modified patterns.
WIPE :BKGD :KEY1 :KEY2 :1/1
PAT M1 :M00 :M20 :00 :
(2) To change the pattern, turn F1, F2 or F3 to select a desired pattern.
6-5-2. Direct Pattern Function
The Direct Pattern Selection feature uses the number buttons on the keypad (0-9), to which
WIPE patterns previously registered can be recalled at the touch of one button. So it is useful
to assign frequently used patterns to number buttons. Up to 20 patterns can be registered.
The following procedures show how to register and select patterns.
To Register a Pattern:
(1) Quickly press WIPE in the TRANSITION section twice to display the [WIPE - PATTERN]
menu.
(2) Turn F1 or F3 to select a pattern for registration.
(3) Modify the pattern, if needed. See section 7 "Modifying Patterns" for the pattern
modification.
(4) Press the DIRECT PATT button to the left of the keypad. The [DIRECT PATTERN] menu
is displayed and the keypad changes to DIRECT PATTERN mode.
DIRECT : PAGE :DIRECT :CLEAR :SELECT : 1/1
PATTERN : =0 : =ON : >OFF : =M1 BK:
(5) Turn F1 to select a page of the Direct Pattern memory. The patterns 0-9 are stored in
PAGE 1 and the patterns 10-19 are stored in PAGE 2.
(6) Press the STORE button.
(7)Turn F4 to select a bus where the pattern is being used.
(8) Press a number button (0-9). The selected pattern is saved to the number button of the
selected page.
(9) Repeat steps (1) to (8) to register patterns.
MENU/DIRECT PATT/EVENT/KEY PAD
7/SET UP
4/WIPE
1
8/STILL
5/P in P
2/KEYER
9/FILE
6/MATT
3/DSK
MENU
DIRECT PATT
±/EVENT
CLR/TRANS RATE 0 /RECALL
. (DOT)
ENT/STORE
