2-3. Option Slots
All expansion cards can be fitted via the rear of the main unit. The bottom 4 slots are dedicated
to these optional cards.
IMPORTANT
For further details on system expansion (optional cards) and fan replacement, contact
your FOR-A supplier.

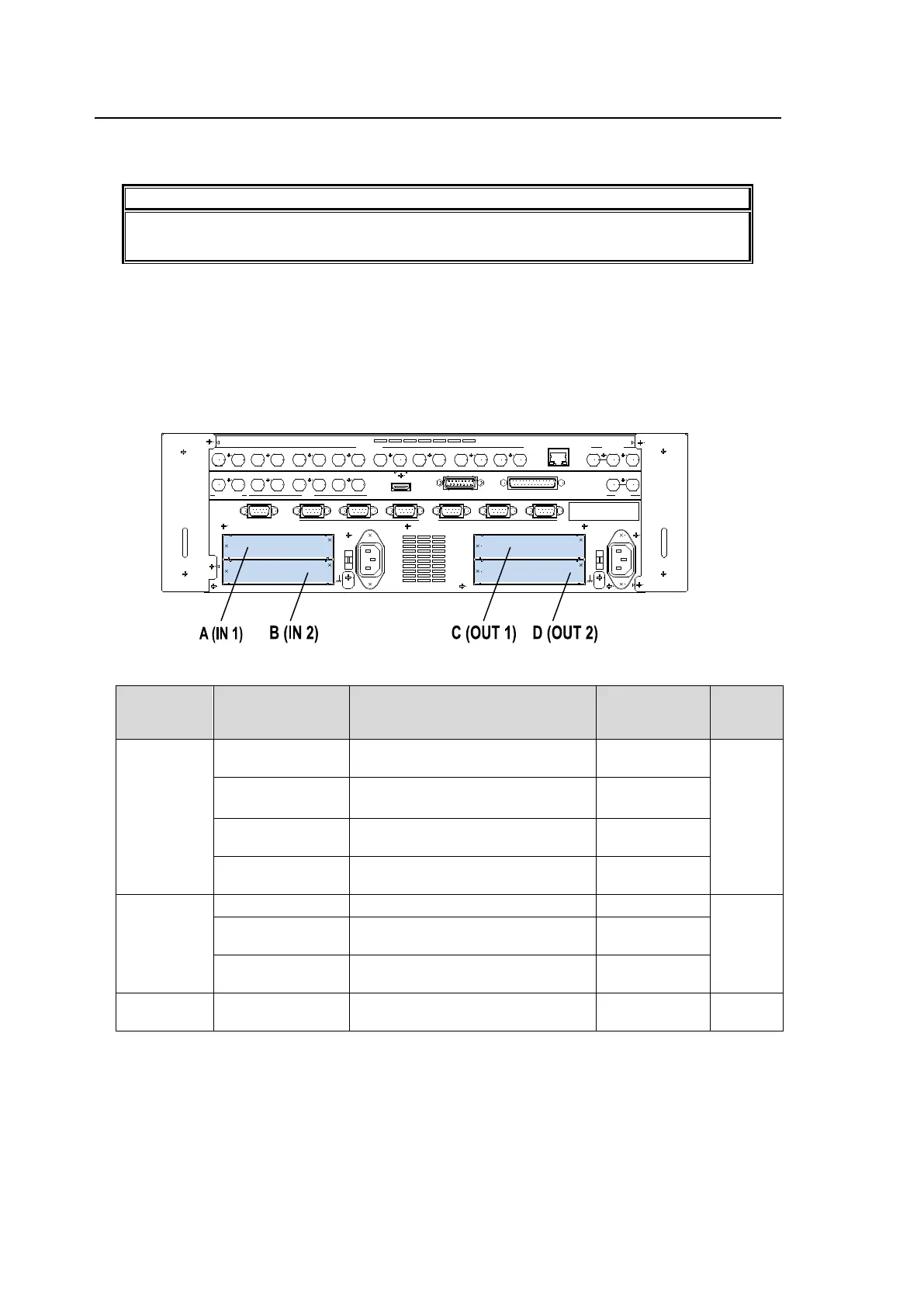

 Slots for Option Cards at Main Unit Rear Panel
Two input expansion cards can be installed into Slot A and B.
Two output expansion cards can be installed in slot OUT 1 to 2 (E and F).
Two tally relay expansion cards (HVS-30TALR) can be installed in Slot A to F.
Option Slot Available card
Available Video Signal
(Connector)
Number of
input/output
per card
Refer to
sec.
A (IN 1)
B (IN 2)
HVS-30HSDI-A
HD/SD SDI (BNC)
(w/o resize function)
4 inputs
5-11
HVS-30HSDI
HD/SD SDI (BNC)
(w/ resize function)
4 inputs
HVS-30HSAI
HD/SD analog component or
Analog composite (BNC)
2 inputs
HVS-30PCIN
Digital RGB (DVI-D) and
Analog RGB (VGA)
2 inputs
C (OUT 1)
C (OUT 2)
HVS-30HSDO HD/SD SDI (BNC) 3 outputs
6-7
HVS-30HSAO
HD/SD analog component or
Analog composite (BNC)
2 outputs
HVS-30PCO
Digital RGB (DVI-D) and
Analog RGB (VGA)
2 outputs
A to D HVS-30TALR Tally Relay Output (37-pin D-sub) 18 outputs
2-4-6
24-2-3
EDITOR
OPTION SLOT
AC100- 240V 50/ 60H z IN
2
RS-422
AUX HDMI GPI INSDI OUTPUT
1 2
A
B
1 2
1 2 3 4 5 6 7 8
SDI INPUT
9 10 11 12 13 14 1615
GPI/TALLY OUT
OPTION SLOT
C
D
1
AC100- 240V 50/ 60H z IN
RATING LABEL
TO OU
GENLOCK
REF I N REF OUT
LAN
1 2 3 4 5 6
3 4 5 6
