8
HVS-30OU
3-3. System Signal Format Selection at the Initial Use

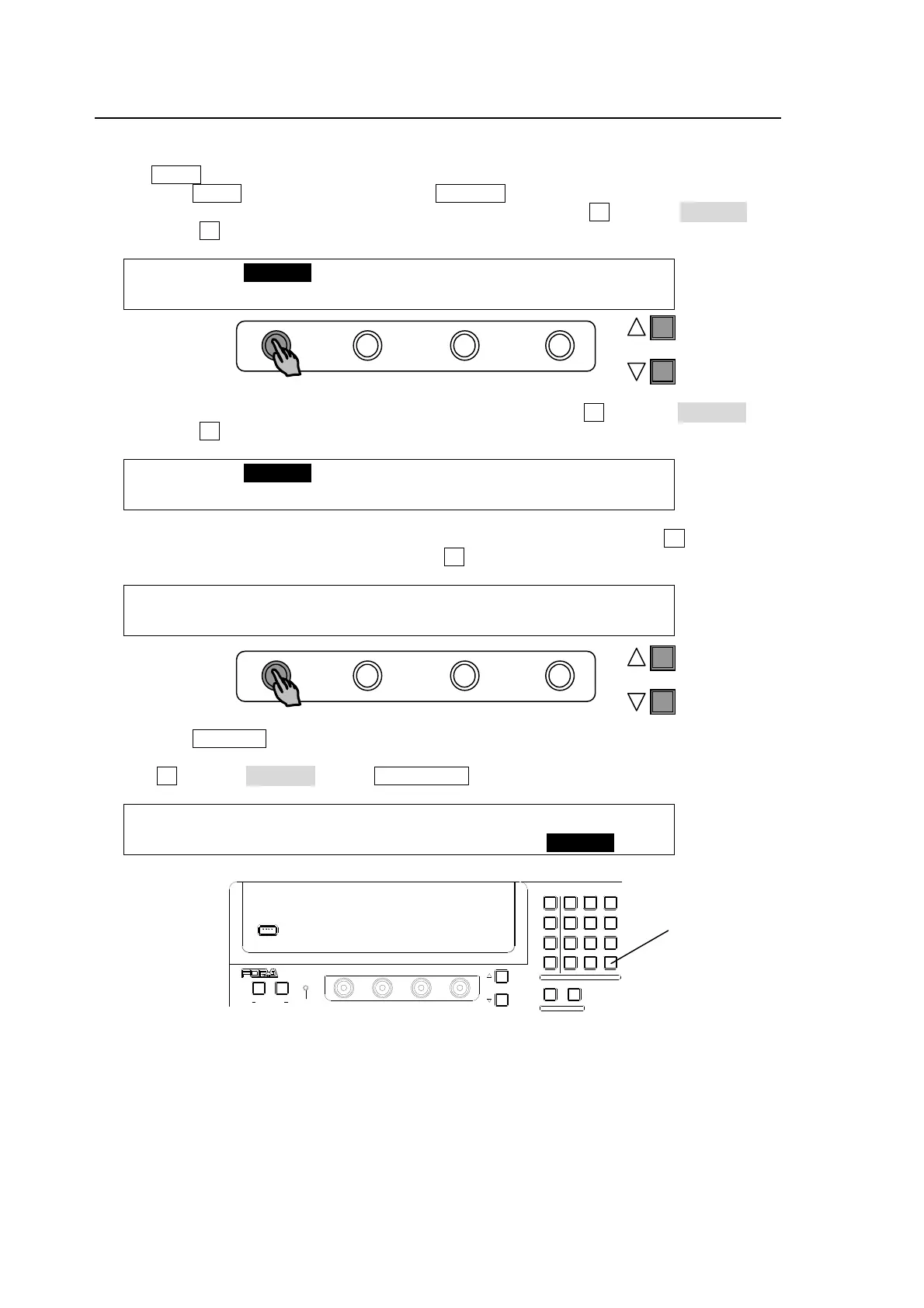

When first switching on your unit, please select a signal format as shown below.
(1) The MENU button at the right of the menu display should be flashing at power ON.
(2) Press the MENU button and then press the 7/SETUP button.
(3) The SETUP menu's top page appears in the menu display. Turn F1 to select SYSTEM and
then press F1.
SETUP :>SYSTEM >INPUT >OUTPUT >PANEL
MENU :>GPI/TLY >FUNCTION >EXT IF >STATUS
(4) The [SETUP - SYSTEM] menu as shown below appears. Turn F1 to select FORMAT and
then press F1.
SETUP :>FORMAT >REF I/O >ARCNET >ETHERNET
SYSTEM :>RS-422 >TIME >INIT >REBOOT
(5) The [SETUP - SYSTEM - FORMAT] menu as shown below appears. Turn F1 to select the
signal format used in the switcher. Then turn F3 to select the aspect ratio.
SYSTEM : FORMAT :ASPECT :SW TMNG: 1/1
FORMAT : =1080/59.94i : =16:9 : =ANY :
(6) Press the PAGE UP button to return to the [SETUP - SYSTEM] menu.
(7) Turn F1 to select REBOOT. Press ENT/STORE in the Keypad block to reboot the switcher.
SETUP :>FORMAT >REF I/O >ARCNET >ETHERNET
SYSTEM :>RS-422 >TIME >INIT >REBOOT
(8) The selected format and aspect are applied after restarting the switcher.
