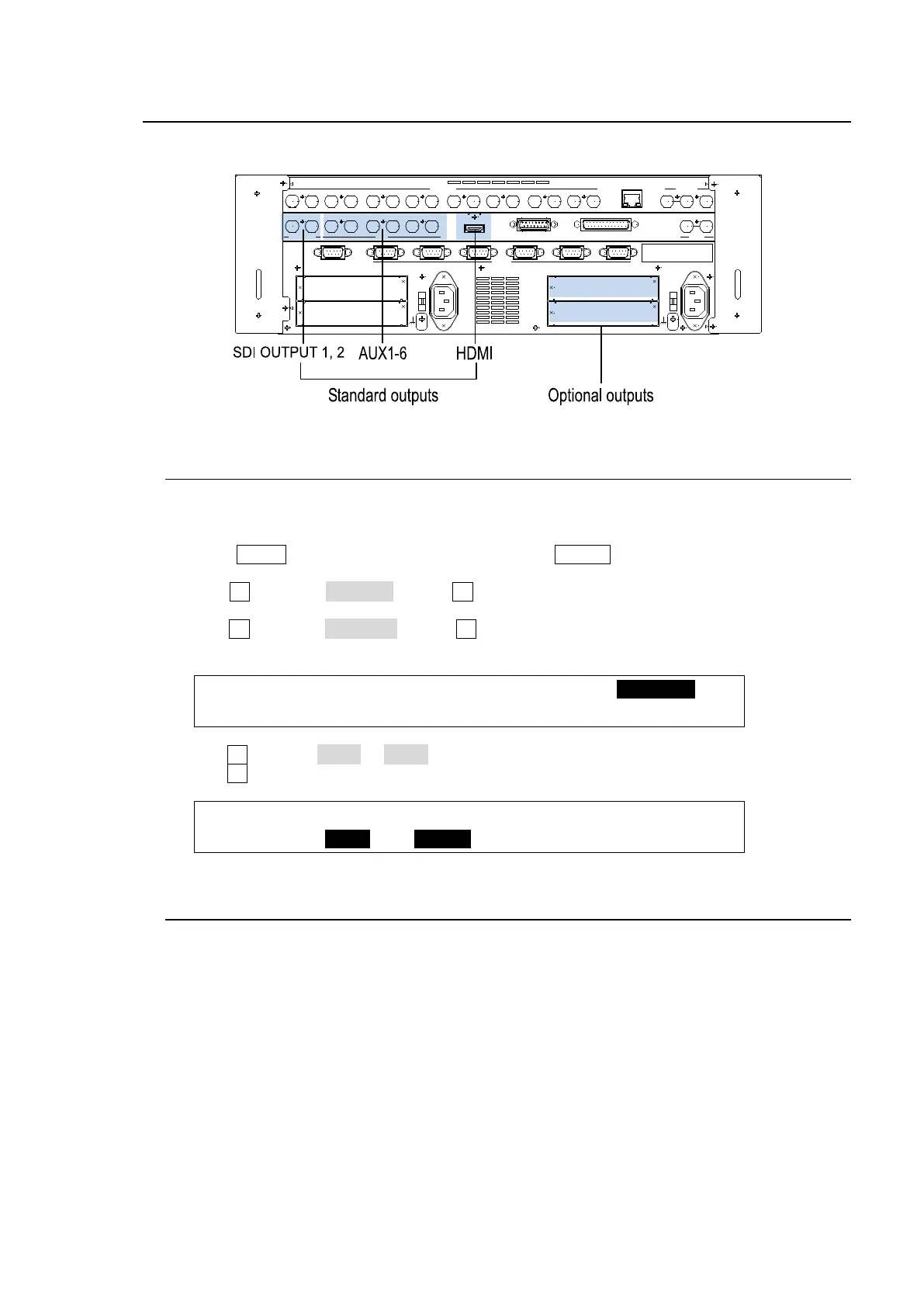

6. Video Outputs
6-1. Selecting Video for SDI OUTPUT1 and 2
SDI OUTPUT1 and 2 on the MU rear panel can output only M/E combined videos. Select videos
for SDI OUTPUT 1 and 2 as shown below.
(1) Press MENU in the CONTROL block, then press SETUP to display the SETUP menu top
page.
(2) Turn F1 to select OUTPUT. Press F1 or the page down button to display the [SETUP -
OUTPUT] menu.
(3) Turn F1 to select OUT XPT. Press F1 or the page down button to display the [SETUP -
OUTPUT - OUT XPT] menu.
SETUP :>MARKER >CLN/PREV>ANCI >OUT XPT
OUTPUT :>MV1 >MV2 >OPTION >RENAME
(4) Turn F1 to select OUT1 or OUT2.
(5) Turn F2 to select a video signal.
OUTPUT :SELECT : XPT :INHIBIT:AUX TRS: 1/4
OUT XPT : =OUT1 : =M1PGM: =--- : =--- :
6-2. How to Select Aux Signals
The AUX output signals can be selected from all bus sources (primary inputs, stills, mattes, etc.),
program, preview, clean and key out signals. There are two procedures to select signals for
auxiliary outputs: via bus buttons or from menu selection. If you want to select a signal easily
and quickly, select the signal in the KEY/AUX bus. If you want to select a signal not assigned to
bus buttons, select it in the menu.
EDITOR
OPTION SLOT
AC100- 240V 50/ 60H z IN
2
RS-422
AUX HDMI GPI INSDI OUTPUT
1 2
A
B
1 2
1 2 3 4 5 6 7 8
SDI INPUT
9 10 11 12 13 14 1615
GPI/TALLY OUT
OPTION SLOT
C
D
1
AC100- 240V 50/ 60H z IN
RATING LABEL
TO OU
GENLOCK
REF I N REF OUT
LAN
1 2 3 4 5 6
3 4 5 6
