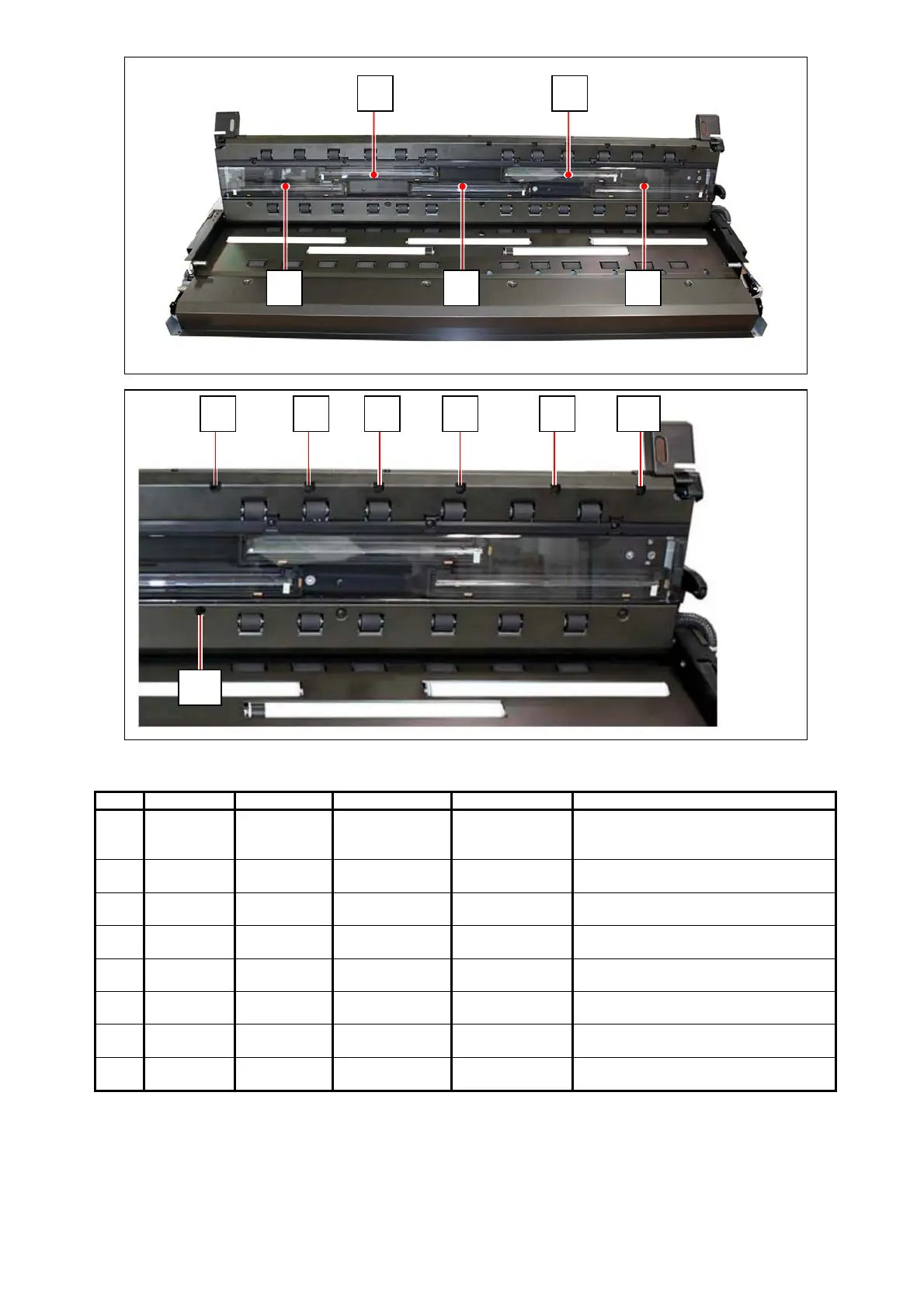

Item Symbol Signal name Name Type Function
4 CIS Sensor FL06G-W07 Reads the image of original, and then
send the analog data to D CON
(Data Controller PCB).
5 S_PH1 Sensor PS122GD4-A Detects the original to be inserted.
Detects original width A4 (Portrait)
6 S_PH2 Sensor PS122GD4-A Detects original widths A4 (Landscape),
A3, 11” and 12”.
7 S_PH3 Sensor PS122GD4-A Detects original widths A2, 17” and 18”.
8 S_PH4 Sensor PS122GD4-A Detects original widths A1, 22” and 24”.
9 S_PH5 Sensor PS122GD4-A Detects original widths A0, 30”, 34”.
10 S_PH6 Sensor PS122GD4-A Detects original widths 36”.
11 S_PH7 Sensor PS122GD4-A Detects the original mis-feed.
44
4 4 4
5 6 7 8 9
11
10
