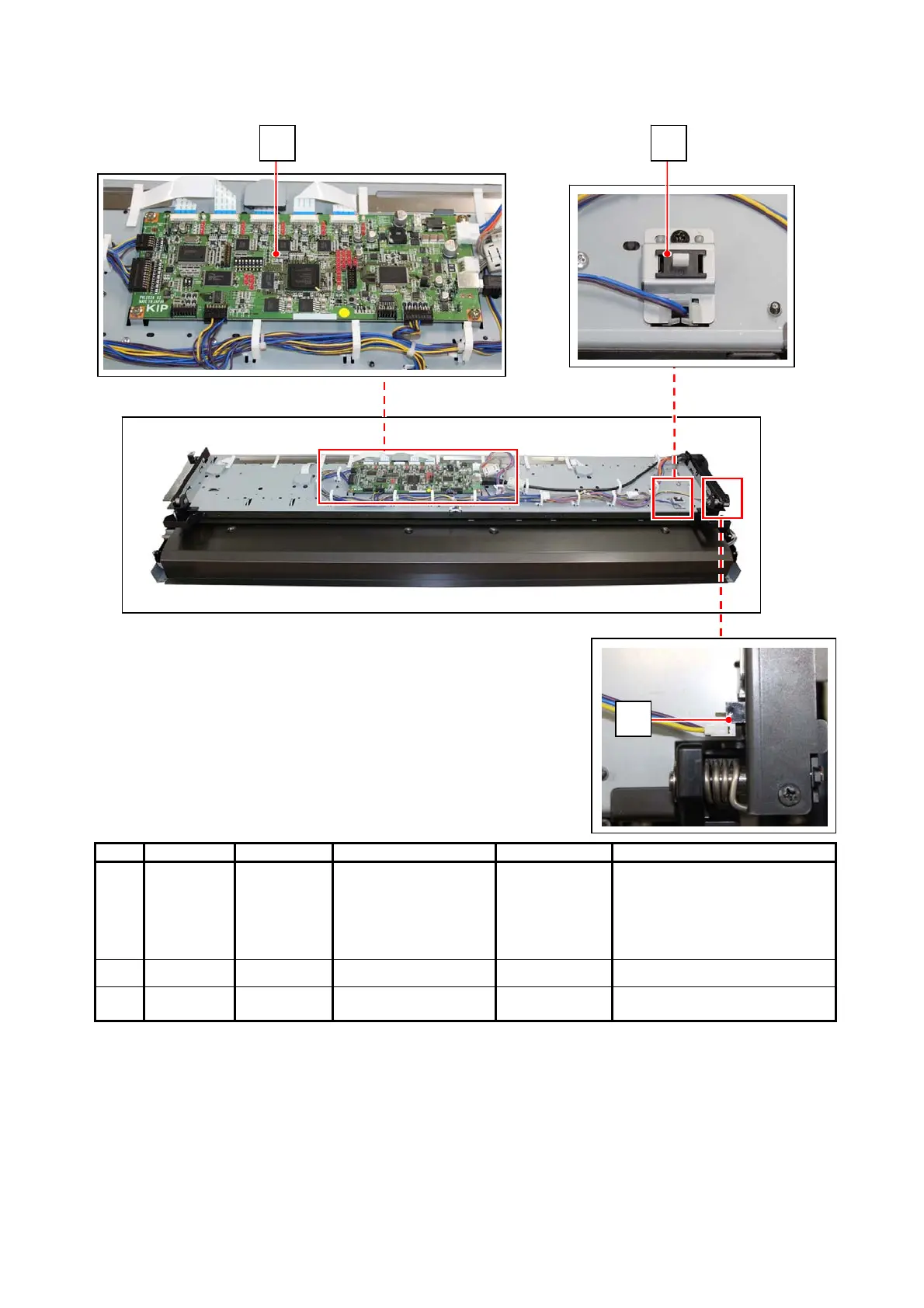

4. 2. 12 Scanner Unit (New Scanner)
Item Symbol Signal name Name Type Function
1 D CON
(Data Controller PCB)
PW12920-02 Makes image processes to the
digital data sent from CIS, and
then sends the processed image
data to KIP Printer.
Converts the analog data read by
the CIS to the digital data
2 S_MS1 Switch CS1A-B2CA Emergent stop button
3 S_PH8 Sensor LG248BL1 Detects whether Upper Unit is
opened.
1 2
3
