KIP 700m - 5. 1. 2 Transfer; Separation Corona Unit

K117sm5e2
5-6
5. 1. 2 Transfer / Separation Corona Unit

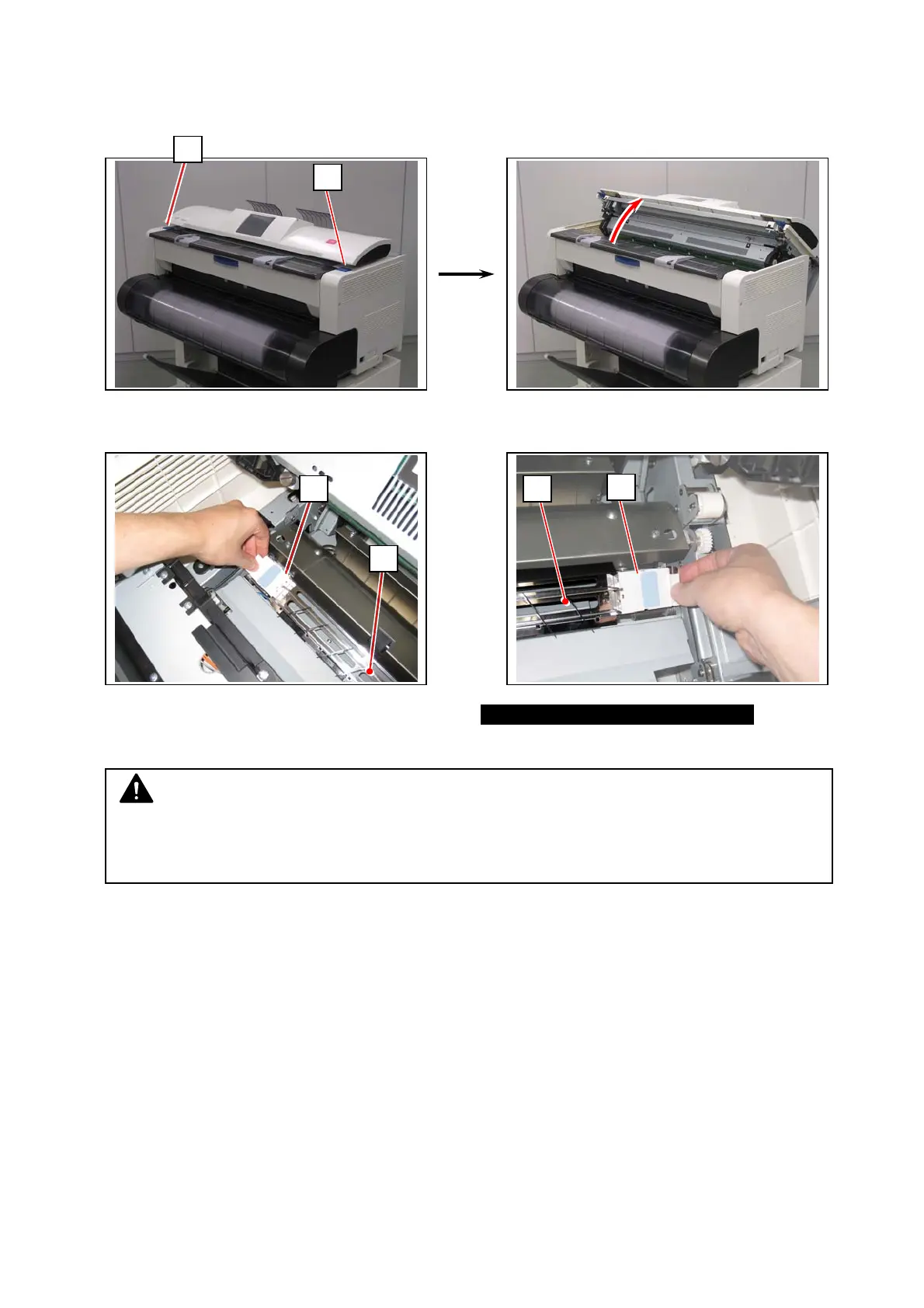

1. Press the blue lever (1) on both sides to open the Upper Unit.
2. Pick the plastic area (2) on both sides.
Pull and remove the Transfer / Separation Corona Unit (3) from the machine.
3. Pick the plastic area (2) on both sides of the new Transfer / Separation Corona Unit.
Lower it in the machine and place it in position.
1
1
NOTE
Again hold the plastic area (2) on both ends to carry the Transfer / Separation Corona Unit.
Grabbing in the middle may deform the housing and cause image defect.
2
2
3
3
