5. 1 Recommended Periodic Replacement
This section describes the procedure of replacing some units that are recommended replacement
for preventive maintenance.
There are “light blue” stickers that show the “access point” for Periodic Replacement.
For detailed information of the Service Kit contents, see Chapter 6.
5. 1. 1 Image Corona Unit

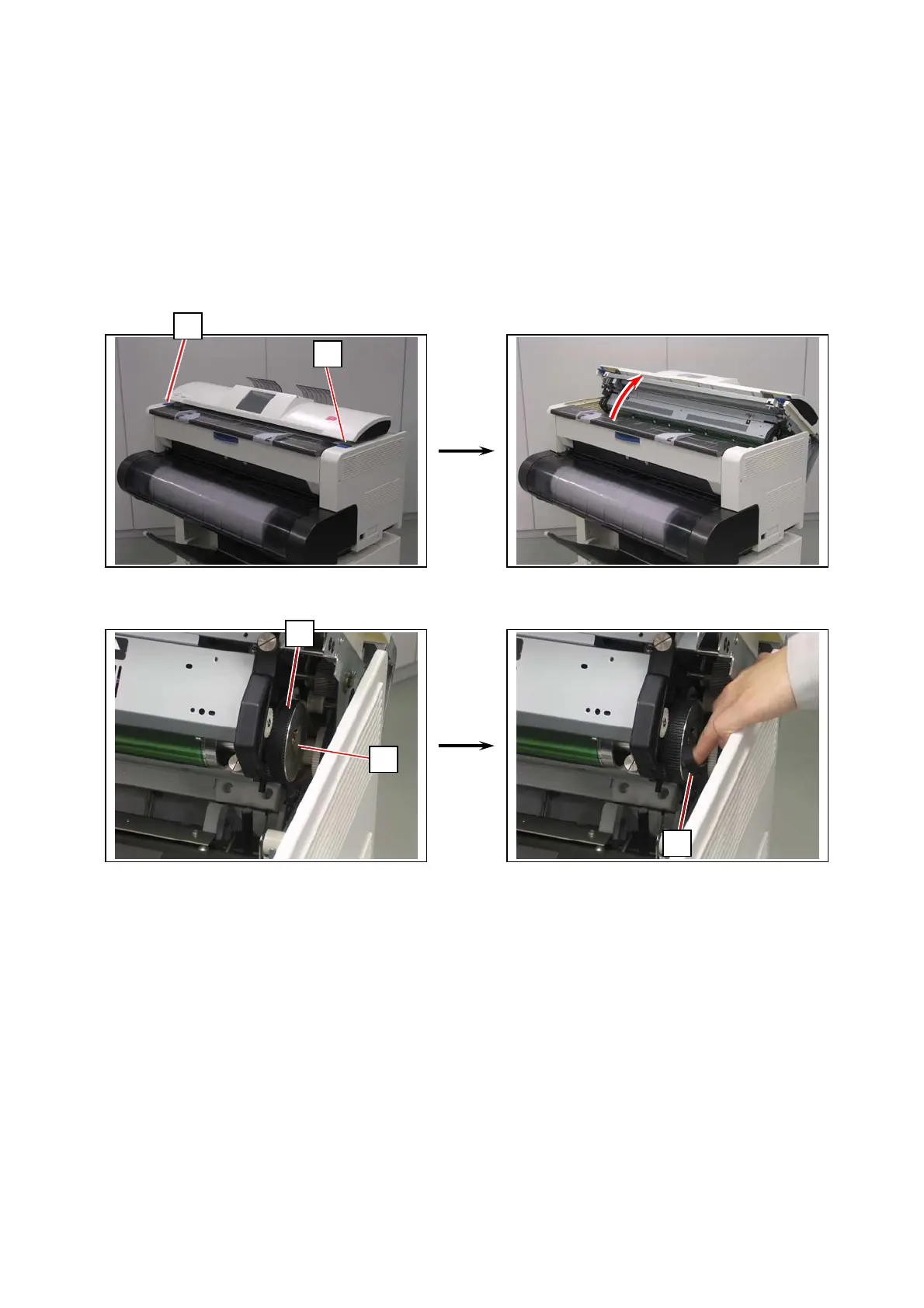

1. Press the blue lever (1) on both sides to open the Upper Unit.
2. Release the belt (2) from the pulley (3).
1
1
2
3
2
