774 to 777 Dot Light Level on Border Pixel
Item No.772 or 773 cannot remove a “less than 1 pixel gap / overlap”.
No.774 to 777 can strengthen or weaken the dot light level data for the border pixels.
These compensate the dot light level programmed the concerning LED Head, not the strobe time.
Decrease the value to weaken the dot light level for a weak black line.
Increase the value to strengthen the dot light level for a weak white line.
Which pixels to be applied which item is as follows.
Item
No.
Setting Item Setting
Range
774 Dot Light Level (Block A/B, border one pixel) 0 to 40
775 Dot Light Level (Block B/C, border one pixel) 0 to 40
776 Dot Light Level (Block A/B, the next pixel to borderl) 0 to 40
777 Dot Light Level (Block B/C, the next pixel to border) 0 to 40

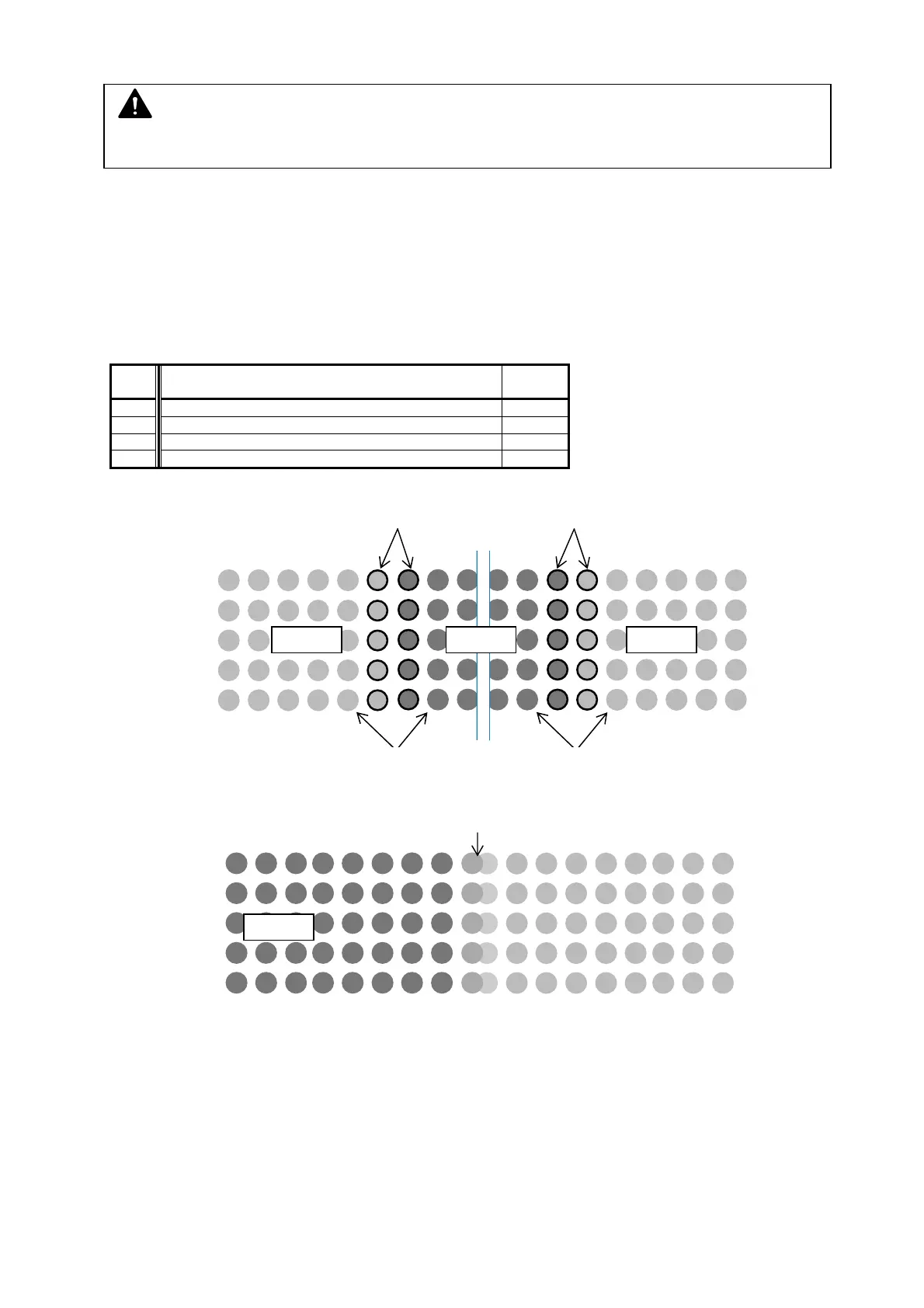

The border pixel No.774 No.775
Block A Block C
The pixel next to the border No.776 No.777
The border B/C is overlapping in less than 1 pixel.
A weaker border may reduce the strength of the overlap image.
NOTE
This setting has been factory-adjusted. Keep the value unchanged.
Block B
Block B
