- The border between Block B/C has a black line. (= Block C displaced in left, overlapping Block B)
Æ Block C should move right to remove overlap with Block B.
black line at Border B/C
In this case, increase No.773 to shift Block C to the right side.

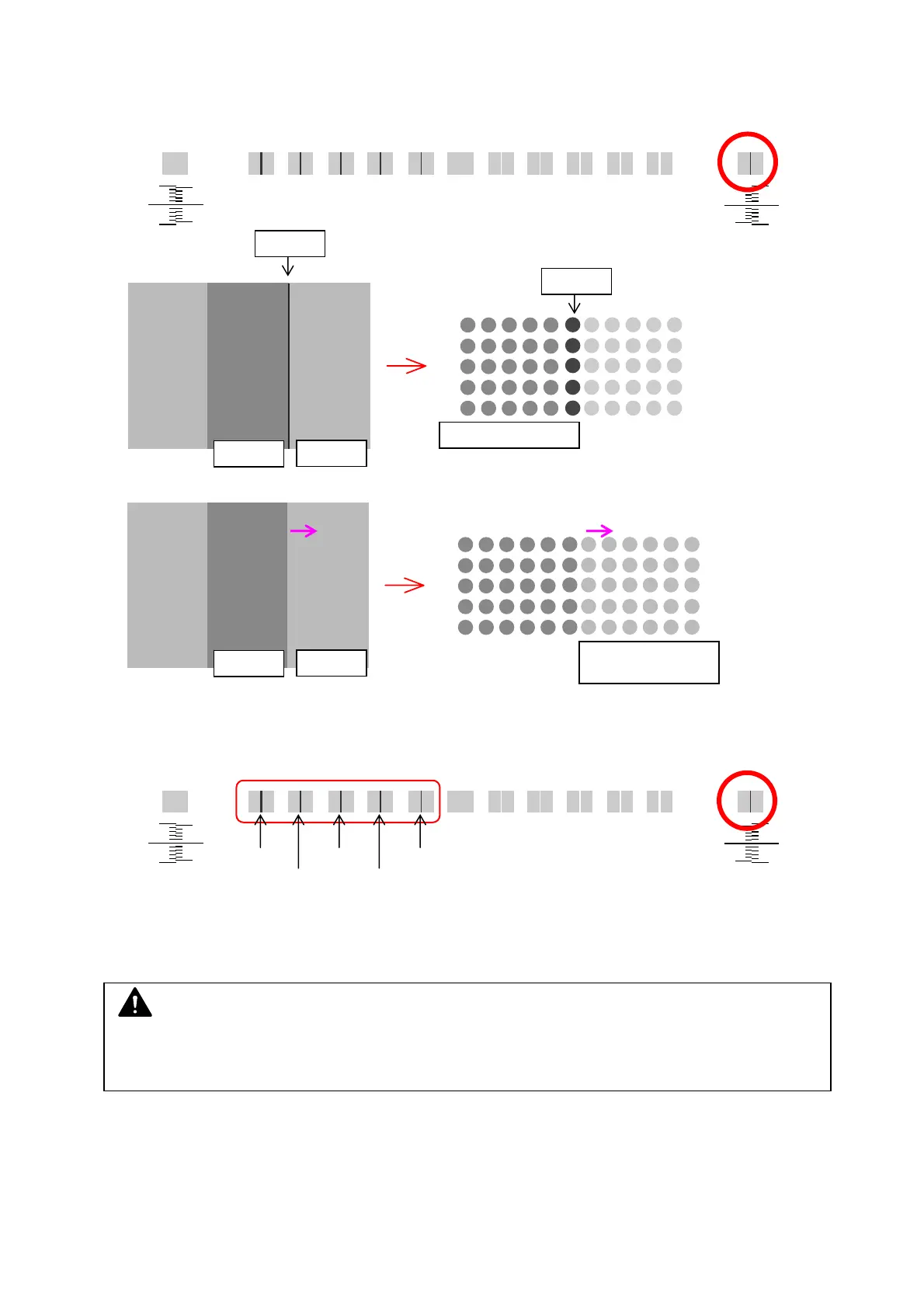

Compare the current border result and the samples, and find how many pixel(s) is overlapping.
overlap samples current result
5 pixels 3 pixels 1 pixel
4 pixels 2 pixels
On the other hand, to remove a white line between Block B/C (= Block C displaced in right, apart
from Block B), decrease No.773 and shift Block C left to touch with Block B.
overlap
Block B
Block C
overlap
Block B
Block C
Block C moves to
right in 1 pixel
Block B: reference
NOTE
For a gap / overlap in less than 1 pixel, see [778, 779 Strobe Time Adjustment on Border
Pixels].
