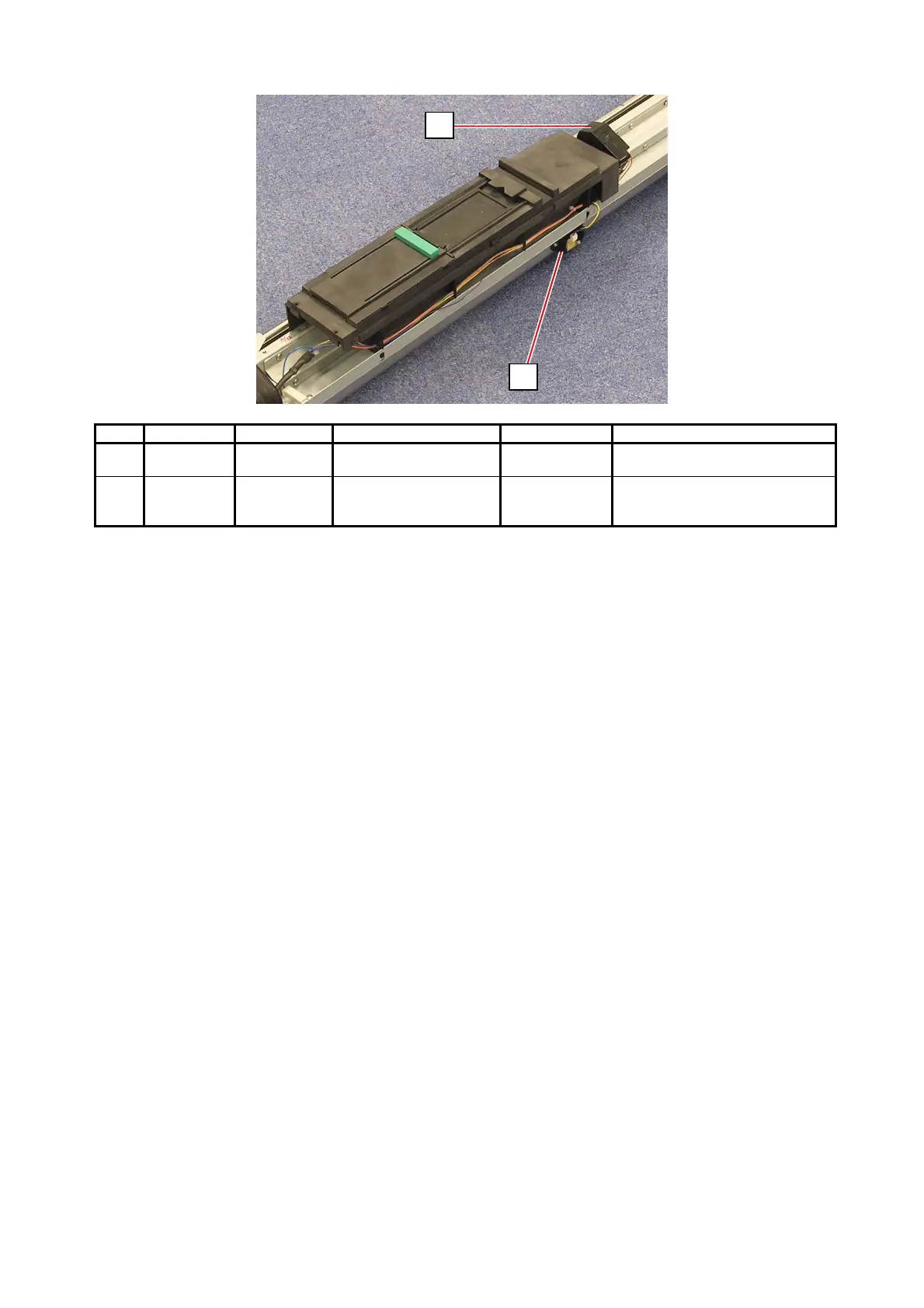

4. 2. 9 Developer Unit
Item Symbol Signal name Name Type Function
1 TLS1 TONER_S Sensor
(Toner Sensor)
TSP15DA10C-
01
Detects whether the toner exists
in the Developer Unit
2 M3 TONER_M DC Motor
(Toner Supply Motor)
DMA-3150A Drives the Toner Hopper to
supply the toner to the Developer
Unit
