KIP 700m - 2. 8 LED Head Assy Setup

K117sm2e3
2-8

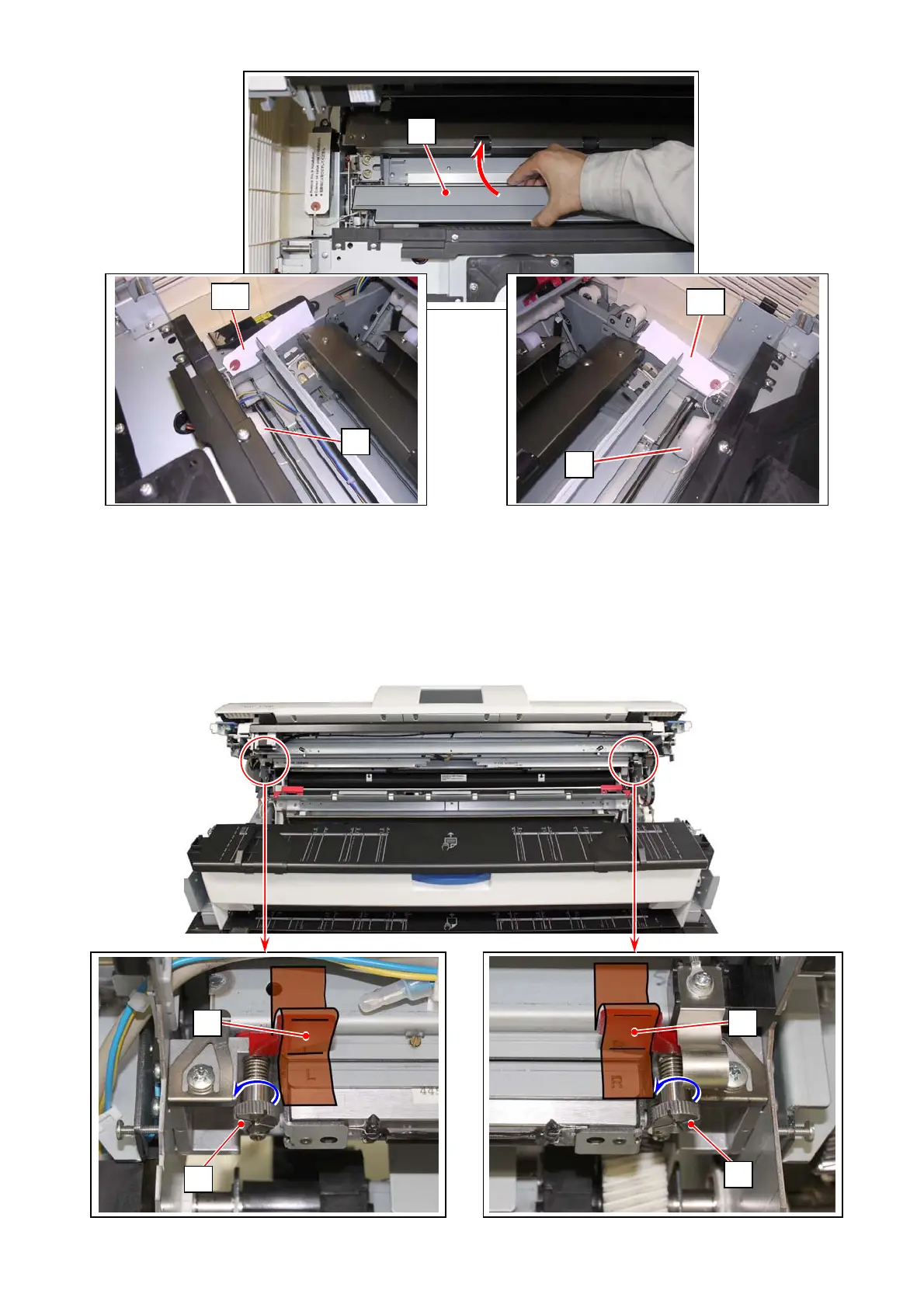

5. Open the Guide Plate (8), and remove the shock absorbers (9) and tags (10) on both sides.
6. Close the Guide Plate (8). Return the Transfer / Separation Corona (7) in position.
2. 8 LED Head Assy Setup
1. Remove 2 tapes. (1)
2. Loosen the thumb screws (2) on both sides to release LED Head Assy.
8
9
10
9
10
2
2
1 1
