2. 7 Inner Feeder Unit Setup

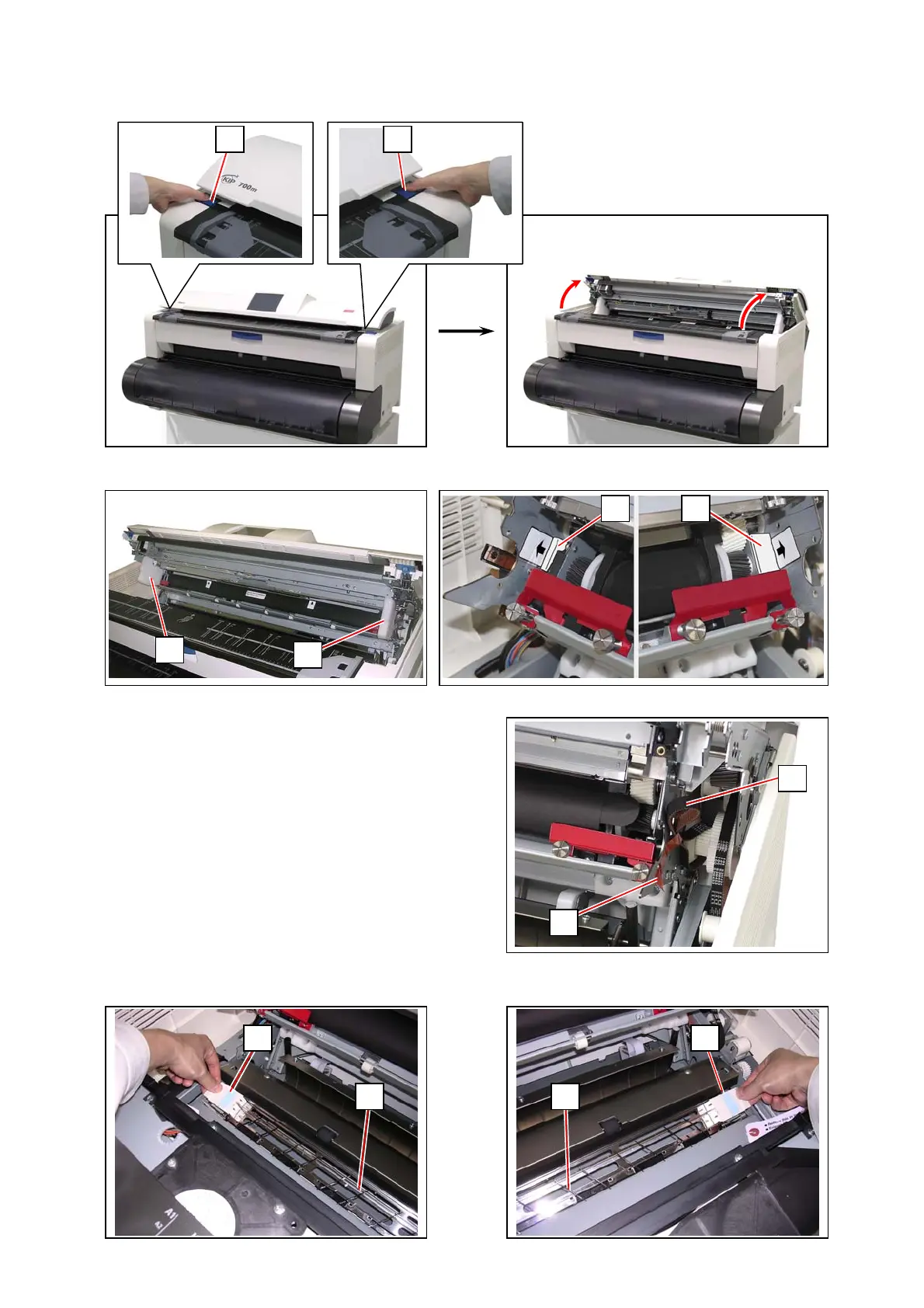

1. Press down the blue levers (1) on both sides to unlock and open the Upper Unit.
2. Remove the shock absorber (2), (3) on both sides.
3. Remove the tape (4) to release the drive belt (5).
4. With holding the Corona Blocks (6) on both sides of the Transfer / Separation Corona (7), lift it up and
take it out from the machine.
