8. 13. 4. 3 Position (stitching)
[Purpose of Position (stitching)]

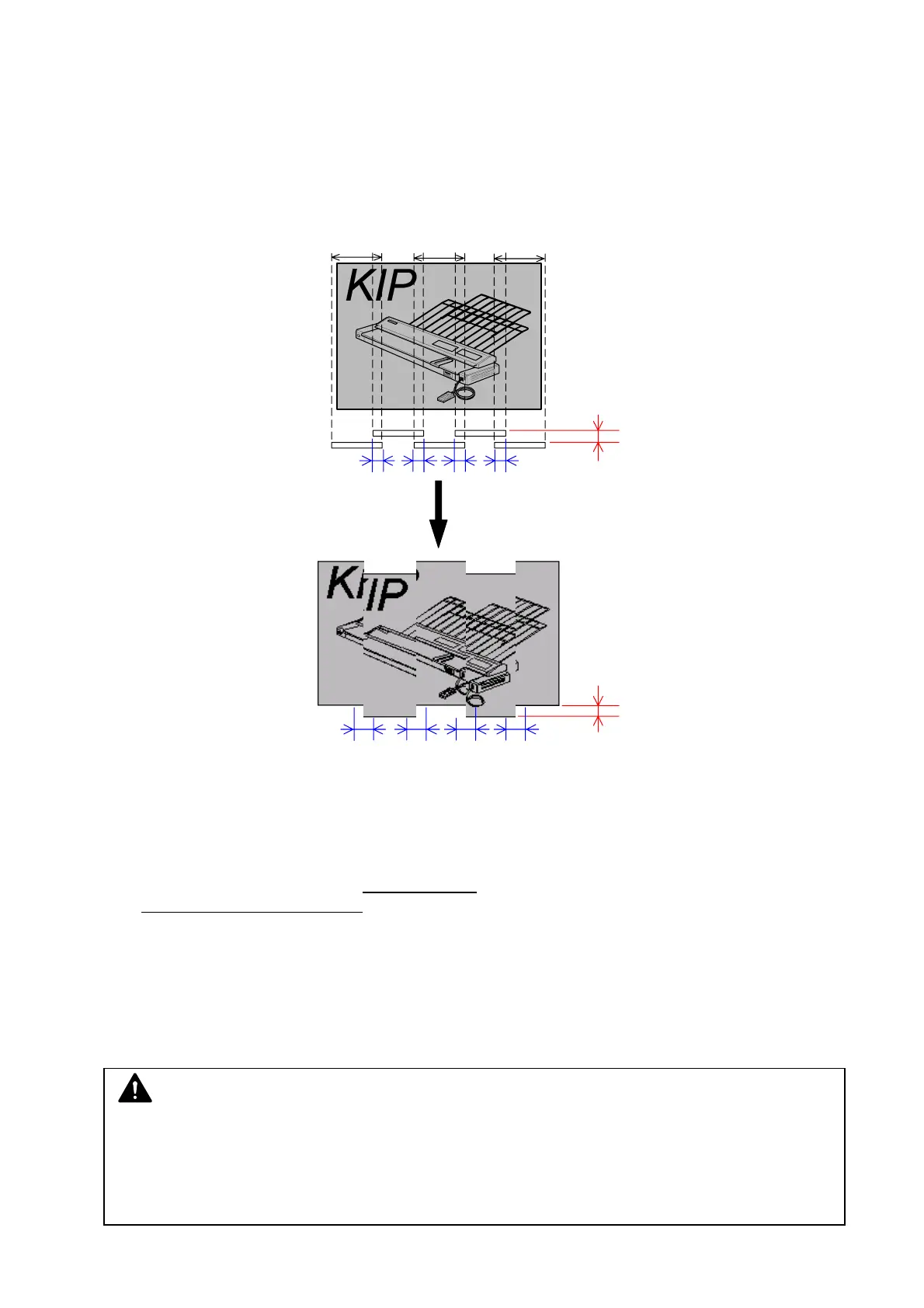

The scanner part of KIP 700m reads the image of original with 5 - CIS (Contact Image Sensor).
As these CIS are arranged in 2 rows, there occurs a vertical gap of image among the image blocks.
Also the reading area of these 5 pieces of CIS overlaps each other some degree. As a result there
occurs the duplication of image between neighboring Image Block (same image is commonly
included in the neighboring two Image Blocks).
“Position” is the solution for these kinds of phenomenon.
It is possible remove the vertical gap of image by vertical positioning process (Y offset).
And it is also possible to remove the duplication of image by horizontal positioning process
(X overlap).
KIP 700m has the function to adjust X/Y positioning
by automatic. After X/Y positioning, adjustment
for the LE (leading edge) positioning
should be performed manually.
[Necessary situation]
Position is required when;
• After replacing;
(1) CIS
(2) Main Board (117)
Gap of CIS position
Overlaps of reading area
Duplications of image
Vertical gap of image
NOTE
(1) Position adjustment should be performed with Stitch Adjustment Chart (P/N: Z168300580).
(2) Position adjustment should be performed with “KIP Scanner Utility 1.23 (or later)”.
No “K105Utility”.
