KIP 700m - 4. 2. 7 Sensor on Media Path

K117sm4e2
4-8

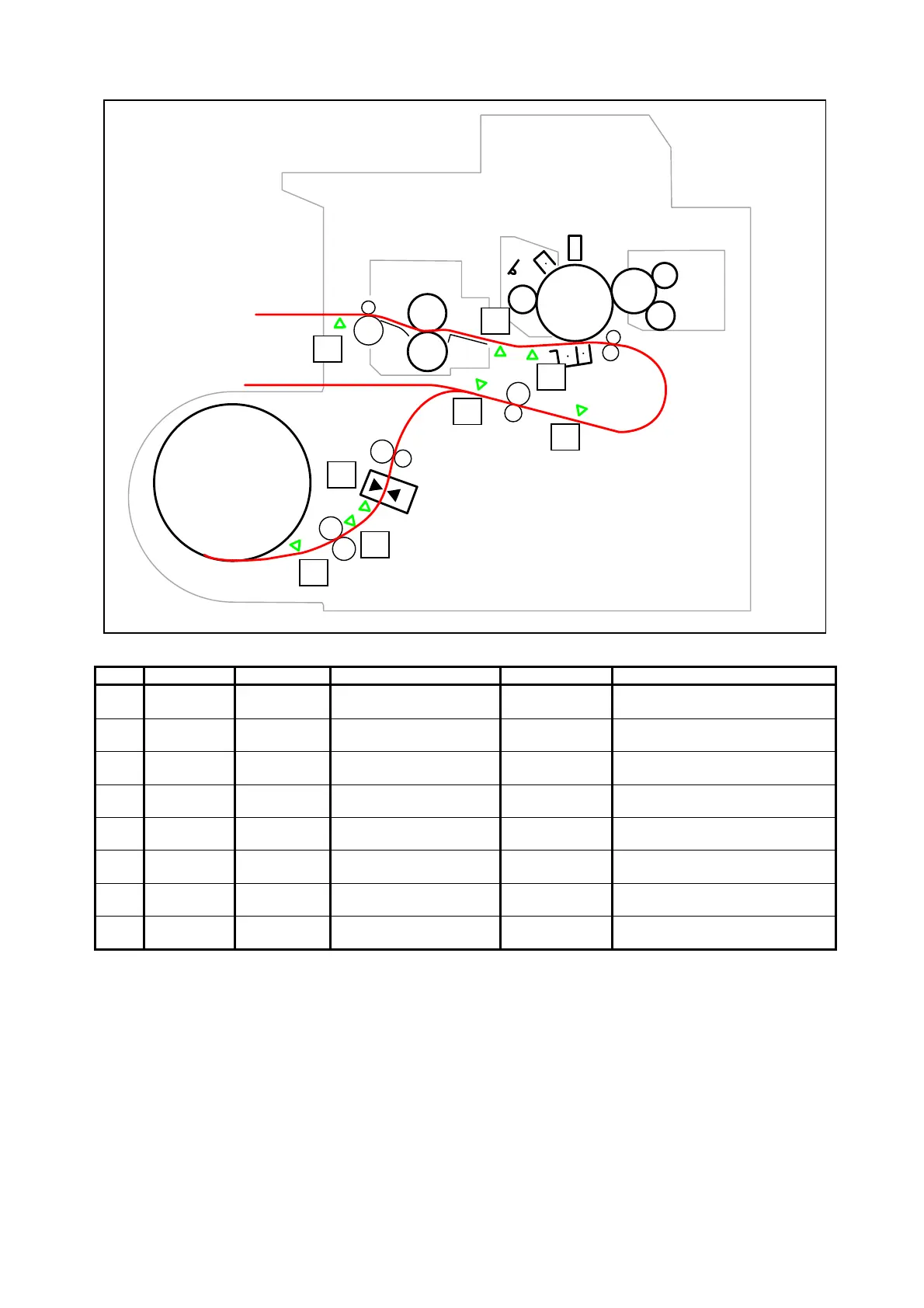

4. 2. 7 Sensor on Media Path
Item Symbol Signal name Name Type Function
1 PH5 R1_SET_S Sensor
(Roll Set Sensor)
PS119ED1 Detects whether the leading
edge is at set position
2 PH4 RENC_S Sensor
(Feed Encoder)
LG248NL1 Detects the distance of the roll
media feeding
3 PH6 R_EDGE Sensor
(Feed Sensor)
PS117ED1 Detects roll media feeding at the
Roll Deck region
4 PH7 MANIN_S Sensor
(Manual Feed Sensor)
PS117ED1 Detects a cut sheet set
5 PH1 REGIST_S Sensor
(Registration Sensor)
PS117ED1 Detects media feeding at the
Registration region
6 PH2 SEPS_S Sensor (Strip /
Separation Sensor)
LG248NL1 Detects media feeding at the
Separation region
7 PH9 GUIDE_S Sensor
(Guide Plate Sensor)
LG248NL1 Detects the Guide Plate’s
position
8 PH3 HEAT_EXIT Sensor
(Exit Sensor)
LG248NL1 Detects media feeding at the
Fuser region
1
2
3
4
5
6
7
8
