KIP 700m - 5. 4 Scanner Unit (for New Scanner); 5. 4. 1 Scan Glass Assy

K117sm5e6
5-68
5. 4 Scanner Unit (for New Scanner)
This section describes the procedure of replacing the individual components of the Scanner Unit.
5. 4. 1 Scan Glass Assy

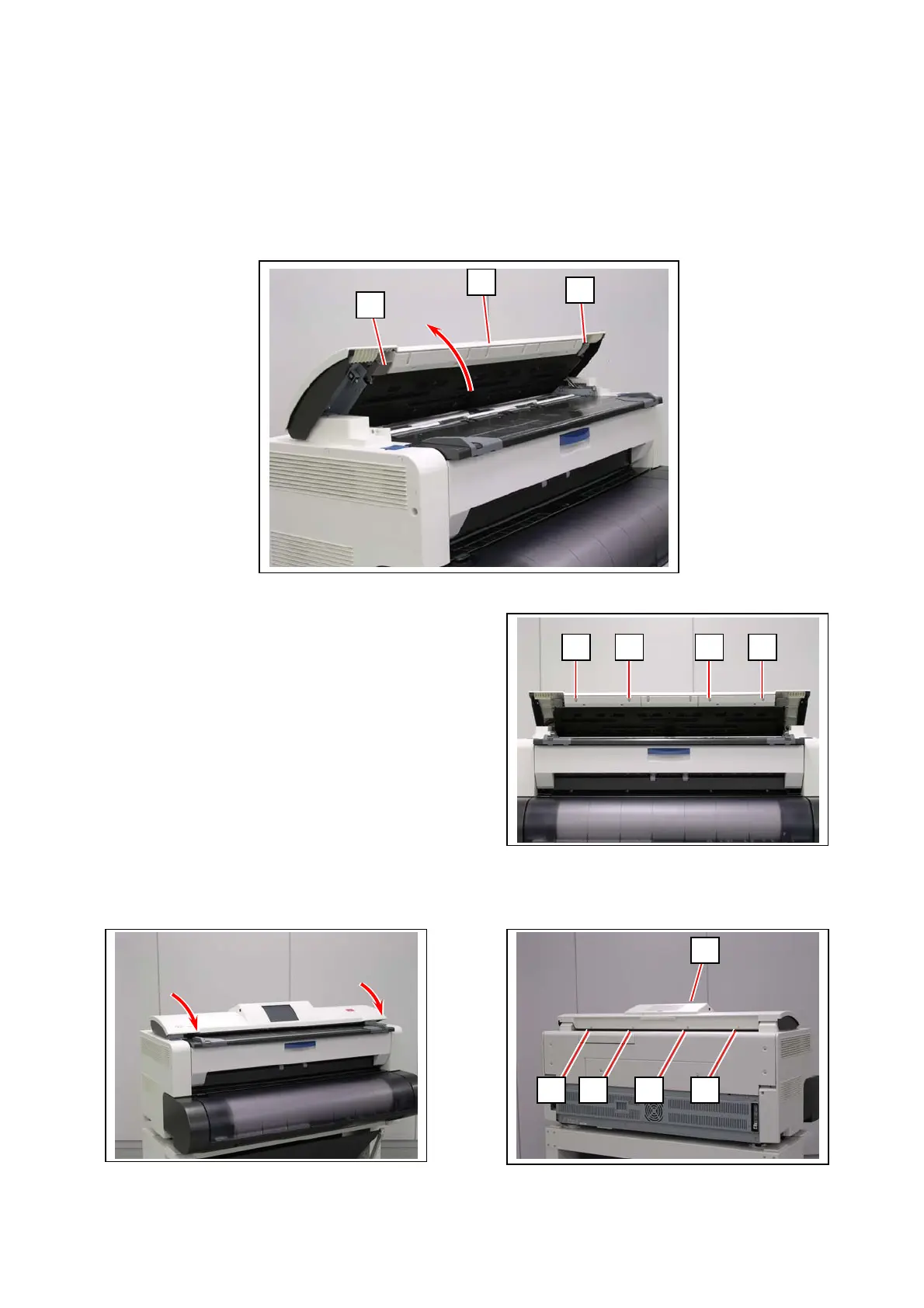

1. Lift up both sides (1) of the Scanner Unit (2).
2. Remove 4 screws (3) on the front.
3. Close the Scanner Unit. Loosen 4 screws (4) to release Scanner Top Cover (5).
4 4 4 4
5
1
1
2
3 3 3 3
