KIP 700m - 3. 2. 2 Data flow in scan and copy (for New Scanner)

K117sm3e1
3-23

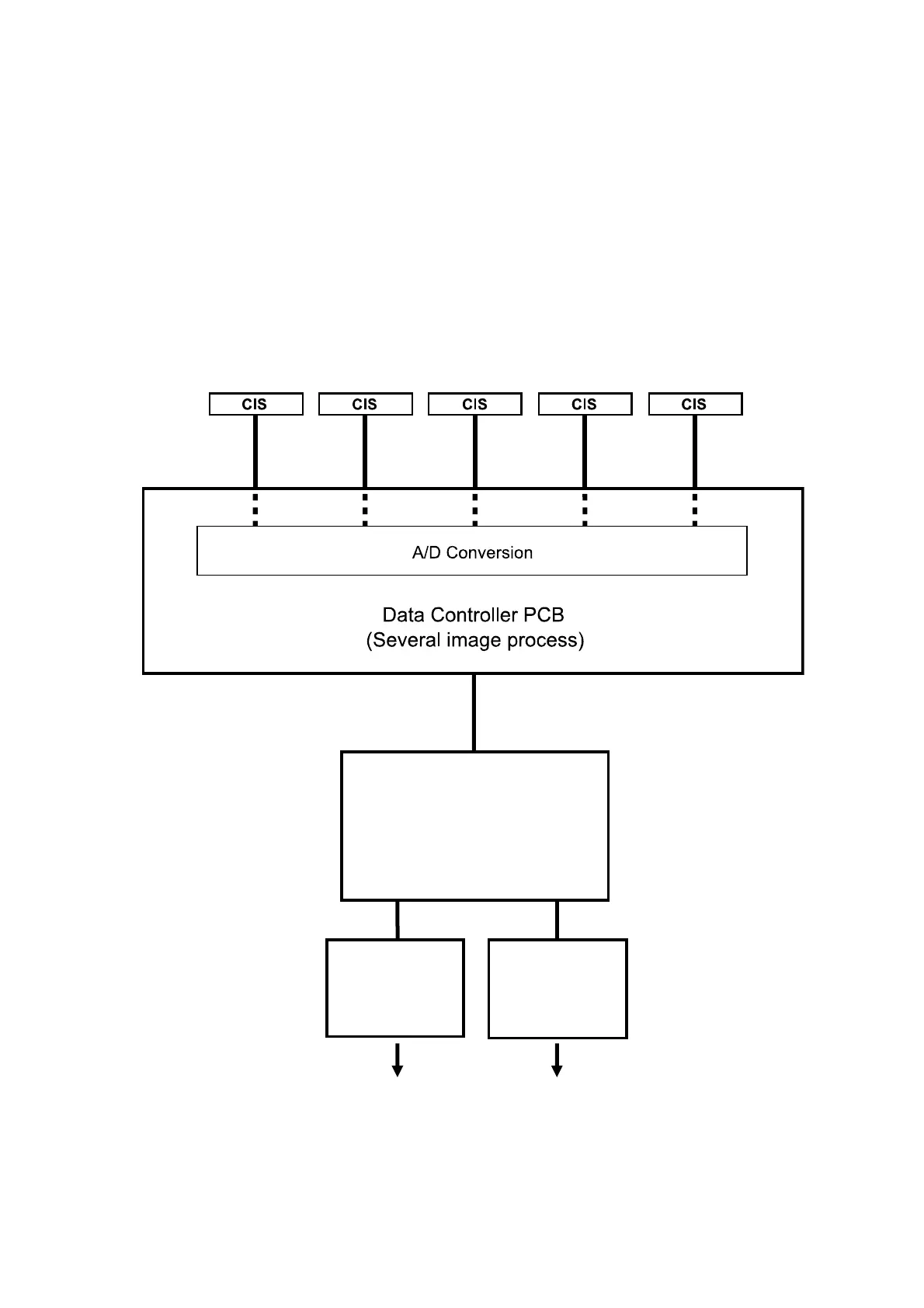

3. 2. 2 Data flow in scan and copy (for New Scanner)
The scanner unit has 5 CIS devices and the Main Board (PW12920).
1. CIS reads the image pattern of original and then send the analog data to the Main Board.
2. The Main Board converts the analog data into digital data.
3. Main Board takes a proper image process according to the settings configured with K129 Diag..
It outputs the image data to the IPS or PC through the USB 2.0.
4. IPS outputs the image data to the KIP printer through the Interface 8 on copy, or it outputs to the
Network PC through the LAN cable on Scan to File.
USB 2.0
Analog data
(converts to Digital Data)
IPS Controller
Interface 8
LAN
Printer part
Network PC /
color printer
Save as File
Print with color printer
Printing out of
the Copy
